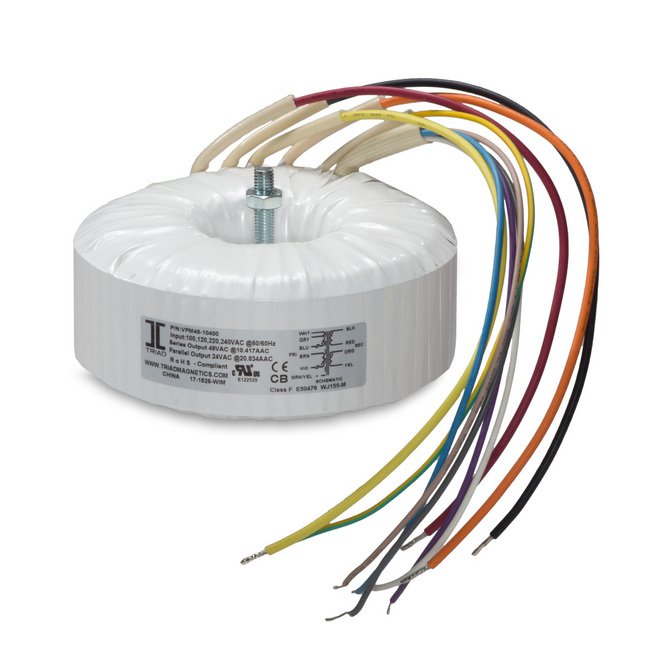

Medical Grade Toroidal Power Transformer - VPM Series
Medical Grade Toroidal Power Transformer - VPM Series
SKU:POW-750702
High-performance medical toroidal transformer with Class F insulation & dual voltage options. Compliant with CE, CRU®US & RoHS standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Medical Grade Toroidal Power Transformer - VPM Series
$299.99
Quantity: 1
Claim Your Seller Account
Medical Grade Toroidal Power Transformer - VPM Series
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1000 Voltage·Ampere (V·A) Power VPM Series Toroidal Medical Transformer is a high-performance transformer designed for medical equipment. With primary voltage options of 100, 120, 220, or 240 VAC and secondary dual voltage for parallel or series connection, this transformer ensures reliable power supply. It features Class F insulation, 4 KV dielectric isolation, low leakage current, and low stray fields, making it ideal for medical applications where safety and efficiency are paramount. This transformer also complies with CE, CRU®US standards and RoHS directives for environmental sustainability.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
1000 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
74 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
183 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
1000 V·A
Specifications Secondary Voltage In Parallel
120 V at 8.34 A
Specifications Secondary Voltage In Series
240 V CT at 4.17 A
Specifications Regulation
3.0 %
Specifications Temperature Rise
50 ºC
Specifications Weight
8.5 kg
