Product Specifications
Optional Configurations

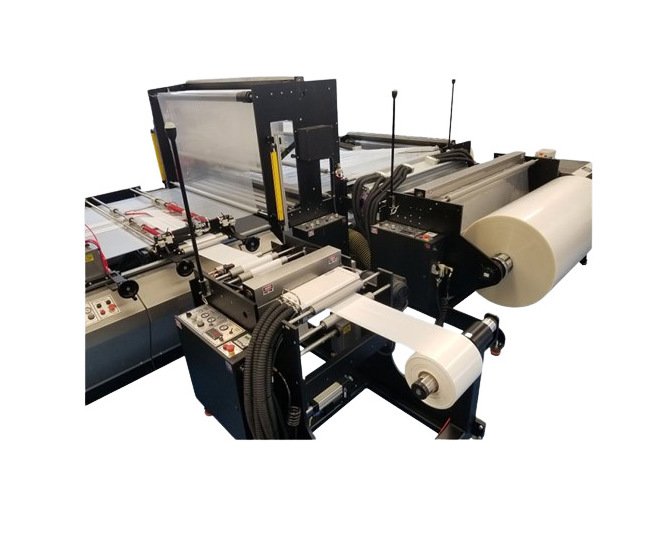

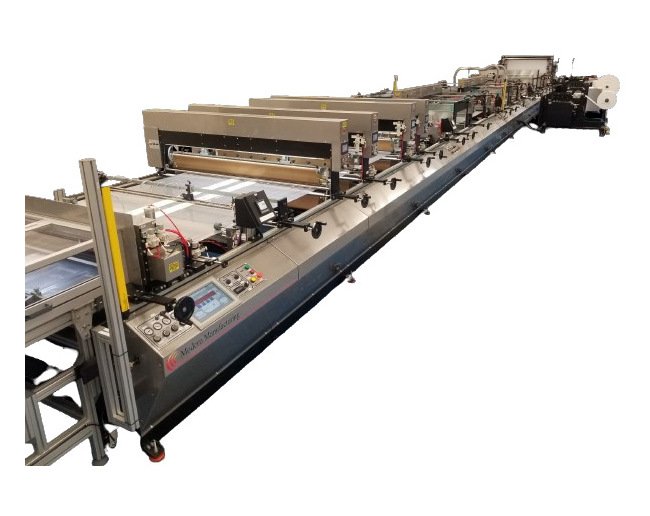

The Modern header bag machine can be equipped to run single or two lane configurations. The machine can be equipped with a five web system to allow multi-layer header bags to be produced.The Modern header bag machine can be configured for either coated Tyvek or coated peel strip films
Standard Configurations

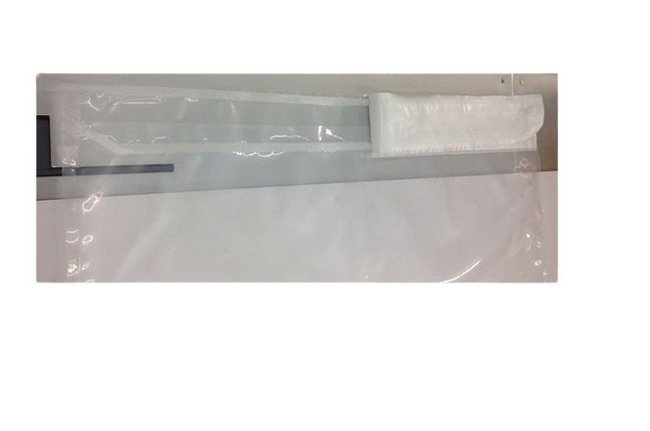

Effective and efficient processing of medical header bags. Our unique sealing technology, and tension control, makes this machine an excellent production machine for medical header bags. A multi-feed system is installed to gain production efficiencies. This high-tech machine offers custom configurations for sterilizable medical breather bags.
Technical Specs Alternative Current Ac Voltage
208 V | 220 V
Technical Specs Current
200 A
Technical Specs Maximum Lay Flat Web Width
36 in | 48 in | 914 mm | 1219 mm
Technical Specs Maximum Pouch Height
36 in | 48 in | 914 mm | 1219 mm
Technical Specs Maximum Pouch Width
18 in | 457 mm
Technical Specs Maximum Roll Diameter
30 in | 762 mm
Technical Specs Mechanical Speed
120 cycles/min
Technical Specs Minimum Pouch Width
3 in | 76 mm
Technical Specs Number Of Servo Drives
0 to 16
Technical Specs Servo Actuated Machine Air Pressure At 90 Pounds
15 ft³/min
Technical Specs Shaped Seal Pouch Making Machine
36 in | 48 in | 914 mm | 1219 mm
Technical Specs Standard Core Size
3 in | 76 mm
