Medical Isolation Power Transformer - 6.38 Inch Length

Medical Isolation Power Transformer - 6.38 Inch Length

POW-a6251f

Enhance efficiency with our 6.38" Medical Grade Isolation Power Transformer - CSA & cULus Listed. Class F insulation.

$399.99
$399.99
Sale

Initiate Order

Medical Isolation Power Transformer - 6.38 Inch Length

Medical Isolation Power Transformer - 6.38 Inch Length

$399.99

Quantity: 1

Claim Your Seller Account

Medical Isolation Power Transformer - 6.38 Inch Length

Medical Isolation Power Transformer - 6.38 Inch Length

$399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

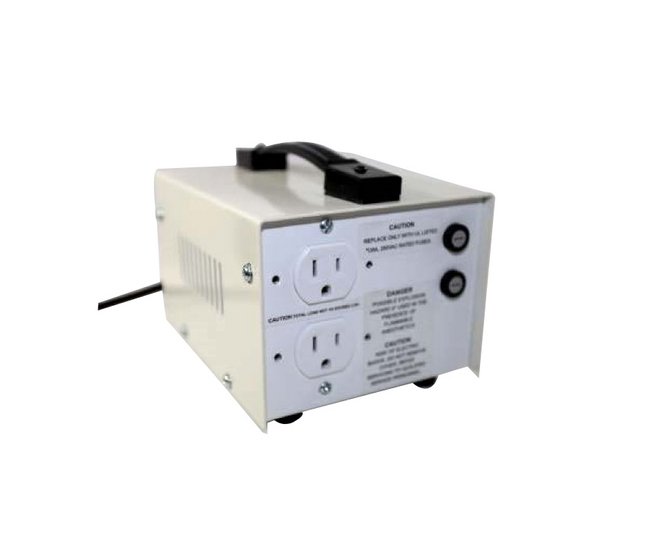

The 6.38-inch Medical Grade Isolation Power Transformer offers superior performance with a toroidal construction, reducing stray fields and enhancing efficiency. It meets Class F insulation standards, ensuring safety and reliability. With a sturdy steel enclosure and white powder coating, this transformer is CSA and cULus Listed and complies with RoHS 2015/863/EU.

Product Specifications

Connections Input Connections
11 ft. Medical Grade Power Cord with NEMA 6-15P Plug.
Connections Output Connections
Duplex Receptacle. NEMA 5-15R.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
1500 V
Electrical Specifications At 25 Degree Celsius C Temperature Fre
50 Hz | 60 Hz

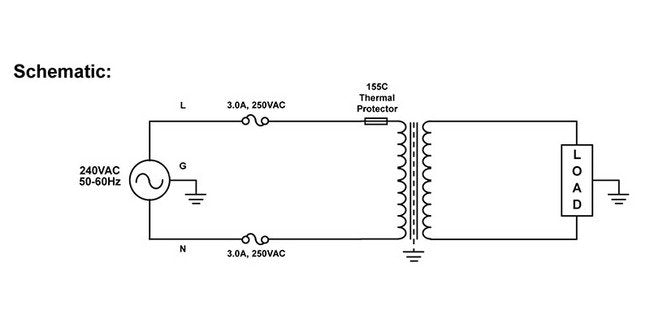

Electrical Specifications At 25 Degree Celsius C Temperature Fus
Replace only with 3.0 A, 250 VAC, Slow Blow, UL Listed Fuses.
Electrical Specifications At 25 Degree Celsius C Temperature Inp
240 V
Electrical Specifications At 25 Degree Celsius C Temperature Lea
Less Than 50 µA
Electrical Specifications At 25 Degree Celsius C Temperature Max
500 V·A
Electrical Specifications At 25 Degree Celsius C Temperature Not
Alternating Current (AC) Output Voltage (Receptacle) at Maximum 4.35 A.
Electrical Specifications At 25 Degree Celsius C Temperature Ope
Not to Exceed 60 ºC
Electrical Specifications At 25 Degree Celsius C Temperature Out
120 V
Electrical Specifications At 25 Degree Celsius C Temperature Typ
10 µA
Note Note
Medical isolation transformer box is certified to UL 60601-1, 2nd edition medical standard and CSA-C22.2.No. 601.1M90, 2005UL: (E352717), UL60601-1, 2nd edition and CAN/CSA-C22.2 No. 601.1M90, 2005Not for use in life critical application.
Specifications Enclosure Color
White
Specifications Enclosure Finish
Powder Coated
Specifications Enclosure Material
Steel

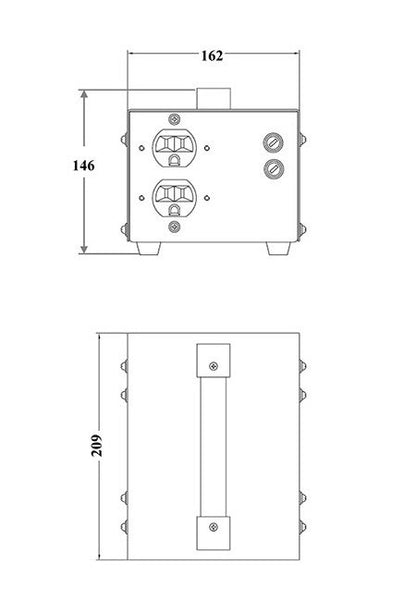

Specifications Height
5.75 in | 146 mm
Specifications Industry Standards
CSA | cULus Listed | RoHS 2015/863/EU
Specifications Insulation Class
Class F (155º)
Specifications Length
6.38 in | 162 mm
Specifications Mounting
Rubber Feet for Horizontal Mounting.
Specifications Safety
Medical
Specifications Warranty
5 years
Specifications Weight
5.5 kg
Specifications Width
8.23 in | 209 mm
