Medical Isolation Power Transformer - 7.17-in Length
Medical Isolation Power Transformer - 7.17-in Length
SKU:POW-a0f849
Enhanced medical isolation power transformer with toroidal construction and Class F insulation, meeting UL and CSA standards.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Medical Isolation Power Transformer - 7.17-in Length
$289.99
Quantity: 1
Claim Your Seller Account
Medical Isolation Power Transformer - 7.17-in Length
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

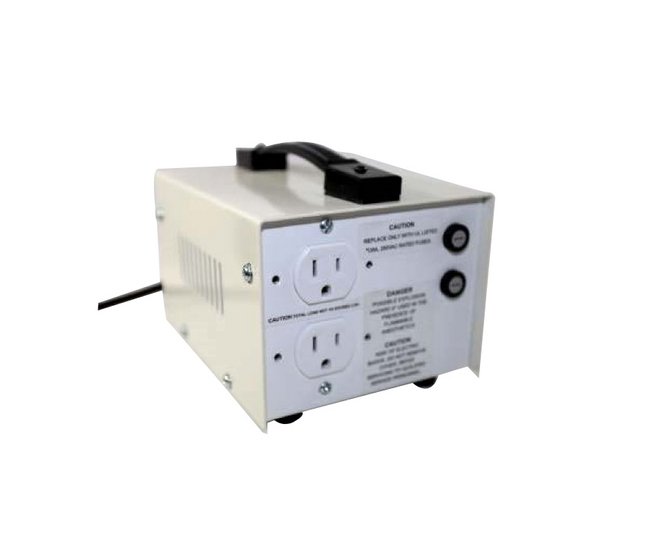

The 7.17-inch Medical Grade Isolation Power Transformer features a toroidal construction for reduced stray fields, increased efficiency, and compact size. With Class F insulation, steel enclosure, and white powder coating, it meets UL 60601-1 2nd edition medical standard and CSA-C22.2.No. 601.1M90. Operating at high efficiency, it offers maximum power of 1000 VA with precise voltage regulation, ensuring safety with multiple certifications.
Product Specifications
Connections Input Connections
11 ft. Medical Grade Power Cord with NEMA 5-15P Plug.
Connections Output Connections
Duplex Receptacle. NEMA 5-15R.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
1500 V
Electrical Specifications At 25 Degree Celsius C Temperature Fre
50 Hz | 60 Hz
Electrical Specifications At 25 Degree Celsius C Temperature Fus

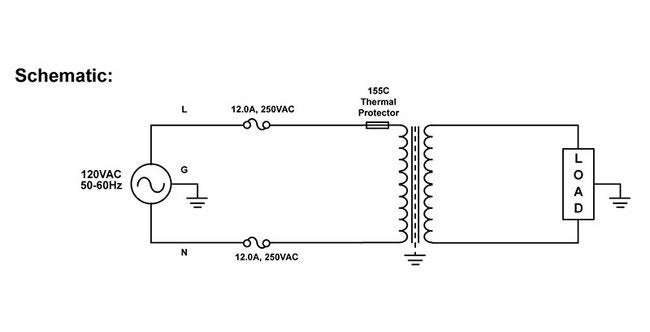

Replace only with 12.0 A, 250 VAC, Slow Blow, UL Listed Fuses.
Electrical Specifications At 25 Degree Celsius C Temperature Inp
120 V
Electrical Specifications At 25 Degree Celsius C Temperature Lea
Less Than 50 µA
Electrical Specifications At 25 Degree Celsius C Temperature Max
1000 V·A
Electrical Specifications At 25 Degree Celsius C Temperature Not
Alternating Current (AC) Output Voltage (Receptacle) at Maximum 8.33 A.
Electrical Specifications At 25 Degree Celsius C Temperature Ope
Not to Exceed 60 ºC
Electrical Specifications At 25 Degree Celsius C Temperature Out
120 V
Electrical Specifications At 25 Degree Celsius C Temperature Typ
10 µA
Note Note
Medical isolation transformer box is certified to UL 60601-1, 2nd edition medical standard and CSA-C22.2.No. 601.1M90, 2005UL: (E352717), UL60601-1, 2nd edition and CAN/CSA-C22.2 No. 601.1M90, 2005Not for use in life critical application.
Specifications Enclosure Color
White
Specifications Enclosure Finish
Powder Coated
Specifications Enclosure Material
Steel

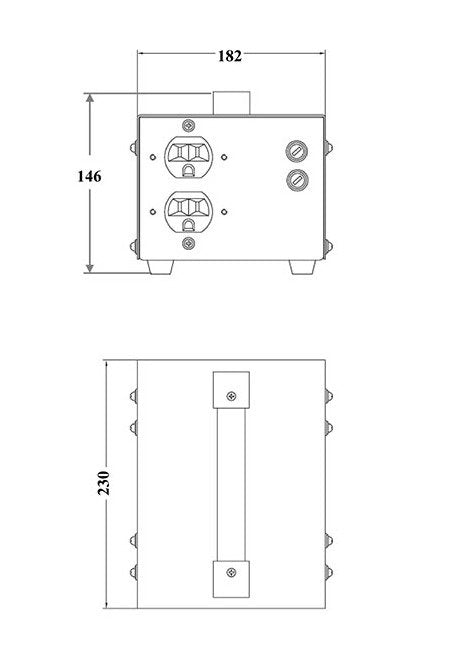

Specifications Height
5.75 in | 146 mm
Specifications Industry Standards
CSA | cULus Listed | RoHS 2015/863/EU
Specifications Insulation Class
Class F (155º)
Specifications Length
7.17 in | 182 mm
Specifications Mounting
Rubber Feet for Horizontal Mounting.
Specifications Safety
Medical
Specifications Warranty
5 years
Specifications Weight
21 kg
Specifications Width
9.06 in | 230 mm
