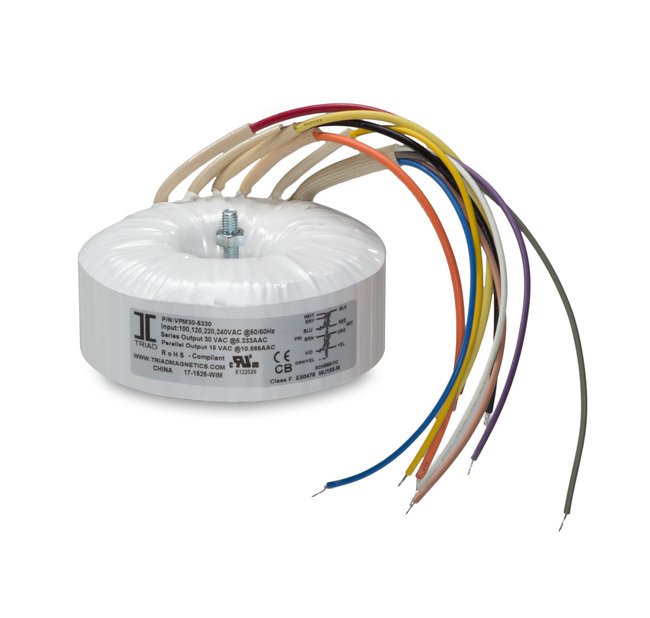

Medical Toroidal Power Transformer - 160 VA VPM Series
Medical Toroidal Power Transformer - 160 VA VPM Series
SKU:POW-c26f81
High-performance 160 V·A Medical Toroidal Power Transformer with dual secondary outputs and Class F insulation for medical equipment applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Medical Toroidal Power Transformer - 160 VA VPM Series
$99.99
Quantity: 1
Claim Your Seller Account
Medical Toroidal Power Transformer - 160 VA VPM Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 160 V·A Power VPM Series Toroidal Medical Transformer is a high-performance solution for medical equipment power needs. With primary voltage options of 100, 120, 220, or 240 VAC, and dual secondary outputs for parallel or series connection, this transformer ensures reliable power supply. Featuring Class F insulation, 4 KV dielectric isolation, low leakage current, and low stray fields, it meets stringent medical safety standards. The compact design with an outside diameter of 113 mm and a weight of 1.8 kg makes it ideal for medical equipment applications requiring efficient power conversion and delivery.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
160 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
52 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
9 V | 18 V
Specifications Outside Diameter
113 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
160 V·A
Specifications Secondary Voltage In Parallel
9.0 V at 17.60 A
Specifications Secondary Voltage In Series
18 V CT at 8.8 A
Specifications Regulation
7.7 %
Specifications Temperature Rise
50 ºC
Specifications Weight
1.8 kg
