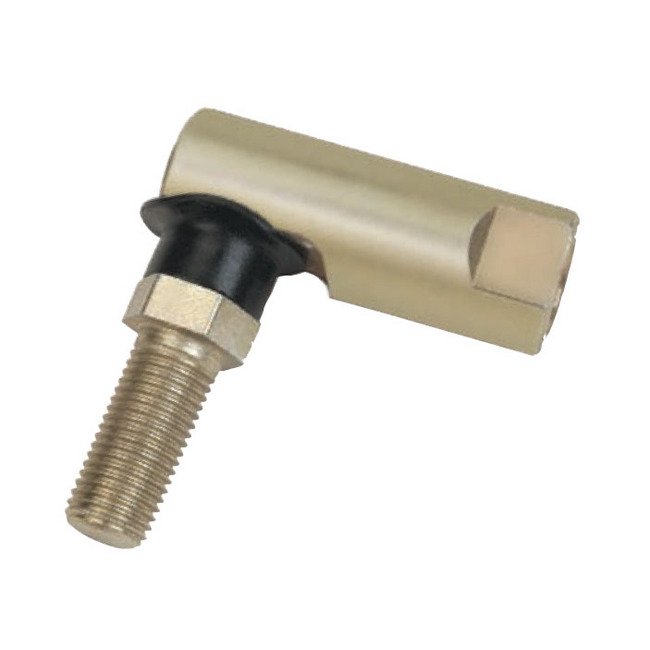

• Medium-Duty Right Hand Rod End with Rubber Grommet - Image 1
  • Medium-Duty Right Hand Rod End with Rubber Grommet - Image 2
1 2
Lexco Cable Manufacturing →

Medium-Duty Right Hand Rod End with Rubber Grommet

Medium-Duty Right Hand Rod End with Rubber Grommet

PUS-1b84e6

Explore our reliable Medium-Duty Right Hand Rod End for durable ball joint applications. Meets SAE J490 standards.

$39.99
$39.99
Sale

Initiate Order

Medium-Duty Right Hand Rod End with Rubber Grommet

Medium-Duty Right Hand Rod End with Rubber Grommet

$39.99

Quantity: 1

Claim Your Seller Account

Medium-Duty Right Hand Rod End with Rubber Grommet

Medium-Duty Right Hand Rod End with Rubber Grommet

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Medium-Duty Right Hand Rod End from the R-G Ball Joints product line is engineered with a steel body and staked ball stud design to provide an economical yet durable solution for medium to heavy-duty ball joint applications. Featuring a case-hardened ball stud for extended wear life and a rubber grommet seal against contaminants, this rod end offers reliability in various integral ball joint applications, including lawn and garden, construction, and industrial equipment. Customizable to meet specific requirements, this rod end meets SAE specification J490 (Type G/Style 2) and is designed to withstand temperatures ranging from -30 ºF to 250 ºF.

Product Specifications

Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

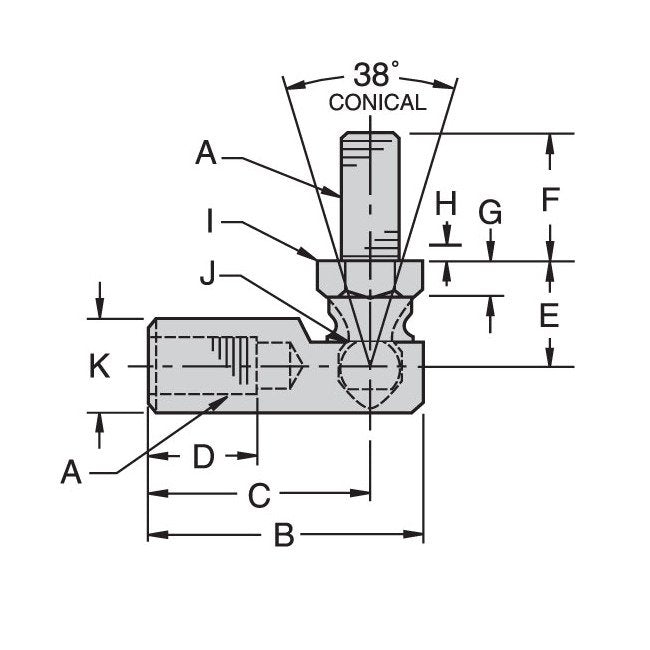

Specifications A Unf
7/16-20 "
Specifications B 0020
2.375 "
Specifications C 0020
1.937 "
Specifications D Min
1.125 "
Specifications E 0020
0.875 "
Specifications Force To Remove Ball Stud
2700 lb
Specifications F 0020
1.125 "
Specifications G Ref
0.250 "
Specifications H Ref
0.125 "
Specifications I Ref
0.625 "
Specifications J Ref
0.412 "
Specifications K Ref
0.750 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
3390 lb
Specifications Wrench Flat Length
0.375 "
Specifications Wrench Flat Width
0.625 "
