Medium Pressure Connection Sleeve - QS Series
Medium Pressure Connection Sleeve - QS Series
SKU:BEL-d22b27
Seamless integration with 3/4 inch tube size in high-pressure systems. Durable, efficient, and compliant for versatile applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Medium Pressure Connection Sleeve - QS Series
$29.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Connection Sleeve - QS Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The QS Medium Pressure Connection Sleeve is designed for seamless integration within high-pressure systems, featuring a tube size of 3/4 inch for optimal performance. Crafted with precision engineering, this sleeve ensures secure connections and reliable operation, meeting stringent industry standards. Ideal for high-pressure fittings and tubing applications, this component offers durability, efficiency, and compatibility with a wide range of systems, making it a trusted choice for both consumer and institutional buyers.
Product Specifications

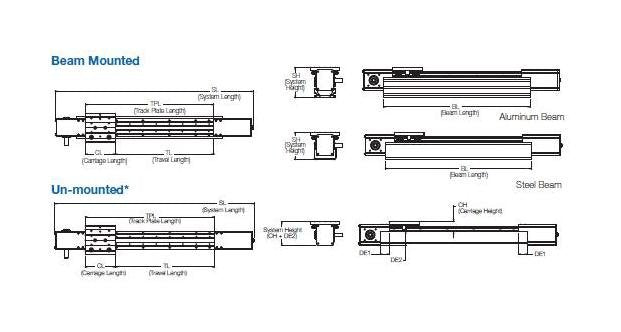

Basic Wheel Plate Dimensions Basic Wheel Plate Beam Length Bl Be
TL+350.0 mm | TL+13.780 in

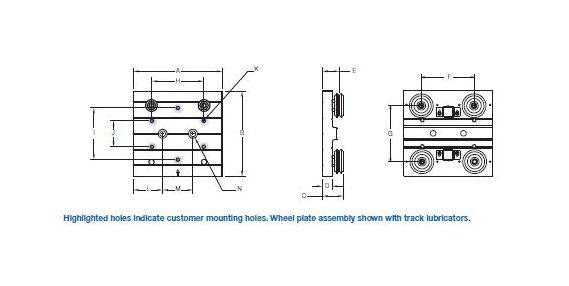

Basic Wheel Plate Dimensions Basic Wheel Plate Carriage Height C
69.0 mm | 2.718 in
Basic Wheel Plate Dimensions Basic Wheel Plate Drive End Cutout
75.0 mm | 2.953 in
Basic Wheel Plate Dimensions Basic Wheel Plate System Height Sh
144.0 mm | 5.671 in
Basic Wheel Plate Dimensions Basic Wheel Plate System Inertia J
2530 mm² X M | 3.93 in² X M
Basic Wheel Plate Dimensions Basic Wheel Plate System Length Sl
TPL+440.9 mm | TPL+17.358 in
Basic Wheel Plate Dimensions Basic Wheel Plate Track Plate Lengt
TL+242.0 mm | TL+9.528 in
Basic Wheel Plate Option Dimensions Basic Wheel Plate Options Pa
BWP4XSWWCBC

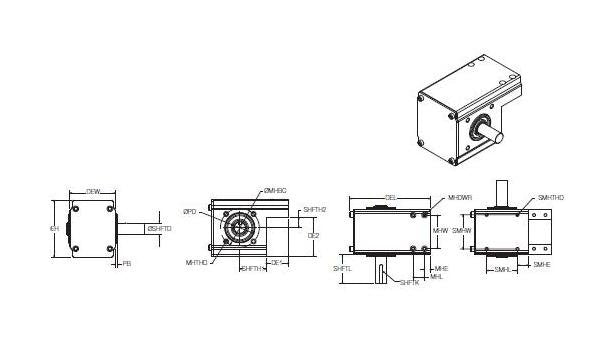

Drive End Dimensions Drive End Cutout Height De2
75.0 mm | 2.953 in
Drive End Dimensions Drive End Cutout Width De1
54.0 mm | 2.126 in
Drive End Dimensions Drive End Height Deh
128.0 mm | 5.039 in
Drive End Dimensions Drive End Length Del
183.2 mm | 7.212 in
Drive End Dimensions Drive End Mounting Hardware Mhdwr
M8 X 55 mm MIN
Drive End Dimensions Drive End Mounting Holes Width Mhw
111.0 mm | 4.370 in
Drive End Dimensions Drive End Width Dew
140.0 mm | 5.512 in
Drive End Dimensions Shaft Diameter Shftd
20.0 mm | 0.787 in
Drive End Dimensions Shaft Length Shftl
50.1 mm | 1.973 in
Drive End Dimensions Shaft Locations Shfth1
59.0 mm | 2.323 in
Drive End Dimensions Shaft Locations Shfth2
11.0 mm | 0.434 in
Drive End Dimensions Shaft Square Key Size Shftk
6.0 mm
Lopro System Belt Load Capacities Belt Size
32AT10
Specifications System Size
4
Steel Support Beam Dimensions Part Number Of Steel Support Beam
LP4BSB
Wiper Wheel Plate Dimensions Wiper Wheel Plate Beam Length Bl Be
TL+351.8 mm | TL+13.852 in
Wiper Wheel Plate Dimensions Wiper Wheel Plate Carriage Height C
55.0 mm | 2.167 in
Wiper Wheel Plate Dimensions Wiper Wheel Plate Drive End Cutout
75.0 mm | 2.953 in
Wiper Wheel Plate Dimensions Wiper Wheel Plate System Height Sh
130.0 mm | 5.120 in
Wiper Wheel Plate Dimensions Wiper Wheel Plate System Inertia J
2530 mm² X M | 3.93 in² X M
Wiper Wheel Plate Dimensions Wiper Wheel Plate System Length Sl
TPL+440.9 mm | TPL+17.358 in
Wiper Wheel Plate Dimensions Wiper Wheel Plate Track Plate Lengt
TL+243.8 mm | TL+9.600 in
Wiper Wheel Plate Option Dimensions Wiper Wheel Plate Options Pa
LP4WPADG
