Medium Pressure Fluoro-Elastomer Test Plug with By-Pass - 146-9 Series
Medium Pressure Fluoro-Elastomer Test Plug with By-Pass - 146-9 Series
SKU:HIG-7366f5
The 146-9 Series Bolt Type Test Plug offers reliable medium-pressure testing up to 100 psig with a Nitrile seal for hydrocarbon resistance. Customizable for various configurations.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Medium Pressure Fluoro-Elastomer Test Plug with By-Pass - 146-9 Series
$79.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Fluoro-Elastomer Test Plug with By-Pass - 146-9 Series
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass ensures simple, reliable testing of pipelines up to 100 psig | 7 bar. Designed to prevent tube wall damage, this plug features a Nitrile seal for hydrocarbon resistance. Customizable with various seal materials and configurations to meet specific requirements. Safety warnings and guidelines ensure proper usage to prevent property damage or injury.
Product Specifications

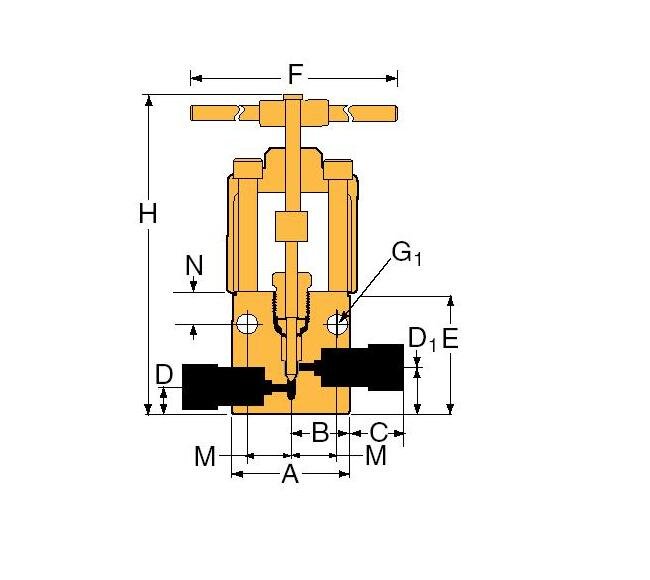

Specifications A Width
4.13 in | 104.78 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.39 mm
Specifications Connection Type
SF1000CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D1 Height
1.88 in | 47.75 mm
Specifications D Height
0.88 in | 22.10 mm
Specifications E Height
4.13 in | 104.78 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
10.00 in | 254.00 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.13 in | 28.58 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
3.15
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
