Medium Pressure Fluoro-Elastomer Test Plug with By-Pass - 146-9 Series
Medium Pressure Fluoro-Elastomer Test Plug with By-Pass - 146-9 Series
SKU:HIG-97288d
Reliable testing solution for 4.45" pipelines, customizable with various seal materials for diverse requirements.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Medium Pressure Fluoro-Elastomer Test Plug with By-Pass - 146-9 Series
$89.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Fluoro-Elastomer Test Plug with By-Pass - 146-9 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Medium Pressure Fluoro-Elastomer Test Plug with By-Pass, part of the 146-9 Series, offers a reliable testing solution for pipelines with a minimum inside diameter of 4.45 inches. Built with high-quality materials such as plated carbon steel and Nitrile seals for hydrocarbon resistance, this plug ensures secure testing up to 40 psig. Its versatile design allows for customization with various seal materials, offering flexibility for different pressure, temperature, and chemical requirements. Safety precautions are emphasized to prevent property damage or injury, making it a dependable choice for pipeline testing applications.
Product Specifications

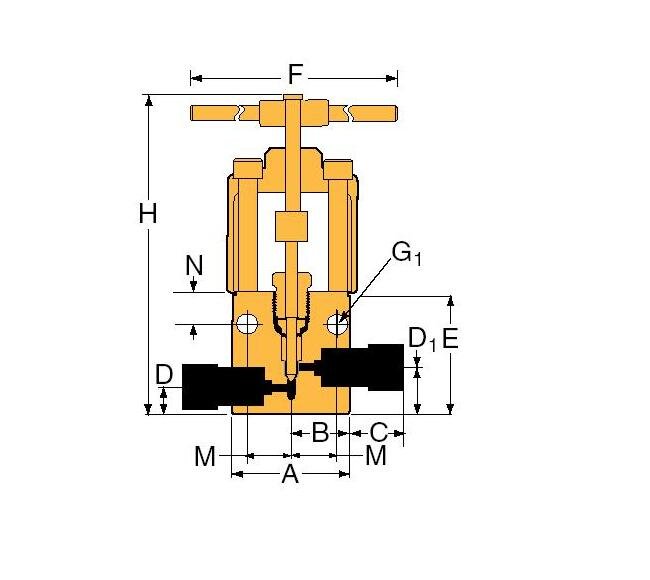

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
SF750CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D1 Height
1.50 in | 38.10 mm
Specifications D Height
0.75 in | 19.05 mm
Specifications E Height
3.50 in | 88.90 mm
Specifications F Length
8.00 in | 203.20 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
9.38 in | 238.25 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
0.88 in | 22.23 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Outside Diameter Tube
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
2.41
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.00 in | 25.4 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
