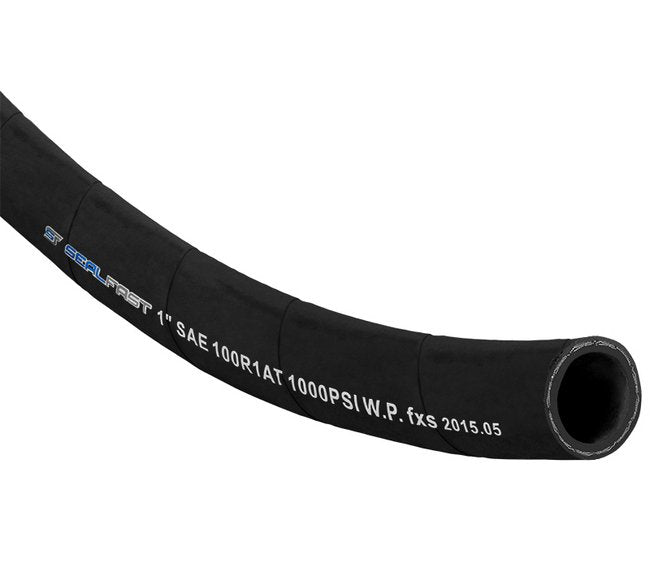

Medium Pressure Hydraulic Single Braid Hose
Medium Pressure Hydraulic Single Braid Hose
SKU:HOS-11833a
Durable Medium Pressure Hydraulic Hose suitable for mineral oil and glycol base liquids. Meets SAE J517 100R1AT standards. Working pressure of 1000 psi.
Regular price
$3.99
Regular price
Sale price
$3.99
Unit price
per
Initiate Order
Medium Pressure Hydraulic Single Braid Hose
$3.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Hydraulic Single Braid Hose
$3.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Medium Pressure Hydraulic Single Braid Hose (100R1AT) on reels is designed for mineral oil and glycol base liquids, meeting and exceeding SAE J517 100R1AT standards. With a temperature range of -40 to +250°F, this hose features a one steel wire braid reinforcement, oil and weather resistant synthetic rubber cover, and oil resistant synthetic rubber tube. Operating at a working pressure of 1000 psi and bursting at 4000 psi @ 70°F, this hose offers reliability and durability for various hydraulic applications. Sold by the foot.
Product Specifications
Specifications Bend Radius
12 in
Specifications Burst Pressure 70
4000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
1 in
Specifications Od
1.35 in
Specifications Package Type
Feet
Specifications Reinforcement
One Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
55.8 lb
Specifications Working Pressure
1000 psi
