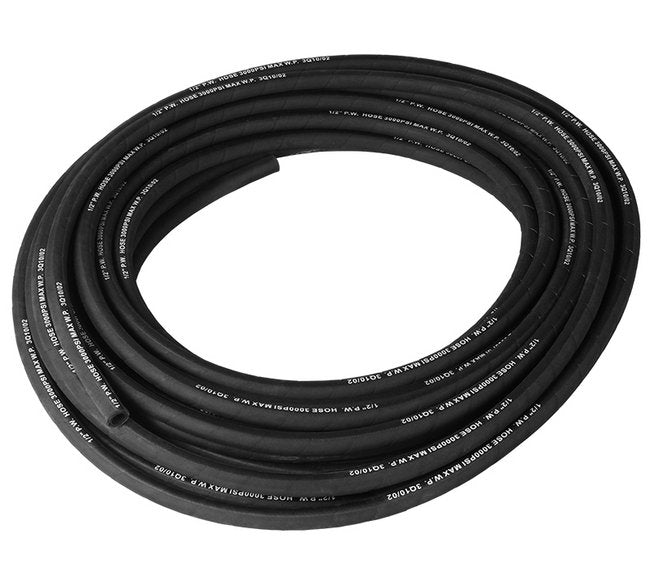

Medium Pressure Hydraulic Single Braid Hose - 100R1AT Bulk Coils
Medium Pressure Hydraulic Single Braid Hose - 100R1AT Bulk Coils
SKU:HOS-adfa45
Premium hydraulic hose meeting SAE J517 100R1AT standards, with 625 psi working pressure, ideal for mineral oil and glycol base liquids.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Medium Pressure Hydraulic Single Braid Hose - 100R1AT Bulk Coils
$129.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Hydraulic Single Braid Hose - 100R1AT Bulk Coils
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Medium Pressure Hydraulic Single Braid Hose - 100R1AT Bulk Coils is a top-tier hydraulic hose designed for mineral oil and glycol base liquids. Compliant with SAE J517 100R1AT standards, this hose offers exceptional performance with a working pressure of 625 psi and a burst pressure of 2500 psi. Its durable construction includes an oil and weather-resistant synthetic rubber cover, oil-resistant synthetic rubber tube, and one steel wire braid reinforcement. With a temperature range of -40 to +250 °F and a bend radius of 16.5 inches, this hose delivers reliability and longevity in various operational conditions.
Product Specifications
Specifications Bend Radius
16.5 in
Specifications Burst Pressure 70
2500 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
1-1/4 in
Specifications Od
1.69 in
Specifications Package Type
Feet
Specifications Reinforcement
One Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
80.6 lb
Specifications Working Pressure
625 psi
