Medium-Pressure Male-to-Male NPT Adapters
Medium-Pressure Male-to-Male NPT Adapters
SKU:VOO-405ef4
Premium Medium-Pressure Male Adapters designed for durability and precision performance in high-pressure systems.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Medium-Pressure Male-to-Male NPT Adapters
$34.99
Quantity: 1
Claim Your Seller Account
Medium-Pressure Male-to-Male NPT Adapters
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Medium-Pressure Male-to-Male NPT Adapters are precision-engineered by Autoclave Engineers to meet the demands of high-pressure applications. Machined from cold-worked stainless steel, these adapters offer exceptional durability and performance. With a SF250CX connection on one end and a 1/4 inch NPT on the other, they ensure a secure and leak-free connection. The adapters feature a 0.63-inch hex for easy installation and a length of 1.75 inches, providing a compact yet robust solution for your coupling needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

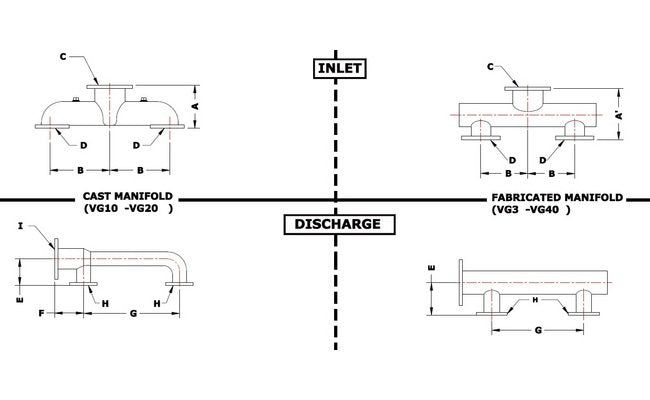

Dimension Discharge Flange Size H
2 x 6 in
Dimension Discharge Flange Size I
3 x 7-1/2 in | 80 x 200 mm
Dimension Discharge Size E
4-1/2 in | 114 mm
Dimension Discharge Size F
5-1/2 in | 140 mm
Dimension Discharge Size G
17 in
Dimension Inlet Flange Size C
4 x 9 in | 100 x 220 mm
Dimension Inlet Flange Size D
3 x 7-1/2 in
Dimension Inlet Size A
9 in
Dimension Inlet Size B
8-1/2 in | 216 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Certifications
German Institute for Standardization (DIN)
Material Construction Features Cone Material
316 Cast Stainless Steel (SS)
Material Construction Features Head Material
316 Cast Stainless Steel (SS)
Material Construction Features Housing Material
316L Cast Stainless Steel (SS)
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
316 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
316 Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
425 lb | 195 kg
Specifications Bearing Design
Double row spherical roller bearing, external, grease lubricated, Type: NSK 21308EAE4
Specifications Cone Opening Vacuum Level
Medium (M)
Specifications Manifold Inlet Flange Connection Size
4 in | 100 mm
Specifications Manifold Outlet Flange Connection Size
3 in | 80 mm
Specifications Nominal Sealing Liquid Flow Rate At 20 To 24 Inch
27 L/min | 7 g/min
Specifications Pump Inlet Flange Connection Size
3 in | 80 mm
Specifications Pump Outlet Flange Connection Size
2 in | 50 mm
Specifications Sealing Liquid Connection Size
1 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
1-1/2 in | 38.1 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
Test Data Conditions Absolute Barometric Pressure
760 mmHg | 29.92 inHg
Test Data Conditions Inlet Gas Temperature
15.6 ºC | 60 ºF
Test Data Conditions Relative Humidity
50 %
Test Data Conditions Sealing Liquid Temperature
15.6 ºC | 60 ºF
