Medium Pressure Silicone Test Plug 146-9 Series
Medium Pressure Silicone Test Plug 146-9 Series
SKU:HIG-069651
Reliable Medium Pressure Silicone Test Plug for efficient pipeline testing up to 150 psig pressure with customizable options.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Medium Pressure Silicone Test Plug 146-9 Series
$99.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Silicone Test Plug 146-9 Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Medium Pressure Silicone Test Plug 146-9 Series is designed for reliable testing of pipelines up to 150 psig pressure. With a 1.76-inch minimum pipe inside diameter and a bypass feature, this plug ensures easy installation and efficient testing without tube wall damage. Its Nitrile seal guarantees a tight grip without direct tube contact, preventing leaks. Customizable with various seal materials, configurations, and materials, this plug meets diverse size, pressure, and chemical requirements. Safety is paramount with a mechanical plug warning ensuring proper usage to prevent property damage or injury.
Product Specifications

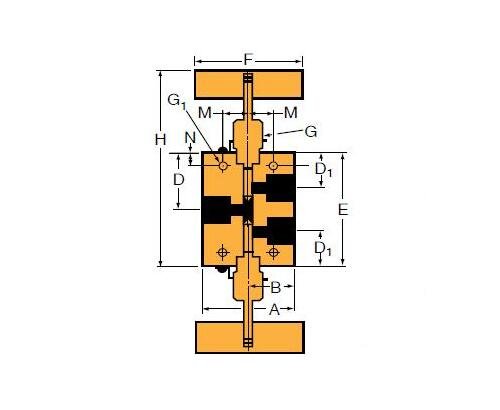

Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
Pipe
Specifications D1 Height
1.19 in | 30.18 mm
Specifications D Height
1.69 in | 42.88 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.75 in | 146.05 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.219 in | 5.56 mm
Specifications Pipe Size
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.75
Specifications Stem Type
VEE
Specifications Valve Pattern
3-Way/2-Stem Manifold
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
