Medium Pressure Silicone Test Plug with By-Pass - 3.76 in Min Pipe ID
Medium Pressure Silicone Test Plug with By-Pass - 3.76 in Min Pipe ID
SKU:HIG-4cacea
Reliable and customizable medium pressure silicone test plug with by-pass for safe pipeline testing.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Medium Pressure Silicone Test Plug with By-Pass - 3.76 in Min Pipe ID
$129.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Silicone Test Plug with By-Pass - 3.76 in Min Pipe ID
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Silicone Test Plug with By-Pass is a reliable solution for testing pipelines with ease and precision. Featuring a durable construction with Nitrile seals for hydrocarbon resistance, this plug is designed for nominal 4-inch pipes up to 80 psig pressure. With customizable configurations for various seal materials, including Nitrile, EPDM, Flurocarbon, Silicone, and Polyurethane, this plug ensures compatibility with different size, pressure, temperature, and chemical requirements. Safety is paramount with this plug, as it provides mechanical warnings and guidelines for secure usage, making it ideal for institutional and government procurement needs.

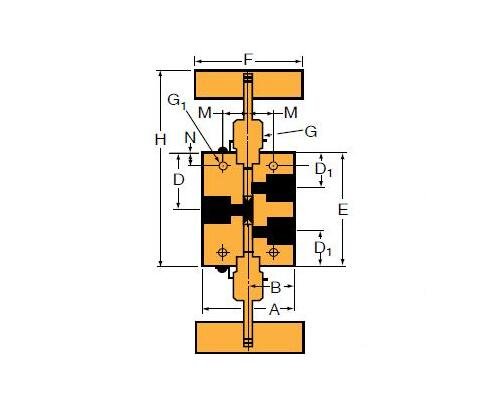

Product Specifications
Specifications A Width
4.12 in | 104.65 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
Pipe
Specifications D1 Height
2.81 in | 71.42 mm
Specifications D Height
3.75 in | 95.25 mm
Specifications E Height
7.50 in | 190.50 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.15 mm
Specifications H Height
11.47 in | 291.38 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.13 in | 28.70 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Pipe Size
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
4.40
Specifications Stem Type
REG
Specifications Valve Pattern
3-Way/2-Stem Manifold
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
