Medium Pressure Silicone Test Plug with By-Pass for 2.01in Pipes
Medium Pressure Silicone Test Plug with By-Pass for 2.01in Pipes
SKU:HIG-3b04b9
Reliable Nitrile-sealed test plug for 2.01in diameter pipes, ideal for safe and efficient testing up to 250 psig.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Medium Pressure Silicone Test Plug with By-Pass for 2.01in Pipes
$79.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Silicone Test Plug with By-Pass for 2.01in Pipes
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug is expertly designed for simple, reliable testing of pipes and tubing up to 250 psig. Featuring a Nitrile seal for hydrocarbon resistance, this plug ensures efficient testing without tube wall damage. With various seal material options and custom configurations available, this plug meets versatile size, pressure, and chemical requirements. Safety is paramount with a Mechanical Plug Warning for maximum pressure estimation. Enhance testing efficiency and safety with this reliable test plug.
Product Specifications

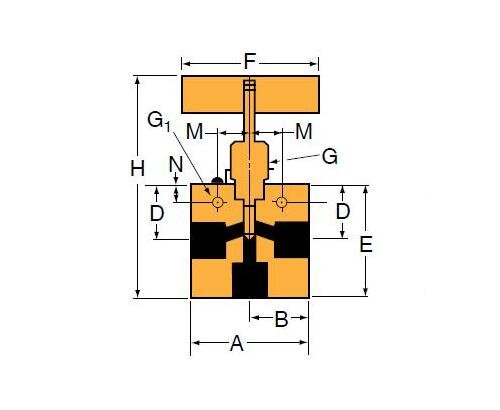

Specifications A Width
4.12 in | 104.65 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
Pipe
Specifications D Height
3.31 in | 84.07 mm
Specifications E Height
5.12 in | 130.05 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.15 mm
Specifications H Height
9.09 in | 230.89 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.13 in | 28.70 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Pipe Size
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
4.40
Specifications Stem Type
REG
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
