Medium Pressure Silicone Test Plug with By-Pass for 7.95in Pipe
Medium Pressure Silicone Test Plug with By-Pass for 7.95in Pipe
SKU:HIG-9a7db7
A reliable Nitrile-sealed test plug for pipelines up to 15 psig, offering customization and safety features for secure testing. Perfect for institutional procurement.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Medium Pressure Silicone Test Plug with By-Pass for 7.95in Pipe
$99.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Silicone Test Plug with By-Pass for 7.95in Pipe
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Test Plug with By-Pass offers a simple and reliable solution for testing pipelines up to 15 psig. Featuring a Nitrile seal for hydrocarbon resistance, this plug ensures secure testing without tube wall damage. With options for custom configurations and various seal materials, it meets diverse pressure, temperature, and chemical requirements. Safety is prioritized with a mechanical plug warning for optimal usage. Ideal for institutional and government procurement needs.
Product Specifications

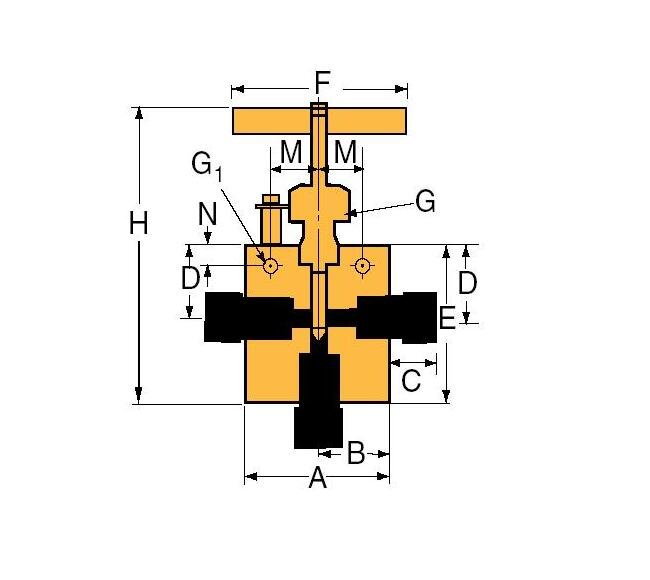

Specifications A Width
1.38 in | 34.93 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Length
0.69 in | 17.45 mm
Specifications Connection Type
W062
Specifications C Length
0.45 in | 11.43 mm
Specifications D1 Height
0.56 in | 14.30 mm
Specifications D Height
0.56 in | 14.3 mm
Specifications E Height
1.44 in | 36.50 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.04 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
2.69 in | 68.30 mm
Specifications M Length
0.45 in | 11.49 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.055 in | 1.40 mm
Specifications Outside Diameter Tube
1/16 in | 1.57 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.05
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
