Medium Pressure Test Plug - 146-9 Series

Name: Medium Pressure Test Plug - 146-9 Series
Brand: Parker / Autoclave Engineers
SKU: HIG-a604e2
Price: 99.99 USD
Availability: OutOfStock

SKU:HIG-a604e2

Reliable 146-9 Series Medium Pressure Test Plug for pipeline testing up to 250 psig with Nitrile seal, ensuring no tube wall damage. Customizable configurations available.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 146-9 Series Medium Pressure Test Plug with By-Pass is a reliable solution for testing pipelines up to 250 psig. Featuring a Nitrile seal for hydrocarbon resistance, this plug ensures secure testing without tube wall damage. With customizable configurations and seal materials available, this plug offers versatility for various size, pressure, temperature, and chemical requirements. Manufactured with high-quality materials, it provides a simple yet effective method for pipe and tubing testing, meeting industry standards for reliability and durability.

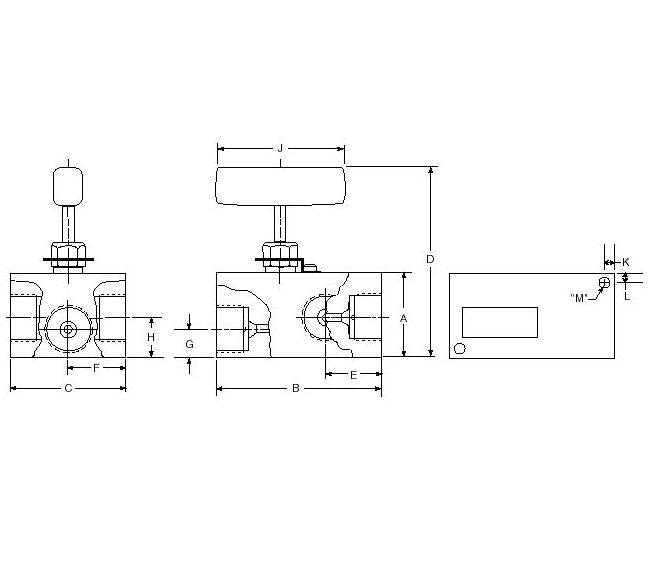

Product Specifications

Specifications A Height

2.00 in | 50.80 mm

Specifications B Length

3.88 in | 98.55 mm

Specifications Connection Size

9/16 in | 14.29 mm

Specifications Connection Type

SF562CX

Specifications C Width

2.75 in | 69.85 mm

Specifications D Height

4.54 in | 115.31 mm

Specifications E Length

1.31 in | 33.27 mm

Specifications F Length

1.38 in | 34.93 mm

Specifications G Height

0.66 in | 16.76 mm

Specifications H Height

0.94 in | 23.83 mm

Specifications J Length

3.00 in | 76.20 mm

Specifications K Mounting Dimension

0.38 in | 9.70 mm

Specifications L Mounting Dimension

0.38 in | 9.70 mm

Specifications M Mounting Diameter

0.28 in | 7.10 mm

Specifications Orifice Size

0.125 in | 3.18 mm

Specifications Pressure Rating At Room Temperature

20000 psi | 1379 bar

Specifications Rated Cv

0.23

Specifications Tubing Engagement Depth

0.81 in | 21.0 mm

Specifications Valve Pattern

Wellhead Gauge Valve
