Medium Pressure Test Plug with By-Pass - 146-9 Series
Medium Pressure Test Plug with By-Pass - 146-9 Series
SKU:HIG-62683b
146-9 Series Medium Pressure Test Plug with By-Pass - Reliable, customizable, and safety-focused solution for testing pipelines up to 300 psig. Meets institutional procurement standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Medium Pressure Test Plug with By-Pass - 146-9 Series
$99.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Test Plug with By-Pass - 146-9 Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass is a reliable solution for testing pipelines up to 300 psig. Featuring a Nitrile seal for hydrocarbon resistance, this plug ensures testing up to 250 psig without damaging the tube wall. Customizable with various seal materials and configurations, it offers versatility for different pressure, temperature, and chemical requirements. With mechanical plug warnings in place, it prioritizes safety by cautioning against exceeding system capacities. Ideal for institutional and government procurement needs, this test plug meets stringent industry standards for performance and reliability.

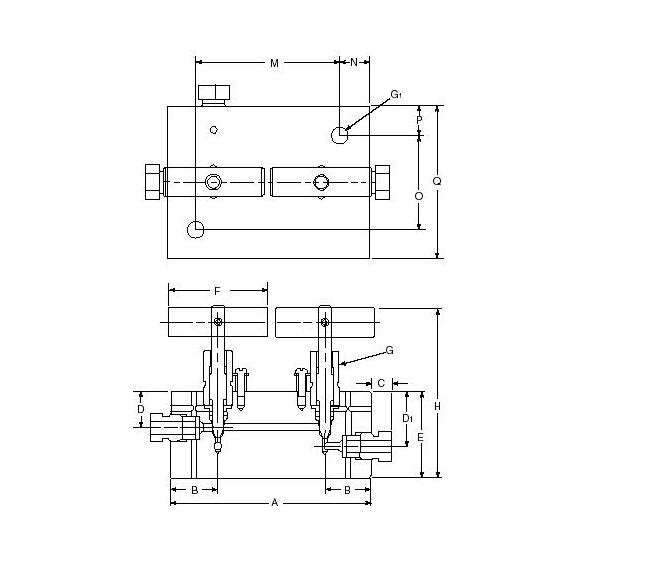

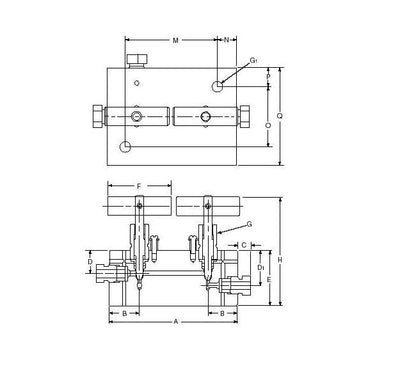

Product Specifications
Specifications A Length
3.88 in | 98.60 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SF375CX
Specifications C Length
0.44 in | 11.1 mm
Specifications D1 Height
0.938 in | 23.83 mm
Specifications D Height
0.625 in | 15.88 mm
Specifications E Height
1.50 in | 38.1 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.281 in | 7.14 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
2.94 in | 74.68 mm
Specifications M Length
2.88 in | 73.15 mm
Specifications N Length
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications O Length
1.63 in | 41.40 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications P Length
0.500 in | 12.70 mm
Specifications Q Width
2.625 in | 66.68 mm
Specifications Rated Cv
0.20
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.6 mm
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 800°F (427°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C)GY standard valve with Graphite braided yarn packing to 800°F (427°C).For additional valve options, contact your Sales Representative.Note: Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
