Medium Pressure Test Plug with By-Pass - 146-9 Series
Medium Pressure Test Plug with By-Pass - 146-9 Series
SKU:HIG-879b40
Reliable 146-9 Series Medium Pressure Test Plug with By-Pass for secure pipeline testing up to 250 psig, featuring a Nitrile seal and customizable options.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Medium Pressure Test Plug with By-Pass - 146-9 Series
$139.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Test Plug with By-Pass - 146-9 Series
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass offers simple and reliable testing for pipelines up to 250 psig without causing damage. Featuring a Nitrile seal for hydrocarbon resistance, this plug is designed to ensure a secure fit and prevent leaks. Custom configurations allow for various seal materials to meet specific requirements, while the mechanical plug warning emphasizes safety precautions for usage. Ideal for institutional and government buyers requiring quality and compliance.
Product Specifications

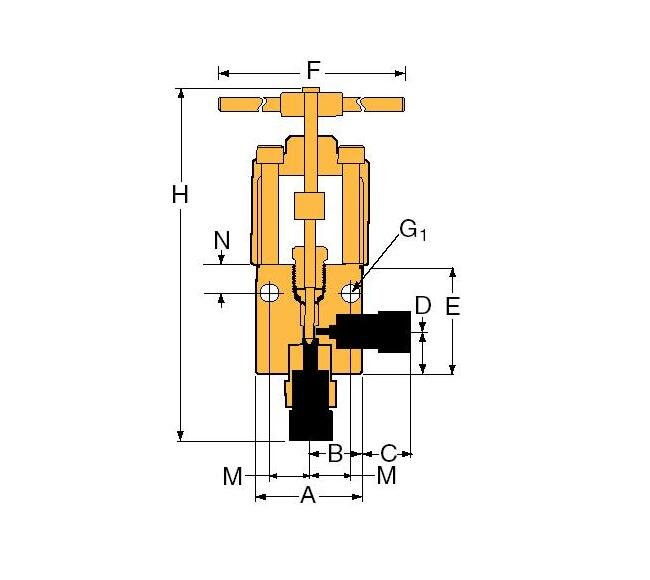

Specifications A Width
4.13 in | 104.9 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.07 in | 52.45 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.29 mm
Specifications D Height
2.13 in | 54.10 mm
Specifications E Height
4.38 in | 111.25 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
11.95 in | 303.53 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.00 in | 25.40 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.30
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
