Medium Pressure Test Plug with By-Pass for 1.01in Pipes - 146-9 Series
Medium Pressure Test Plug with By-Pass for 1.01in Pipes - 146-9 Series
SKU:HIG-0e6a62
Reliable and secure testing with the 146-9 Series Medium Pressure Test Plug - 1.01in ID, 250 psig max pressure, Nitrile seals.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Medium Pressure Test Plug with By-Pass for 1.01in Pipes - 146-9 Series
$89.99
Quantity: 1
Claim Your Seller Account
Medium Pressure Test Plug with By-Pass for 1.01in Pipes - 146-9 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass is engineered for precise testing of pipelines. With a minimum 1.01in inside diameter and a rated pressure of 250 psig, it offers reliable testing without tube wall damage. Featuring Nitrile seals for hydrocarbon resistance, this plug ensures secure sealing during testing procedures. Customizable configurations are available to meet specific size, pressure, temperature, and chemical requirements. Additionally, advanced safety measures are in place to prevent property damage or injury during usage.
Product Specifications

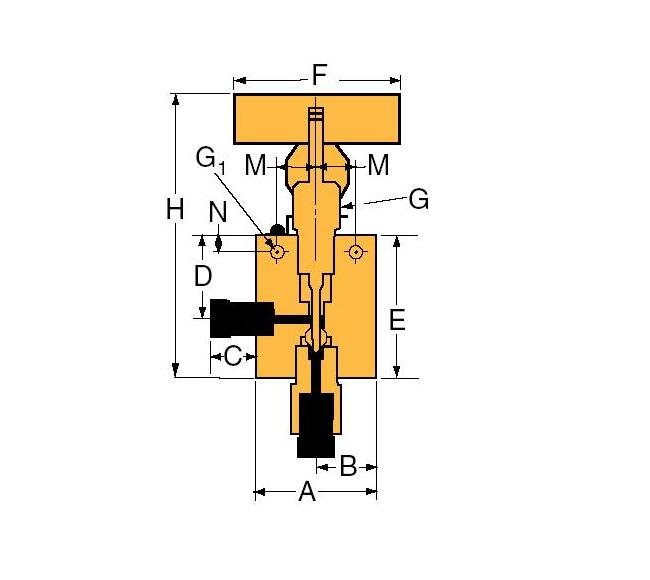

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.63 in | 66.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.58 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.97 in | 24.63 mm
Specifications H Height
6.06 in | 153.92 mm
Specifications M Length
0.69 in | 17.25 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.004
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VRMM)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.See Needle Valve options for stem and seat coatings for erosive service.
