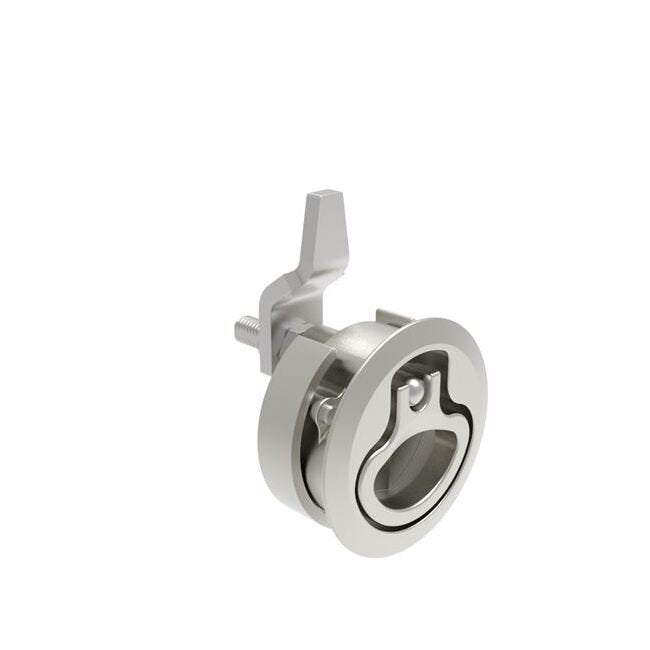

Medium Size Compression Latch - M1
Medium Size Compression Latch - M1
SKU:LOC-572428
Medium Size Compression Latch - 316 Stainless Steel, Electropolished. Door thickness: 12 - 22.5mm, Grip: 27 - 64mm. Meets UL FTTA2/FTTA8 Type 1 standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Medium Size Compression Latch - M1
$49.99
Quantity: 1
Claim Your Seller Account
Medium Size Compression Latch - M1
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Medium Size Compression Latch M1 is a top-tier access solution suitable for institutional and consumer applications. With a door thickness range of 12 - 22.5mm and grip sizes of 27 - 64mm, this latch offers versatility and security. Crafted from 316 stainless steel with an electropolished finish, it combines durability with an aesthetically pleasing appearance. Meeting UL FTTA2 / FTTA8 Type 1 standards, this latch ensures optimal performance and reliability.
Product Specifications
Specifications Access Restriction
No Restriction
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
40
Specifications Grip Maximum Cam Reversed
64
Specifications Grip Minimum
27
Specifications Grip Minimum Cam Reversed
51
Specifications Handle Style
D Handle Style
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
22.5
Specifications Min Outer Panel Thickness
12
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Medium Size, No Restriction, 12 - 22.5mm (.475 - . 885 in) Door thickness, 27 - 40mm or 51 -64mm (1.06 - 1.57 in or 2.00 - 2.52 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Medium Size
Specifications Trade Drawing
Trade Drawing
