Medium to High-Pressure Adapters
Medium to High-Pressure Adapters
SKU:SBD-8c8a58
Enhance connection capabilities with durable, precision-engineered Medium to High-Pressure Adapters.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Medium to High-Pressure Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Medium to High-Pressure Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connection capabilities with our Medium to High-Pressure Adapters. Designed for versatility, these stainless steel adapters are machined to precision, ensuring reliable performance under high pressures. Available in various configurations to suit your specific needs, these adapters offer exceptional durability and corrosion resistance. Contact us for custom material options for specialized requirements. With quick access to select in-stock products, enhance your setup with Autoclave's premium adapters.
Product Specifications
Additional Information Additional Information

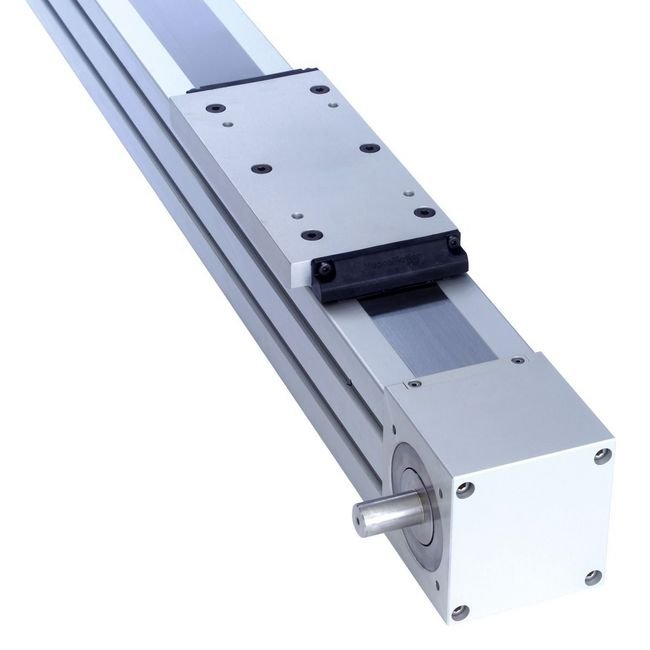

Sealed Belt driven units, offered in standard and clean room configurations, come in three basic sizes, plus the addition of a New "High Stiffness" version SBD30-100XL, providing a higher level of performance in terms of load capacity and life than other comparable sized systems.Three sizes, compact in construction SBD15-60, SBD20-80 and SBD30-100. (60, 80 and 100 relate to the width of the beam in mm).Units are supplied in increments of 60mm (SBD20-80 and SBD15-60) and 80mm (SBD30-100) up to 6 meters long. Longer systems can be achieved by joining.Shaft with fitted key; right, left, double and hollow shaft optionsLimit switch and bracket options include mechanical and inductive versionsInternal buffers for end of stroke protection at each endPre-adjusted and pre-lubricated to offer practically maintenance-free operationAn access hole in the beam, closed off with a threaded plug, provides easy access for re-lubrication of the ball guideA wide range of gearboxes, motors, motor connection kits, and drives are available. Other options and accessories include multi-axis mounting kits and tubular flanges.SBD is compatible with the MCS line of aluminum framing.
Beam Beam
The high strength anodized aluminum beam is supplied with T-slots for easy mounting. T-nuts, T-slot covers, mounting brackets and multi-axis connection brackets are available options.
Carriage Plate Carriage Plate
The removable carriage plate is easy to detach, and can be rotated 180 degrees to change handing.
Clean Room Version Clean Room Version
The clean room version of the SBD adds a vacuum connection, minimizing particle emissions. All external parts are anodized aluminum or stainless steel. The shaft is stainless steel, as is the threaded plug at the access hole in the beam.SBD Clean room versions are certified by the Fraunhofer IPA Institute for use in clean room environments and meets air cleanliness class 3 according to ISO 14644-1.Clean room version of the SBD is only available for sizes SBD20-80, SBD30-100, and SBD30-100XL.
Sbd30 100xl Sbd30 100xl
The SBD30-100XL unit has been designed for applications which require a stiffer beam than the standard SBD30-100 unit.The New "High Stiffness" version is beneficial in systems with high loads and wide spans.Stiffness of the SBD30-100XL is 104% higher than the standard version in the L1 condition.
Specifications Model
SBD
Specifications Speed
4 m/s
