Mefiag Chromic Acid Horizontal Disc Filtration System
Mefiag Chromic Acid Horizontal Disc Filtration System
SKU:FIL-dbd813
Highly efficient Mefiag Chromic Acid Filtration System - PVDF construction, 1,200 gph flow rate, ideal for plating tanks up to 1,000 gallons.
Regular price
$4,799.99
Regular price
Sale price
$4,799.99
Unit price
per
Initiate Order
Mefiag Chromic Acid Horizontal Disc Filtration System
$4,799.99
Quantity: 1
Claim Your Seller Account
Mefiag Chromic Acid Horizontal Disc Filtration System
$4,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

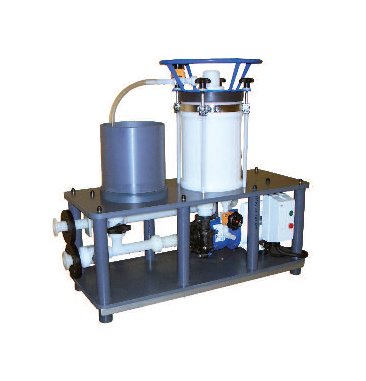

The Mefiag Chromic Acid Horizontal Disc Filtration System is built with solid PVDF construction for superior corrosion resistance in processes involving chromic acid. With a pre-coated flow rate of 1,200 gph and a filtration surface area of 12 ft², this system is designed for efficiency and durability. Features include a PVDF magnetic drive pump, reusable filter media, and easy maintenance for optimal performance. Suitable for plating tanks ranging from 400 to 1,000 gallons, this filtration system meets high-quality standards for institutional and government procurement.
Product Specifications
Features And Benefits Features And Benefits
Solid PVDF construction withstands highly acidic environments PVDF magnetic drive pump with silicone carbide bearings is standard "Unitized pack/cover" disc assembly Reusable media Suitable for chromic acid Filter assembly can be removed in its entirety Temperatures to 190°F (90°C) Pre-coated flow rate to 1600 GPH Large sludge holding capacity Low disposal cost (100 GPH per sq/ft of surface area) High efficiency Specific gravities to 1.5 Shipped ready for immediate operation
Filter Filter

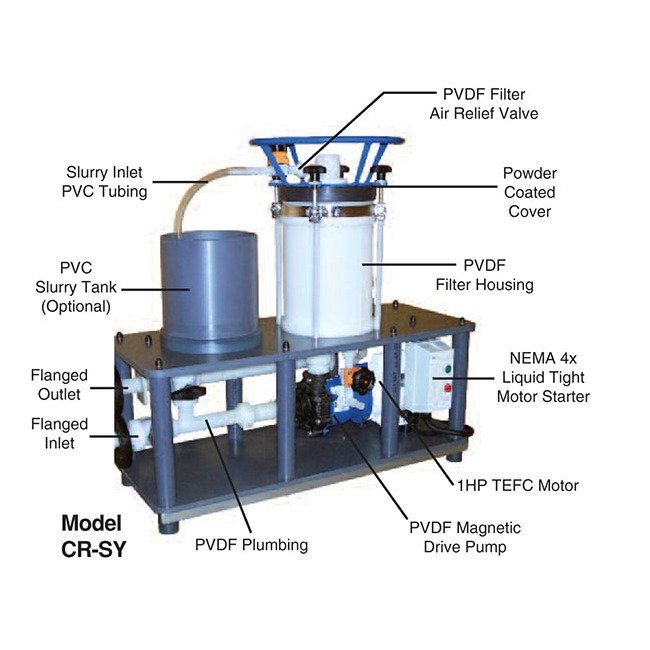

The filter chamber is constructed of solid PVDF with bottom inlet and bottom discharge.Stainless steel eyebolts with hand wheels hold the powder coated steel cover in place. An air release diaphragm valve is provided.A stainless steel pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Base is PVC with stainless steel channel support structure and PVC feet. Casters are available upon request.
Filter Pack Easily Maintained Filter Pack Easily Maintained

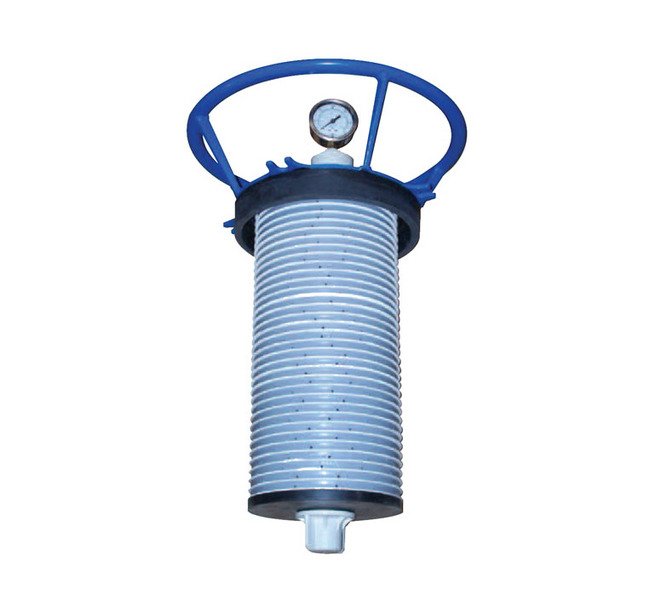

All filter discs are attached to the filter cover to allow easy removal for maintenance. The unique cover design on all models converts into a filter pack stand when the pack is removed. Reusable polyester filter media is standard with optional PVDF media available.
Pvdf Pump Options Pvdf Pump Options
A PVDF magnetic drive pump Model KM is furnished with a 1HP TEFC motor. PVDF mechanical seal pump or self-priming PVDF magnetic drive pump available. High purity silicon carbide bearings and Viton O-rings are standard on magnetic drive pumps. Silicon carbide with Viton O-ring provided with mechanical seal pump. The NEMA 4x motor starter is housed in a liquid tight enclosure.
Specifications Approximate Crated Net Weight
245 lbs
Specifications Approximate Height
43 "
Specifications Approximate Length
31 "
Specifications Approximate Width
16 "
Specifications Filter Media Diameter
8-1/8 "
Specifications Filtration Surface Area
12 ft²
Specifications Flanged Connections Discharge
1-1/4 "
Specifications Flanged Connections Suction
1-1/4 "
Specifications Manufacturer
Mefiag
Specifications Number Of Filter Media
35
Specifications Open Pumping Capacity
2,400 gph
Specifications Piping Valves And Connections
Piping, valves, and connections are all hard pipe PVDF.
Specifications Precoated Flow Rate Filtering Capacity
1,200 gph
Specifications Tefc Motor
1 hp
Specifications Unitized Pack
The disc assembly is all PVDF. All filters discs are attached to the filter cover to allow easy removal for maintenance. The unique filter cover design on all models converts into a filter pack stand when pack is removed.Reusable filter media is placed between the rigid PVDF discs. Ten (10) micron polyester is standard. Optional filter media available.
