Mefiag Chromic Acid Horizontal Disc Filtration System
Mefiag Chromic Acid Horizontal Disc Filtration System
SKU:FIL-d0ab53
Efficient PVDF Chromic Acid Filter System for plating tanks. High performance, easy maintenance, and durable design.
Regular price
$4,567.89
Regular price
Sale price
$4,567.89
Unit price
per
Initiate Order
Mefiag Chromic Acid Horizontal Disc Filtration System
$4,567.89
Quantity: 1
Claim Your Seller Account
Mefiag Chromic Acid Horizontal Disc Filtration System
$4,567.89
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

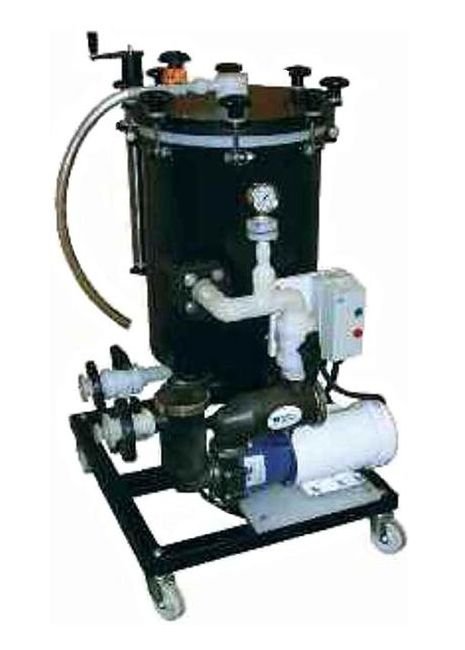

The Mefiag Chromic Acid Horizontal Disc Filtration System is designed for efficient filtration of chromic acid solutions in plating applications. With PVDF construction, self-priming magnetic drive pump, and a large sludge holding capacity, it offers high efficiency and durability. Operating at temperatures up to 190°F, it features reusable filter media, easy maintenance access, and a powder-coated steel frame for portability. Suitable for institutional and industrial use, this system meets stringent quality and performance standards.
Product Specifications
Features And Benefits Features And Benefits
PVDF construction withstands highly acidic environments PVDF self-priming magnetic drive pump with silicone carbide bearings is standard Reusable media 100 GPH per sq/ft of surface area Suitable for chromic acid Filter assembly can be removed in its entirety Temperatures to 190°F (90°C) Pre-coated flow rate to 9000 GPH Large sludge holding capacity Low disposal cost High efficiency Specific gravities to 1.5 Shipped ready for immediate operation Powder coated steel frame with casters for easy handling NEMA 4 water tight, corrosion resistant starter Mechanical cover lifting device for easy access to filter pack (not available on the 2500 Series)
Filter Filter

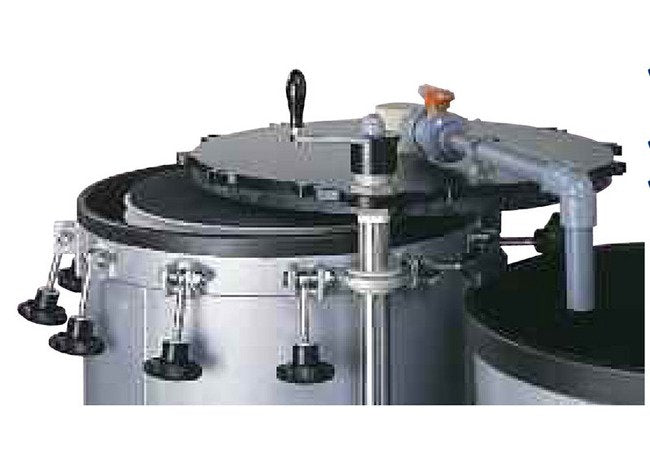

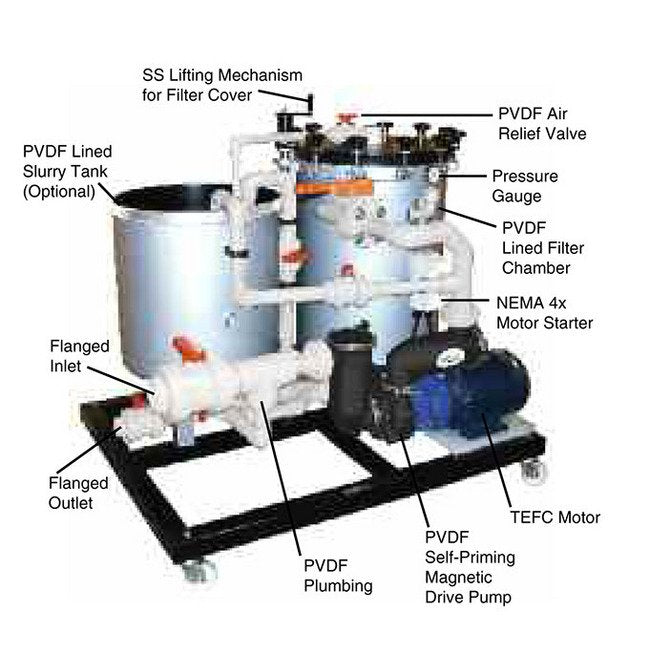

Filter chambers are constructed of mild steel with a PVDF lining on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with hand wheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Reusable filter media suited for the application is placed between the rigid PVDF filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron polyester is standard.All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Pvdf Pump Options Pvdf Pump Options
A PVDF self-priming magnetic drive pump Model KMSP is standard. PVDF mechanical seal pump is available. High purity silicon carbide bearings and Viton O-rings are standard on magnetic drive pumps. Silicon carbide with Viton O-ring provided with mechanical seal pump. The NEMA 4x motor starter is housed in a liquid tight enclosure.
Specifications Approximate Crated Net Weight
410 lbs
Specifications Approximate Height
48 "
Specifications Approximate Length
37 "
Specifications Approximate Width
20 "
Specifications Filter Media Diameter
12 "
Specifications Filtration Surface Area
25 ft
Specifications Flanged Connections Discharge
1-1/4 in Outlet
Specifications Flanged Connections Suction
1-1/4 in Inlet
Specifications Manufacturer
Mefiag
Specifications Number Of Filter Media
40
Specifications Piping Valves And Connections
Piping, valves, and connections are all hard pipe PVDF.
Specifications Precoated Flow Rate Filtering Capacity
2,500 gph
Specifications Tefc Motor
1 hp
