Mefiag High Capacity Electroplating Filter System
Mefiag High Capacity Electroplating Filter System
SKU:FIL-772b9c
Efficient Mefiag High Capacity Electroplating Filter System - Ideal for nickel, copper, and zinc electrolytes.
Regular price
$15,000.00
Regular price
Sale price
$15,000.00
Unit price
per
Initiate Order
Mefiag High Capacity Electroplating Filter System
$15,000.00
Quantity: 1
Claim Your Seller Account
Mefiag High Capacity Electroplating Filter System
$15,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

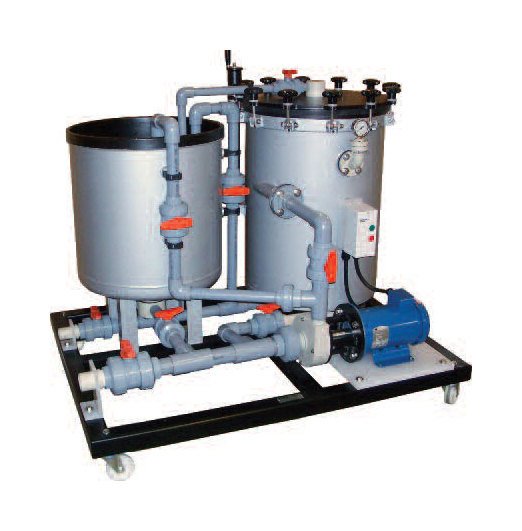

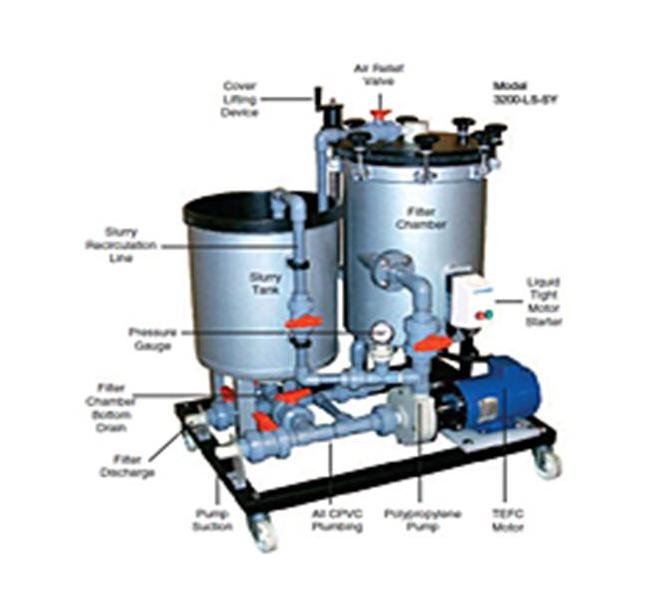

The Mefiag High Capacity Electroplating Filter System, part of the Mefiag Series 15000-LS and 15000-LS-SY, is a robust filtration solution designed for nickel, copper, and zinc electrolytes. With a precoated flow rate of 15,000 gph and a filtration surface area of 110 ft², this system offers horizontal disc technology for maximum efficiency. Its corrosion-resistant construction and mechanical lifting device ensure easy maintenance while meeting institutional procurement standards for durability and reliability.
Product Specifications
Features Features
Horizontal disc technology for greater surface area and maximum efficiency.Large sludge holding capacityLow disposal cost.Wider range of flow rates for optimum bath turnover rates.Corrosion resistant construction for use in most severe applications.Temperatures to 190 °F (90 °C).Mechanical lifting device for easy access to filter pack.All polypropylene pump.CRS mechanical seal with silicon carbide faces.Powder coated steel frame with casters for easy handling.Choice of cellulose, carbon/cellulose, and reusable polypropylene media.NEMA 4 water tight, corrosion resistant starter.Optional lifting device for easy pack removal
Filter Filter
Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard. All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all CPVC construction. Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Pump Pump

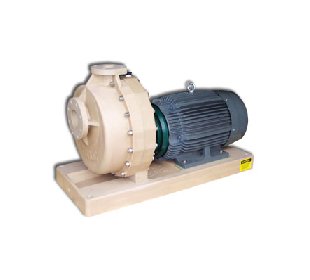

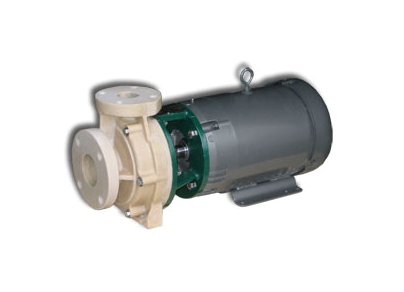

Polypropylene centrifugal pumps are equipped with TEFC, flange mounted motors. Mechanical seal is MEFIAG CRS-25/B with silicon carbide faces. Pump shaft is stainless steel. The motor starter is mounted in corrosion resistant, water tight NEMA 4 enclosure. The 15,000-LS Series, Fybroc fiberglass centrifugal pumps are standard. Mechanical seal options are single CRS- 35/B with silicon carbide faces or double water flush.
Slurry Tank Specifications Slurry Tank Specifications
Slurry tanks are mild steel construction with an interior of hard rubber (3 mm) and an exterior of corrosion resistant paint (2 coats). They are used to facilitate pre-coating and addition of activated carbon (if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media or maintenance.Pre-coating provides superior filtration and extends the lifeof the filter media.
Specifications Filter Media Diameter
22 "
Specifications Filtration Surface Area
110 ft²
Specifications Height
79 "
Specifications Hose Connections Suction Discharge
3 "
Specifications Hose Length Suction And Discharge
10 ft
Specifications Length
59 "
Specifications Manufacturer
Mefiag
Specifications Motor
10 HP Fybroc Series 1530
Specifications Number Of Filter Media
44
Specifications Open Pumping Capacity
18,000 gph
Specifications Precoated Flow Rate Filtering Capacity
15,000 gph
Specifications Pump Options
FYBROC 1530 Fiberglass Pump - Standard
Specifications Sludge Holding Capacity
3.62 ft³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications Weight
1300 lbs
Specifications Width
44 "
Vd Lid Assembly Vd Lid Assembly

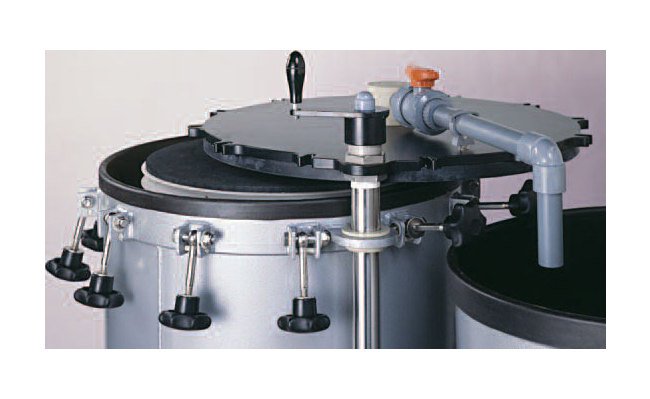

VD Lid assembly is used to tighten down the disc stack verses the cover. (Optional)
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
