Mefiag High Capacity Horizontal Disc Filtration System
Mefiag High Capacity Horizontal Disc Filtration System
SKU:FIL-a06d17
Enhance plating tank filtration with Mefiag's High Capacity Horizontal Disc Filter System for efficient electrolyte filtration.
Regular price
$9,500.00
Regular price
Sale price
$9,500.00
Unit price
per
Initiate Order
Mefiag High Capacity Horizontal Disc Filtration System
$9,500.00
Quantity: 1
Claim Your Seller Account
Mefiag High Capacity Horizontal Disc Filtration System
$9,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

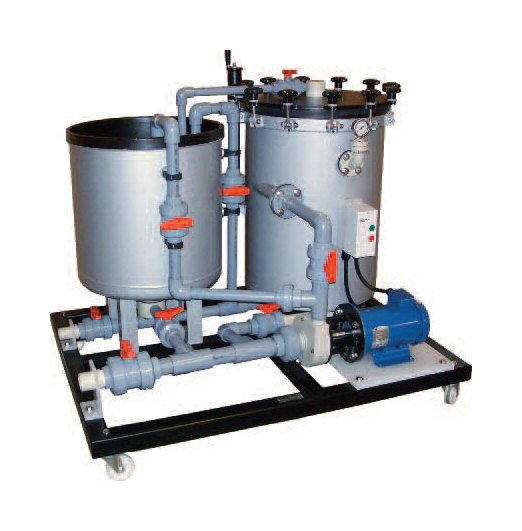

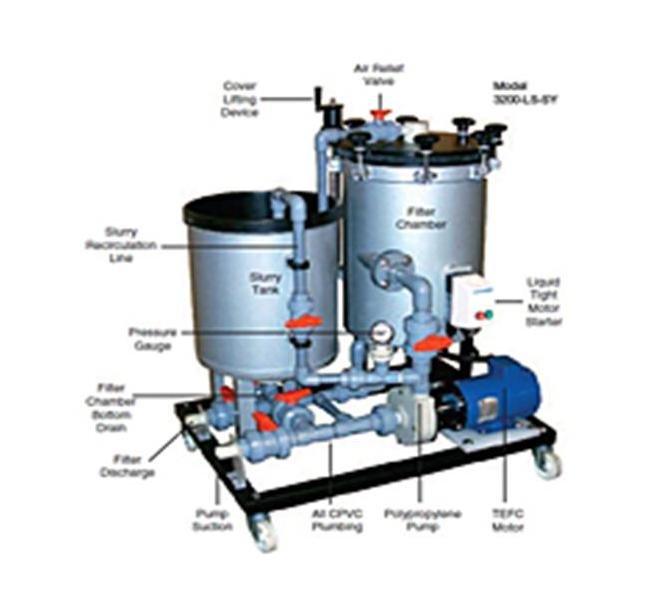

The Mefiag Series 3200-LS and 3200-LS-SY Horizontal Disc Filtration Systems offer unparalleled filtration efficiency for nickel, copper, and zinc electrolytes in plating tanks. With a robust steel rubber-lined construction and a wide range of flow rates, these systems boast a Filtration Surface Area of 32 ft² and a Sludge Holding Capacity of 1.09 ft³. Featuring Horizontal disc technology, corrosion-resistant materials, and a mechanical lifting device for easy maintenance, these systems are designed for reliability and performance in the most demanding applications. With compliance to industry standards, these systems ensure superior filtration results and operational safety.
Product Specifications
Features Features
Horizontal disc technology for greater surface area and maximum efficiency. Large sludge holding capacity Low disposal cost. Wider range of flow rates for optimum bath turnover rates. Corrosion resistant construction for use in most severe applications. Temperatures to 190ºF(90ºC). Mechanical lifting device for easy access to filter pack. All polypropylene pump. CRS mechanical seal with silicon carbide faces. Powder coated steel frame with casters for easy handling. Choice of cellulose, carbon/cellulose, and reusable polypropylene media. NEMA 4 water tight, corrosion resistant starter. Optional lifting device for easy pack removal
Filter Filter
Polypropylene centrifugal pumps are equipped with TEFC, flange mounted motors. Mechanical seal is MEFIAG CRS-25/B with silicon carbide faces. Pump shaft is stainless steel. The motor starter is mounted in corrosion resistant, water tight NEMA 4 enclosure. The 15,000-LS Series, Fybroc fiberglass centrifugal pumps are standard. Mechanical seal options are single CRS- 35/B with silicon carbide faces or double water flush.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all CPVC construction. Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Pump Pump
Polypropylene centrifugal pumps are equipped with TEFC, flange mounted motors. Mechanical seal is MEFIAG CRS-25/B with silicon carbide faces. Pump shaft is stainless steel. The motor starter is mounted in corrosion resistant, water tight NEMA 4 enclosure. The 15,000-LS Series, Fybroc fiberglass centrifugal pumps are standard. Mechanical seal options are single CRS- 35/B with silicon carbide faces or double water flush.
Slurry Tank Specifications Slurry Tank Specifications
Slurry tanks are mild steel construction with an interior of hard rubber (3 mm) and an exterior of corrosion resistant paint (2 coats). They are used to facilitate pre-coating and addition of activated carbon (if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media or maintenance.Pre-coating provides superior filtration and extends the lifeof the filter media.
Specifications Filter Media Diameter
14 "
Specifications Filtration Surface Area
32 ft²
Specifications Height
50 "
Specifications Hose Connections Suction Discharge
1-1/2 "
Specifications Hose Length Suction And Discharge
10 ft
Specifications Length
41 "
Specifications Manufacturer
Mefiag
Specifications Motor
2 HP TEFC
Specifications Number Of Filter Media
33
Specifications Open Pumping Capacity
4,400 gph
Specifications Precoated Flow Rate Filtering Capacity
3,200 gph
Specifications Pump Options
CRS Pump with Mechanical Seal - Standard | PPM - Magnetic End Suction Pump- Adder | PPQ - Magnetic Self-Priming Pump - Adder
Specifications Sludge Holding Capacity
1.09 ft³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications Weight
790 lbs
Specifications Width
30 "
Vd Lid Assembly Vd Lid Assembly

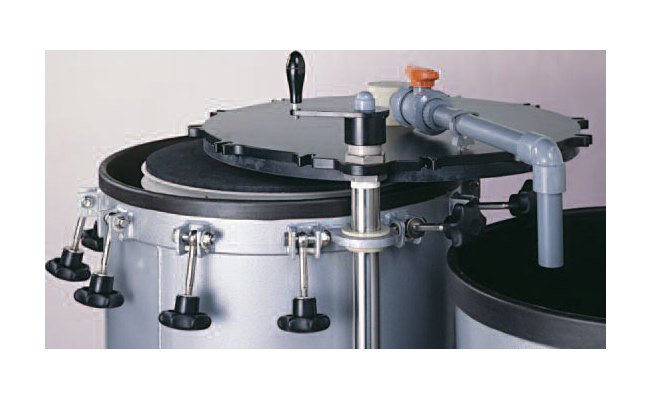

VD Lid assembly is used to tighten down the disc stack verses the cover.
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
