High Capacity Horizontal Disc Filtration System with 4,500 gph Flow Rate, 44 ft² Surface Area, and Superior Corrosion Resistance
Regular price
$8,900.00
Regular price
Sale price
$8,900.00
Unit price
per
Initiate Order

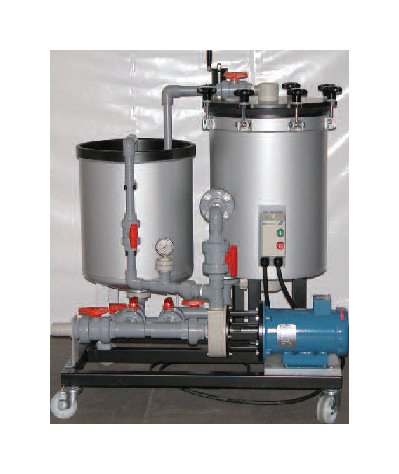

Mefiag High Capacity Horizontal Disc Filtration System
$8,900.00
Quantity: 1
Claim Your Seller Account
Mefiag High Capacity Horizontal Disc Filtration System
$8,900.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mefiag High Capacity Horizontal Disc Filtration System is a top-of-the-line solution designed for the filtration of nickel, copper, and zinc electrolytes. With a Precoated Flow Rate of 4,500 gph and a Filtration Surface Area of 44 ft², this system offers maximum efficiency and reliability. Featuring steel rubber-lined filter chambers, stainless steel lifting device, and a powder-coated steel frame, it ensures superior corrosion resistance, easy maintenance, and long-lasting durability. Ideal for plating tanks ranging from 1,000 to 4,000 gallons, this system meets the highest standards for industrial filtration applications.
Product Specifications
Features Features
Flow rates to 4,500 GPH Horizontal disc technology Maximum surface area (1 sq. ft. per 100 GPH!) Large sludge holding capacity Superior corrosion resistance Temperature to 190ºF (90ºC) Low disposal cost Choice of cellulose, carbon/cellulose or reusable polypropylene filter media Powder coated steel frame with casters for easy handling NEMA 4 water tight, corrosion resistant starter Mechanical cover lifting device for easy access to filter pack Bottom plate and lifting rod for quick change of disc stack (optional for 4500)
Filter Filter

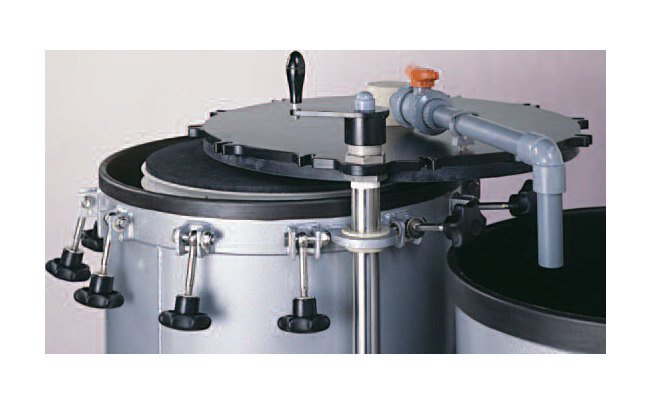

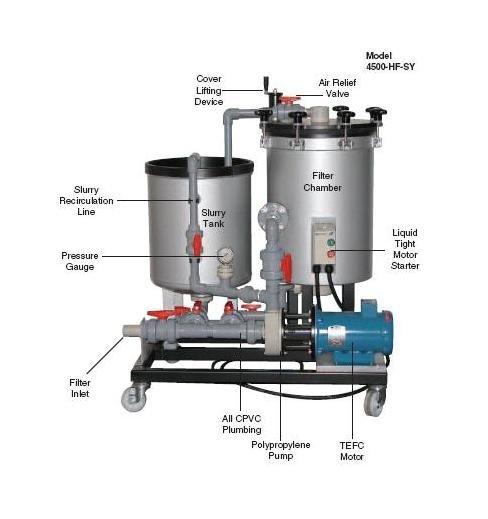

Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes. An air release valve positioned on the cover, is also used as the return line during pre-coating.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard.All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all CPVC construction.Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Pump Pump
Mefiag polypropylene centrifugal pumps are standard with a stainless steel pump shaft. Mechanical seal is CRS-25/B with silicon carbide faces.
Slurry Tank Specifications Slurry Tank Specifications
Piping, valves, and connections are all CPVC construction.Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Specifications Filter Media Diameter
14 "
Specifications Filtration Surface Area
44 ft²
Specifications Height
50 "
Specifications Length
41 "
Specifications Motor Tefc
3 hp
Specifications Number Of Filter Media
44
Specifications Open Pumping Capacity
7,200 gph
Specifications Precoated Flow Rate Filtering Capacity
4,500 gph
Specifications Pump Options
CRS Pump with Mechanical Seal - Standard | PPM - Magnetic End Suction Pump- Adder | PPQ - Magnetic Self-Priming Pump - Adder
Specifications Sludge Holding Capacity
.92 ft³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications System Connections Discharge
1.5" NPT (Female)
Specifications System Connections Suction
2" NPT (Female)
Specifications Weight
720 lbs
Specifications Width
30 "
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
