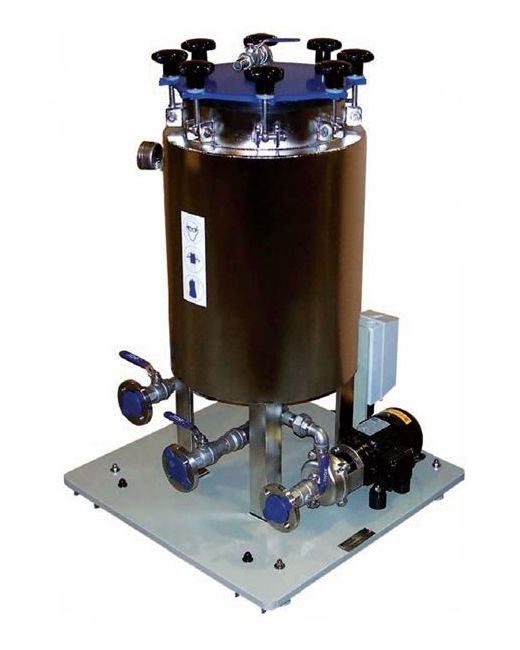

The Mefiag High-Temp Disc Filtration System is expertly designed for handling high-temperature solutions, offering a filtering capacity of up to 10,000 gal/hr. Featuring a stainless steel construction and insulated double-wall design, it ensures efficient filtration for hot-sealing baths and other high-temp applications. With a pre-coated flow rate of 9,000 GPH, large sludge holding capacity, and mechanical cover lifting device, it combines durability and ease of maintenance, making it a top choice for institutional and government buyers.
Product Specifications
Features And Benefits Features And Benefits
100 GPH per sq/ft of surface area Suitable for hot-sealing applications Filter assembly can be removed in its entiretyTemperatures to 210ºF (94ºC).Pre-coated flow rate to 9000 GPHLarge sludge holding capacityLow disposal costHigh efficiencySpecific gravities to 1.5Shipped ready for immediate operationNEMA 4 water tight, corrosion resistant starterMechanical cover lifting device for easy access to filter pack (not available on the 0620 and 2500 Series)
Filter Filter

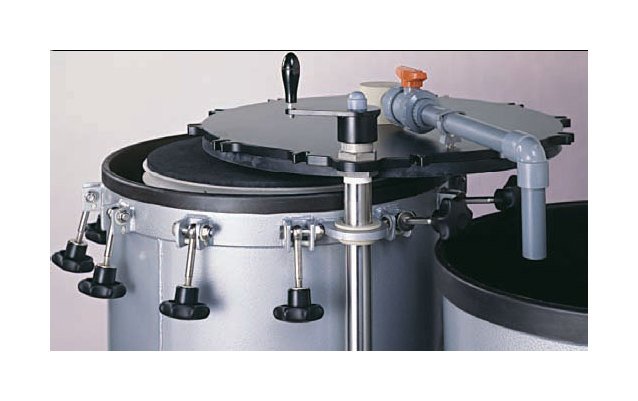

Filter chambers are constructed of stainless steel.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with hand wheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard. Filter media of various materials and micron ratings are available. Ten (10) micron polyester is standard.All systems are mounted on a powder coated structural steel frame or polypropylene baseplate with casters for easy handling.
Slurry Tank Options Slurry Tank Options
Slurry tanks are mild steel construction with an interior of hard rubber (3 mm) and an exterior of corrosion resistant paint (2 coats). They are used to facilitate pre-coating and addition of activated carbon (if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media maintenance.
Specifications Approximate Crated Weight
1140 lbs
Specifications Approximate Dimensions
44 x 36 x 59 "
Specifications Filter Media Diameter
19 "
Specifications Filtration Surface Area
89 ft²
Specifications Flanged Connections Discharge
2 in Outlet
Specifications Flanged Connections Suction
2 in Inlet
Specifications Manufacturer
Mefiag
Specifications Motor
5 hp
Specifications Number Of Filter Media
50
Specifications Piping Valves And Connections
Piping, valves, and connections are all hard pipe stainless steel.
Specifications Precoated Flow Rate
9,000 gph
Specifications Pump Options
Stainless steel mechanical seal pump is standard
Specifications Sludge Holding Capacity
1.84 ft³
Specifications Slurry Tank
None
