High-performance Mefiag filtration system with 7,000 gph flow rate, polypropylene construction, and efficient self-priming pump.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Mefiag Horizontal Disc Filtration System 7000-PPQD-SY
$8,999.99
Quantity: 1
Claim Your Seller Account
Mefiag Horizontal Disc Filtration System 7000-PPQD-SY
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

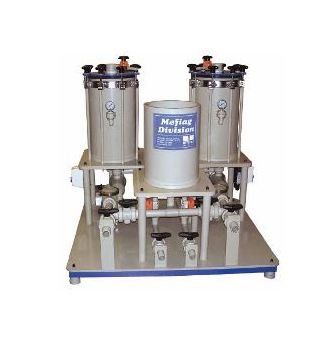

The Mefiag® Series 7000-PPQD-SY Horizontal Disc Filtration Systems are engineered for high-performance filtration needs. With a Precoated Flow Rate of 7,000 gph and a Filtration Surface Area of 64 ft², this system offers exceptional efficiency and reliability. Featuring all polypropylene construction, self-priming magnetic drive pump, and large sludge holding capacity, it ensures low disposal costs and high filtration effectiveness. Ideal for temperatures up to 180°F(82°C) and compliant with industry standards for institutional procurement.
Product Specifications
Features And Benefits Features And Benefits
All polypropylene construction Self-priming magnetic drive pump "Unitized Pack" disc assembly Large sludge holding capacity Low disposal cost High efficiency Pre-coated flow rates to 7000 gph Temperatures to 180°F(82°C)
Filter Filter
The filter chamber is constructed of all polypropylene with bottom inlet and bottom discharge. Discharge is o-ring sealed. A powder coated support plate provides added strength. Chamberâs have side mounted inlet/outlet connections for closer mounting to the tank.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. An air release diaphragm valve is provided.A stainless steel pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Base is polypropylene with stainless steel channel structure and polypropylene feet. Casters are available upon request.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Self Priming Magnetic Drive Pump Self Priming Magnetic Drive Pum
A polypropylene, self-priming magnetic drive pump Model PMSP is furnished with a TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. The magnetic switch motor starter is housed in a liquid tight enclosure.
Slurry Tank Specifications Slurry Tank Specifications
Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Specifications Approximate Crated Weight
1100 lbs
Specifications Filter Media Diameter
12 "
Specifications Filtration Surface Area
64 ft²
Specifications Hose Connection Discharge
1-1/2 in Outlet
Specifications Hose Connection Suction
2 in Inlet
Specifications Hose Length
20 ft
Specifications Manufacturer
Mefiag
Specifications Motor Tefc
2 hp (Two Motors)
Specifications Number Of Filter Media
96
Specifications Open Pumping Capacity
7,600 gph
Specifications Precoated Flow Rate Filtering Capacity
7,000 gph
Specifications Pump Options
PPQ - Magnetic Self-Priming Pump - Standard | PPS - Mechanical Seal CRS-40-PP - No Extra Charge
Specifications Sludge Holding Capacity
.93 in³
Specifications Slurry Tank Option
WITH SLURRY TANK - Standard
Unitized Pack Unitized Pack

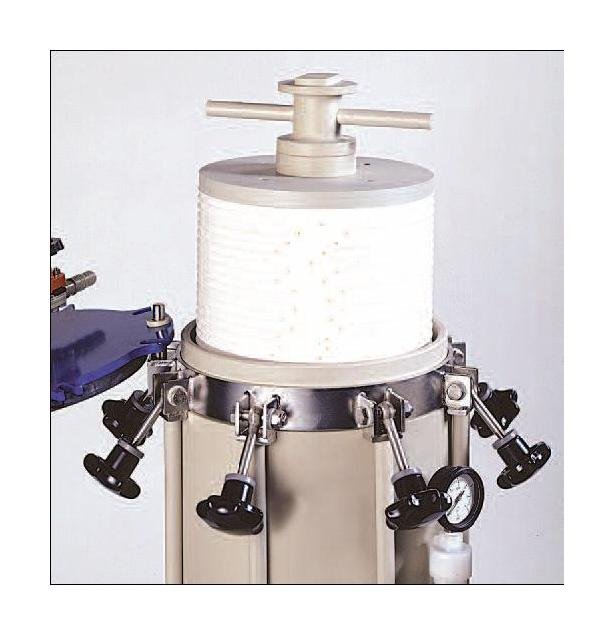

The disc assembly is all polypropylene with threaded center core and top nut for locking the discs into a one-piece unitized pack. Bottom support plate is designed for uniform liquid distribution while the top support plate provides for recirculation of the liquid to the filter media.A locking/lifting handle is furnished to secure the lock nut into place and to facilitate the easy removal and replacement of the unitized pack.Filter media selected for the application is placed between the rigid polypropylene discs. Ten (10) micron cellulose is standard. Carbon/cellulose (10 micron) and polypropylene of various densities are available.
