MEFIAG Horizontal Disc Filtration System Series 9000-HF
MEFIAG Horizontal Disc Filtration System Series 9000-HF
SKU:FIL-ba5dd9
High-capacity MEFIAG Horizontal Disc Filtration System for precise and efficient electrolyte filtration in plating applications.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
MEFIAG Horizontal Disc Filtration System Series 9000-HF
$18,999.99
Quantity: 1
Claim Your Seller Account
MEFIAG Horizontal Disc Filtration System Series 9000-HF
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

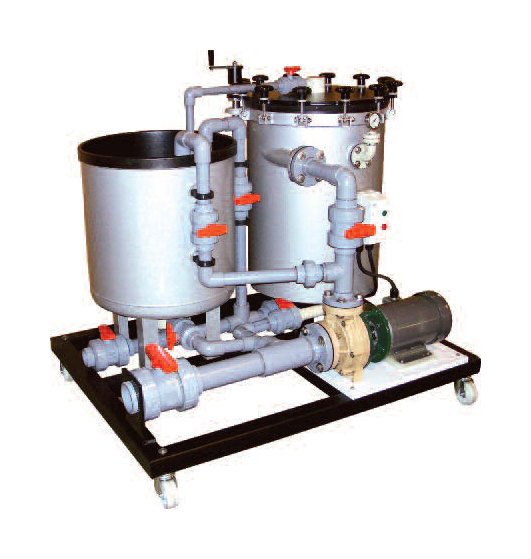

The MEFIAG Series 9000-HF Horizontal Disc Filtration System is a robust solution designed for the precise filtration of nickel, copper, and zinc electrolytes in plating tanks. With a high capacity of 9,000 to 13,000 gph, this system features horizontal disc technology, a large sludge holding capacity, and superior corrosion resistance. It offers a range of customizable options, including different filter media materials and pump seal choices, ensuring optimal performance for different applications. The durable construction, mechanical cover lifting device, and easy maintenance access make it a reliable choice for industrial needs.
Product Specifications
Features Features
Flow rates to 9,000 GPH Horizontal disc technology Maximum surface area (1 sq. ft. per 100 GPH!) Large sludge holding capacity Superior corrosion resistance FRP pump with choice of mechanical seals Temperature to 190ºF (90ºC) Low disposal cost Choice of cellulose, carbon/cellulose or reusable polypropylene filter media Powder coated steel frame with casters for easy handling NEMA 4 water tight, corrosion resistant starter Mechanical cover lifting device for easy access to filter pack Bottom plate and lifting rod for quick change of disc stack standard (optional for 9000)
Filter Filter

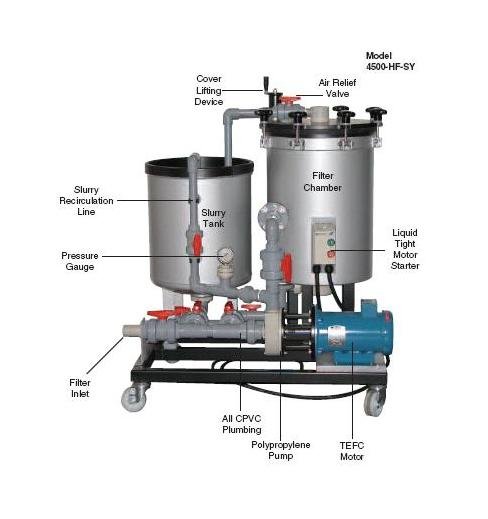

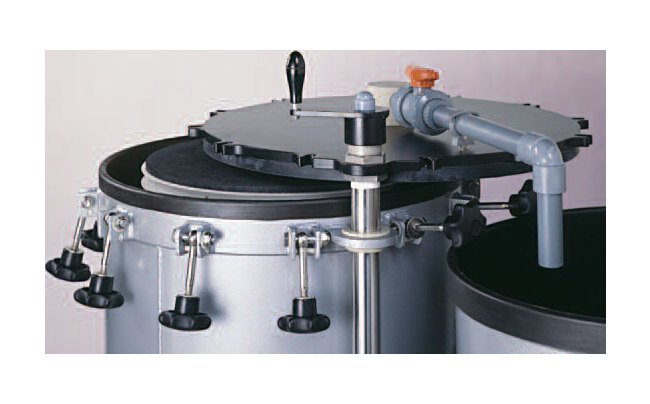

Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes. An air release valve positioned on the cover, is also used as the return line during pre-coating.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard.All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all CPVC construction.Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Pump Pump

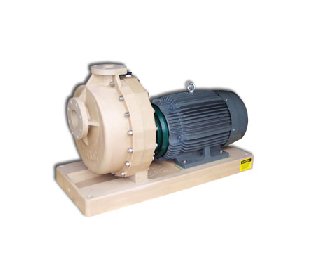

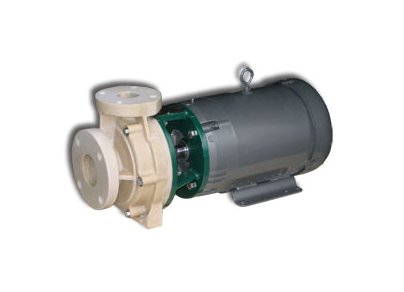

Fybroc fiberglass centrifugal pumps are standard. Mechanical seal options are single CRS- 35/B with silicon carbide faces or double water flush.
Slurry Tank Specifications Slurry Tank Specifications
Slurry tanks are mild steel construction with an interior of hard rubber (3 mm) and an exterior of corrosion resistant paint (2 coats). They are used to facilitate pre-coating and addition of activated carbon (if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media or maintenance. Pre-coating provides superior filtration and extends the life of the filter media.
Specifications Filter Media Diameter
19 "
Specifications Filtration Surface Area
89 ft²
Specifications Height
59 "
Specifications Length
59 "
Specifications Motor Tefc
5 HP Fybroc Series 1530
Specifications Number Of Filter Media
50
Specifications Open Pumping Capacity
13,000 gph
Specifications Precoated Flow Rate Filtering Capacity
9,000 gph
Specifications Pump Options
FYBROC 1530 Fiberglass Pump - Standard
Specifications Sludge Holding Capacity
2.38 ft³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications System Connections Discharge
2.0" NPT (Female)
Specifications System Connections Suction
3" NPT (Female)
Specifications Weight
1280 lbs
Specifications Width
44 "
Vd Lid Assembly Vd Lid Assembly
VD Lid assembly is used to tighten down the disc stack verses the cover. (Optional)
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
