The Mefiag Jumbo 30000-HFS Horizontal Disc Filtration System is engineered for maximum efficiency and durability in demanding filtration applications. With a filtering capacity of 30,000 gph and a corrosion-resistant construction, this system offers a large sludge holding capacity and superior filtration performance. Featuring a heavy-duty FRP pump, CPVC plumbing, and NEMA 4X starters, it meets the stringent standards of institutional buyers while ensuring reliable operation in the most severe conditions.
Product Specifications
Features Features
Single chamber flow rates to 30,000 GPHMaximum surface area for more efficient filtration and fewer change outs (1 sq. ft. per 100 GPH)Large sludge holding capacityCorrosion resistant construction for use in most severe applicationsHeavy duty FRP pump/1750 rpmCPVC plumbingPolypropylene discsPowder coated steel frameNEMA 4X water tight, corrosion resistant starter with soft start for non slurry filterNEMA 4X starter with Variable Frequency Drive (VFD) for filter with slurry optionTemperature to 190ºF (90ºC)Mechanical lifting device for lid
Filter Filter
Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard.All systems are mounted on a powder coated structural steel frame with polypropylene feet for leveling.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all CPVC construction.Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Pump Pump

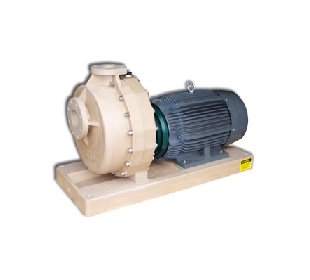

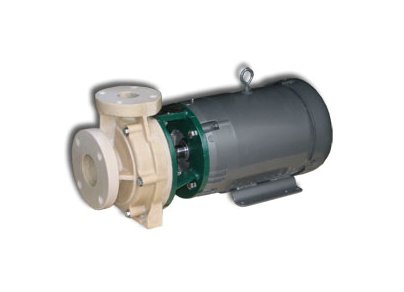

Fybroc fiberglass centrifugal 1530 Series 4x6x10 pump with 1750 rpm, 20 h.p. motor is standard.
Slurry Tank Specifications Slurry Tank Specifications
Slurry tanks are mild steel construction with an interior of hard rubber (3mm) and an exterior of corrosion resistant paint. They are used to facilitate pre-coating and addition of activated carbon(if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media from maintenance. Pre-coating provides superior filtration and extends the life ofthe filter media.
Specifications Filter Media Diameter
33 "
Specifications Filtration Surface Area
347 ft²
Specifications Height
88 "
Specifications Length
93 "
Specifications Motor Starter
Motor starters are NEMA 4X water tight, corrosion resistant with soft start. Variable frequency drive (VFD) is provided with systems that have a slurry tank.
Specifications Motor Tefc
20 HP Fybroc Series 1530
Specifications Number Of Filter Media
59
Specifications Open Pumping Capacity
36,000 gph
Specifications Precoated Flow Rate Filtering Capacity
30,000 gph
Specifications Pump Options
FYBROC 1530 Fiberglass Pump - Standard
Specifications Sludge Holding Capacity
7.86 ft³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications System Connections Discharge
4"
Specifications System Connections Suction
4"
Specifications Weight
3000 lbs
Specifications Width
70 "
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber, cover and slurry tank are outside rubber lined, the base is powder coated.
