Mefiag Polypropylene Horizontal Disc Filtration System 0640-PPM & PPM-SY
Mefiag Polypropylene Horizontal Disc Filtration System 0640-PPM & PPM-SY
SKU:FIL-e2b70d
High-performance Mefiag Polypropylene Filtration Systems for efficient electrolyte filtration processes.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Mefiag Polypropylene Horizontal Disc Filtration System 0640-PPM & PPM-SY
$3,499.99
Quantity: 1
Claim Your Seller Account
Mefiag Polypropylene Horizontal Disc Filtration System 0640-PPM & PPM-SY
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

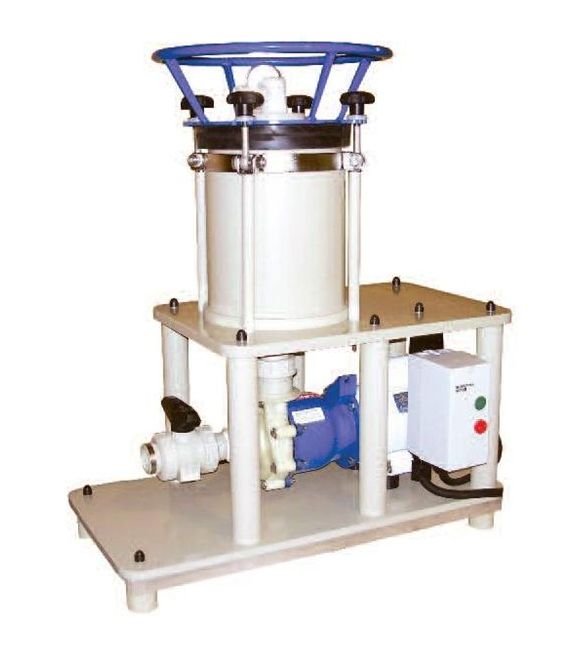

The Mefiag Polypropylene Horizontal Disc Filtration Systems 0640-PPM & PPM-SY are meticulously designed for exceptional performance in electrolyte filtration processes. Featuring all-polypropylene construction, magnetic drive pump, and a high filer media count, these systems offer a robust filtering solution. With a pre-coated flow rate of 1600 gph, sludge holding capacity of 255 in³, and temperatures up to 180°F, they ensure efficiency and reliability in handling nickel, copper, and zinc electrolytes. The unitized pack design allows for easy maintenance, making these systems ideal for plating tanks ranging from 200 to 400 gallons.
Product Specifications
Features And Benefits Features And Benefits
All polypropylene construction withstands highly acidic environments Magnetic drive pump with silicone carbide bearings is standard "Unitized Pack" Large sludge holding capacity Low disposal cost (100 GPH per sq/ft of surface area) High efficiency Pre-coated flow rate to 1600 GPH Temperatures to 180 °F(82 °C) Specific gravities to 1.5 Shipped ready for immediate operation
Filter Filter
The disc assembly is all polypropylene. All filters discs are configured as a "unitized pack" to allow easy removal for maintenance. The unitized pack will consist of a bottom plate, bottom gasket, media, center post, pressure plate, and locking nut with handles.Filter media selected for the application is placed between the rigid polypropylene discs. Ten (10) micron cellulose is standard. Carbon/cellulose (10 micron) and polypropylene of various densities are available.
Magnetic Drive Pump Magnetic Drive Pump
A polypropylene, magnetic drive pump Model PM is furnished with a 1HP TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. The magnetic switch motor starter is housed in a liquid tight NEMA 4X enclosure.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Slurry Tank Specifications Slurry Tank Specifications

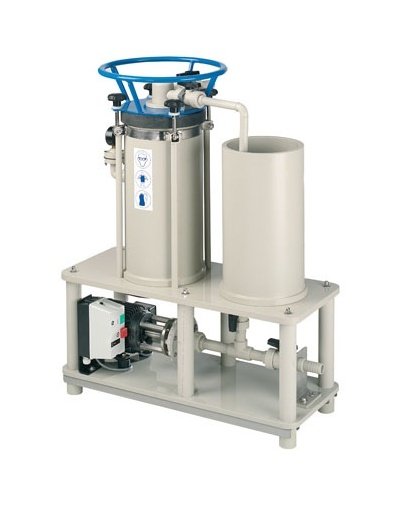

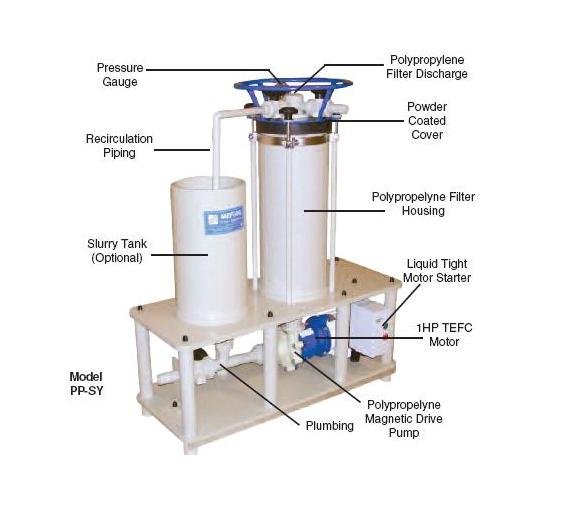

The slurry tank is all polypropylene construction and is furnished with Model PPM-SY units. Slurry tanks are used to facilitate pre-coating, addition of carbon (if required), self-priming of pump and solution make-up. These are sized to store the complete capacity of the filter chamber during changing of the media or maintenance.
Specifications Approximate Crated Net Weight
370 lbs
Specifications Approximate Height
47 "
Specifications Approximate Length
40 "
Specifications Approximate Width
16 "
Specifications Filter Media Diameter
8-1/8 "
Specifications Filtration Surface Area
16 ft²
Specifications Hose Connection Discharge
1-1/4 "
Specifications Hose Connection Suction
1-1/2 "
Specifications Hose Length
10 ft
Specifications Manufacturer
Mefiag
Specifications Number Of Filter Media
41
Specifications Open Pumping Capacity
2,400 gph
Specifications Precoated Flow Rate Filtering Capacity
1,600 gph
Specifications Pump Options
PPM - Magnetic End Suction Pump - Standard | PPQ - Magnetic Self-Priming Pump - Adder | PPS - Mechanical Seal CRS-40-PP - No Extra Charge
Specifications Sludge Holding Capacity
255 in³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications Tefc Motor
1 hp

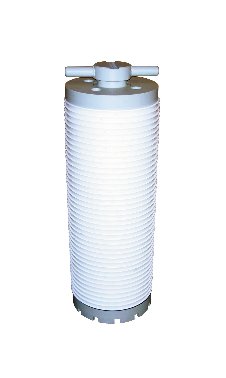

Unitized Pack Unitized Pack
The disc assembly is all polypropylene. All filters discs are configured as a "unitized pack" to allow easy removal for maintenance. The unitized pack will consist of a bottom plate, bottom gasket, media, center post, pressure plate, and locking nut with handles.Filter media selected for the application is placed between the rigid polypropylene discs. Ten (10) micron cellulose is standard. Carbon/cellulose (10 micron) and polypropylene of various densities are available.
