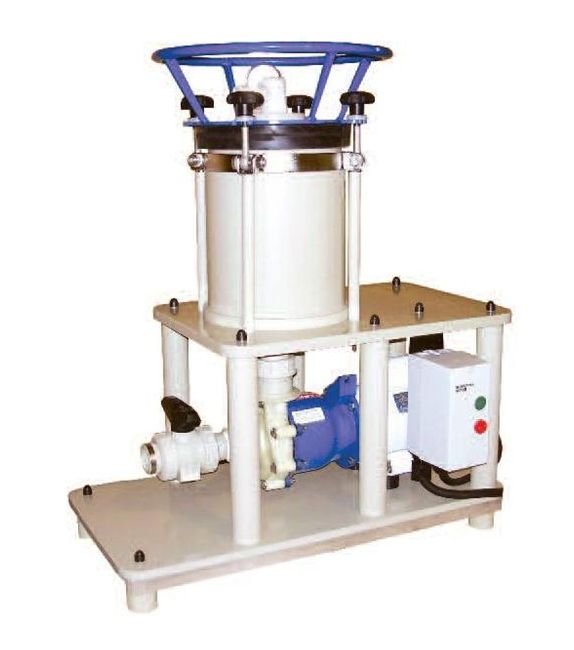

The Mefiag Series 0310-PPM and 0310-PPM-SY Horizontal Disc Filtration Systems are designed for plating tanks ranging from 200 to 400 gallons, offering high efficiency and quality. These systems feature all polypropylene construction to withstand acidic environments, a magnetic drive pump for superior performance, and a unitized pack for easy maintenance. With a filtration surface area of 7 ft², sludge holding capacity of 123 in³, and operating temperatures up to 180°F, these systems are ideal for filtering nickel, copper, and zinc electrolytes with pre-coated flow rates up to 600 gph.
Product Specifications
Features And Benefits Features And Benefits
All polypropylene construction withstands highly acidic environments Magnetic drive pump with silicone carbide bearings is standard "Unitized Pack" Large sludge holding capacity Low disposal cost (100 GPH per sq/ft of surface area) High efficiency Pre-coated flow rate to 600 GPH Temperatures to 180 °F(82 °C) Specific gravities to 1.5 Shipped ready for immediate operation
Filter Filter
The disc assembly is all polypropylene. All filters discs are configured as a "unitized pack" to allow easy removal for maintenance. The unitized pack will consist of a bottom plate, bottom gasket, media, center post, pressure plate, and locking nut with handles.Filter media selected for the application is placed between the rigid polypropylene discs. Ten (10) micron cellulose is standard. Carbon/cellulose (10 micron) and polypropylene of various densities are available.
Magnetic Drive Pump Magnetic Drive Pump
A polypropylene, magnetic drive pump Model PM is furnished with a 1HP TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. The magnetic switch motor starter is housed in a liquid tight NEMA 4X enclosure.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Slurry Tank Specifications Slurry Tank Specifications

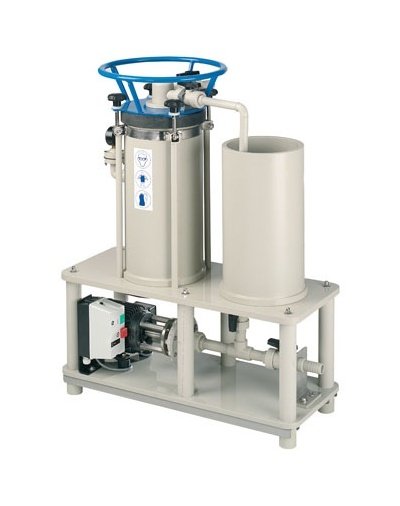

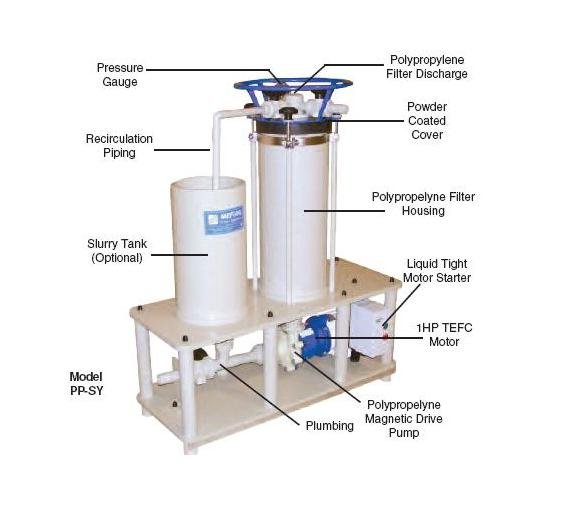

The slurry tank is all polypropylene construction and is furnished with Model PPM-SY units. Slurry tanks are used to facilitate pre-coating, addition of carbon (if required), self-priming of pump and solution make-up. These are sized to store the complete capacity of the filter chamber during changing of the media or maintenance.
Specifications Approximate Crated Net Weight
290 lbs
Specifications Approximate Height
36 "
Specifications Approximate Length
40 "
Specifications Approximate Width
16 "
Specifications Filter Media Diameter
8-1/8 "
Specifications Filtration Surface Area
7 ft²
Specifications Hose Connection Discharge
1-1/4 "
Specifications Hose Connection Suction
1-1/2 "
Specifications Hose Length
10 ft
Specifications Manufacturer
Mefiag
Specifications Number Of Filter Media
20
Specifications Open Pumping Capacity
2,400 gph
Specifications Precoated Flow Rate Filtering Capacity
600 gph
Specifications Pump Options
PPM - Magnetic End Suction Pump - Standard | PPQ - Magnetic Self-Priming Pump - Adder | PPS - Mechanical Seal CRS-40-PP - No Extra Charge
Specifications Sludge Holding Capacity
123 in³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications Tefc Motor
1 hp

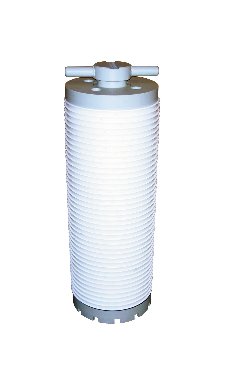

Unitized Pack Unitized Pack
The disc assembly is all polypropylene. All filters discs are configured as a "unitized pack" to allow easy removal for maintenance. The unitized pack will consist of a bottom plate, bottom gasket, media, center post, pressure plate, and locking nut with handles.Filter media selected for the application is placed between the rigid polypropylene discs. Ten (10) micron cellulose is standard. Carbon/cellulose (10 micron) and polypropylene of various densities are available.
