Mefiag Polypropylene Horizontal Disc Filtration System Series 2500-PPQ & 2500-PPQ-SY
Mefiag Polypropylene Horizontal Disc Filtration System Series 2500-PPQ & 2500-PPQ-SY
SKU:FIL-7bb897
Efficient polypropylene filtration system for electrolytes with self-priming pump & large sludge capacity.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Mefiag Polypropylene Horizontal Disc Filtration System Series 2500-PPQ & 2500-PPQ-SY
$5,499.99
Quantity: 1
Claim Your Seller Account
Mefiag Polypropylene Horizontal Disc Filtration System Series 2500-PPQ & 2500-PPQ-SY
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

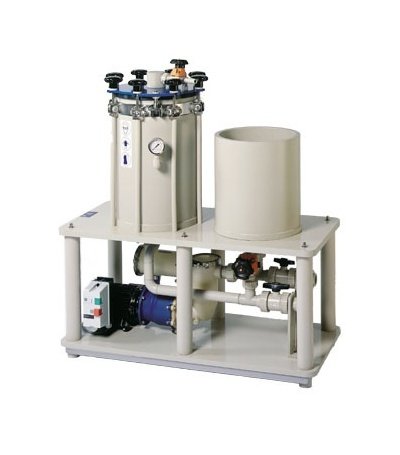

The Mefiag Series 2500-PPQ and 2500-PPQ-SY Horizontal Disc Filtration Systems are designed for efficient filtration of nickel, copper, and zinc electrolytes with capacities up to 2,500 gph. Featuring all polypropylene construction, a self-priming magnetic drive pump, and a 'Unitized Pack' disc assembly for easy maintenance, these systems provide high efficiency, large sludge holding capacity, and temperatures up to 180°F. With a robust filtration surface area of 25 ft² and a sludge holding capacity of 672 in³, these systems ensure superior performance for plating tanks up to 1,000 gallons.
Product Specifications
Features And Benefits Features And Benefits
All polypropylene construction Self-priming magnetic drive pump "Unitized Pack" disc assembly Large sludge holding capacity Low disposal cost High efficiency Pre-coated flow rates to 2500 gph Temperatures to 180°F(82°C)
Filter Filter
The disc assembly is all polypropylene with threaded center core and top nut for locking the discs into a one-piece unitized pack. Bottom support plate is designed for uniform liquid distribution while the top support plate provides for recirculation of the liquid to the filter media.A locking/lifting handle is furnished to secure the lock nut into place and to facilitate the easy removal and replacement of the unitized pack.Filter media selected for the application is placed between the rigid polypropylene discs. Ten (10) micron cellulose is standard. Carbon/cellulose (10 micron) and polypropylene of various densities are available.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Self Priming Magnetic Drive Pump Self Priming Magnetic Drive Pum
The slurry tank is all polypropylene construction and is furnished with Model PPQ-SY units. Slurry tanks are used to facilitate pre-coating, addition of carbon (if required), and solution makeup. These are sized to store the complete capacity of the filter chamber during changing of the media or maintenance. Inlet/outlet connections are located at the end of the mounting base.
Slurry Tank Specifications Slurry Tank Specifications
The slurry tank is all polypropylene construction and is furnished with Model PPQ-SY units. Slurry tanks are used to facilitate pre-coating, addition of carbon (if required), and solution makeup. These are sized to store the complete capacity of the filter chamber during changing of the media or maintenance. Inlet/outlet connections are located at the end of the mounting base.
Specifications Approximate Crated Weight
480 lbs
Specifications Approximate Height
48 "
Specifications Approximate Length
43 "
Specifications Approximate Width
20 "
Specifications Filter Media Diameter
12 "
Specifications Filtration Surface Area
25 ft²
Specifications Hose Connection Discharge
1-1/2 in Outlet
Specifications Hose Connection Suction
1-1/2 in Inlet
Specifications Hose Length
20 ft
Specifications Manufacturer
Mefiag
Specifications Motor Tefc
1 hp
Specifications Number Of Filter Media
40
Specifications Open Pumping Capacity
3,100 gph
Specifications Precoated Flow Rate Filtering Capacity
2,500 gph
Specifications Pump Options
PPQ - Magnetic Self-Priming Pump - Standard | PPS - Mechanical Seal CRS-40-PP - No Extra Charge
Specifications Sludge Holding Capacity
672 in³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder

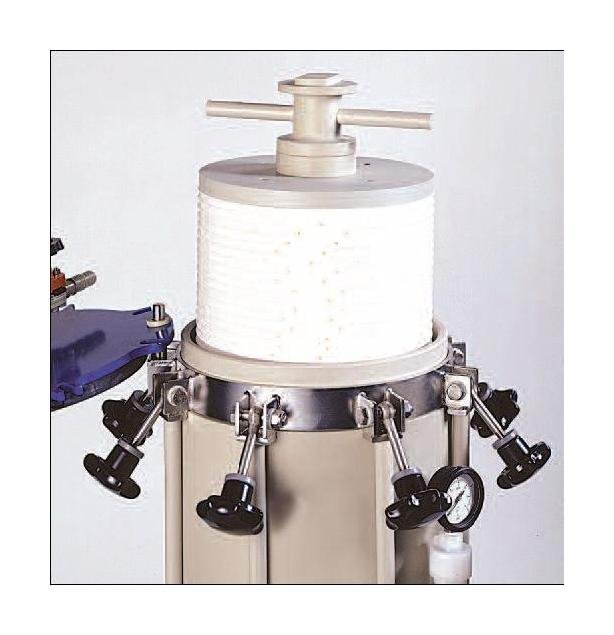

Unitized Pack Unitized Pack
The disc assembly is all polypropylene with threaded center core and top nut for locking the discs into a one-piece unitized pack. Bottom support plate is designed for uniform liquid distribution while the top support plate provides for recirculation of the liquid to the filter media.A locking/lifting handle is furnished to secure the lock nut into place and to facilitate the easy removal and replacement of the unitized pack.Filter media selected for the application is placed between the rigid polypropylene discs. Ten (10) micron cellulose is standard. Carbon/cellulose (10 micron) and polypropylene of various densities are available.
