Mefiag Polypropylene Horizontal Disc Filtration Systems
Mefiag Polypropylene Horizontal Disc Filtration Systems
SKU:FIL-316944
High-performance Mefiag Filtration Systems for reliable electrolyte filtration. Ideal for nickel, copper, and zinc processing.
Regular price
$5,500.00
Regular price
Sale price
$5,500.00
Unit price
per
Initiate Order
Mefiag Polypropylene Horizontal Disc Filtration Systems
$5,500.00
Quantity: 1
Claim Your Seller Account
Mefiag Polypropylene Horizontal Disc Filtration Systems
$5,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

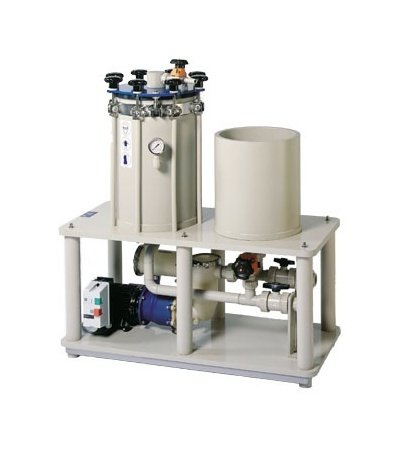

The Mefiag Series 3500-PPQ and 3500-PPQ-SY Horizontal Disc Filtration Systems are designed for efficient filtration of nickel, copper, and zinc electrolytes, with capacities up to 5,400 gph. Featuring all polypropylene construction, self-priming magnetic drive pump, and 'Unitized Pack' disc assembly, these systems offer high performance, large sludge holding capacity, and temperatures up to 180°F. With a focus on ease of maintenance and optimal filtration, Mefiag sets the standard for quality and reliability in horizontal disc filters.
Product Specifications
Features And Benefits Features And Benefits
All polypropylene construction Self-priming magnetic drive pump "Unitized Pack" disc assembly Large sludge holding capacity Low disposal cost High efficiency Pre-coated flow rates to 3500 gph Temperatures to 180°F(82°C)
Filter Filter
The filter chamber is constructed of all polypropylene with bottom inlet and bottom discharge. Discharge is o-ring sealed. A powder coated support plate provides added strength. Chamberâs have side mounted inlet/outlet connections for closer mounting to the tank.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. An air release diaphragm valve is provided.A stainless steel pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Base is polypropylene with stainless steel channel structure and polypropylene feet. Casters are available upon request.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Self Priming Magnetic Drive Pump Self Priming Magnetic Drive Pum
A polypropylene, self-priming magnetic drive pump Model PMSP is furnished with a TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. The magnetic switch motor starter is housed in a liquid tight enclosure.
Slurry Tank Specifications Slurry Tank Specifications
The slurry tank is all polypropylene construction and is furnished with Model PPQ-SY units. Slurry tanks are used to facilitate pre-coating, addition of carbon (if required), and solution makeup. These are sized to store the complete capacity of the filter chamber during changing of the media or maintenance. Inlet/outlet connections are located at the end of the mounting base.
Specifications Approximate Crated Weight
550 lbs
Specifications Approximate Height
53 "
Specifications Approximate Length
43 "
Specifications Approximate Width
20 "
Specifications Filter Media Diameter
12 "
Specifications Filtration Surface Area
32 ft²
Specifications Hose Connection Discharge
1-1/2 in Outlet
Specifications Hose Connection Suction
2 in Inlet
Specifications Hose Length
20 ft
Specifications Manufacturer
Mefiag
Specifications Motor Tefc
2 hp
Specifications Number Of Filter Media
48
Specifications Open Pumping Capacity
5,400 gph
Specifications Precoated Flow Rate Filtering Capacity
3,500 gph
Specifications Pump Options
PPQ - Magnetic Self-Priming Pump - Standard | PPS - Mechanical Seal CRS-40-PP - No Extra Charge
Specifications Sludge Holding Capacity
806 in³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Unitized Pack Unitized Pack

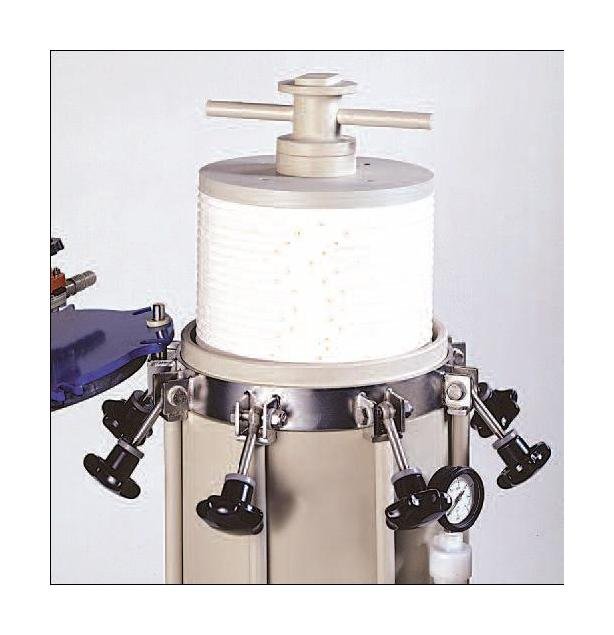

The disc assembly is all polypropylene with threaded center core and top nut for locking the discs into a one-piece unitized pack. Bottom support plate is designed for uniform liquid distribution while the top support plate provides for recirculation of the liquid to the filter media.A locking/lifting handle is furnished to secure the lock nut into place and to facilitate the easy removal and replacement of the unitized pack.Filter media selected for the application is placed between the rigid polypropylene discs. Ten (10) micron cellulose is standard. Carbon/cellulose (10 micron) and polypropylene of various densities are available.
