Mefiag Polypropylene Pleated Filtration System - Series MKF
Mefiag Polypropylene Pleated Filtration System - Series MKF
SKU:FIL-8e2063
High-performance Mefiag Pleated Filtration System - Series MKF, 4500 gph flow rate, 27 ft² filtration area, solid PP construction, low maintenance.
Regular price
$5,599.99
Regular price
Sale price
$5,599.99
Unit price
per
Initiate Order
Mefiag Polypropylene Pleated Filtration System - Series MKF
$5,599.99
Quantity: 1
Claim Your Seller Account
Mefiag Polypropylene Pleated Filtration System - Series MKF
$5,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

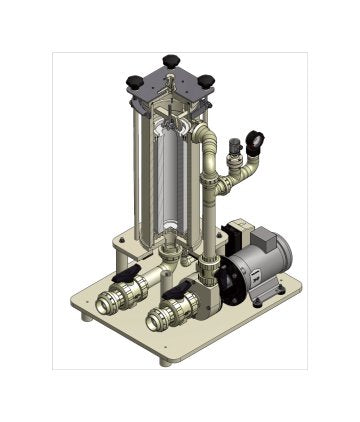

The Mefiag Series MKF Pleated Filtration System is a high-performance solution designed for industrial applications. Featuring solid Polypropylene construction, this system offers a flow rate of 4500 gph and 27 ft² of filtration surface area. The high-performance pleated element ensures greater dirt holding capacity with minimal maintenance. With a compact design and easy cartridge change-out, this system provides efficient filtration for a wide range of applications. The included solid PP mechanical seal pump with silicon carbide seal ensures reliability and low pressure drop, making it an ideal choice for demanding environments.
Product Specifications
Features And Benefits Features And Benefits
Solid PP constructionCompact Design Small footprintSingle 6"Ã cartridge flow capacity to 4500 GPHEasy change out (takes only minutes to change out element) Greater surface areaSolid PP mechanical seal pump with silicon carbide sealHigh efficiencyEasy maintenance proceduresLow pressure dropShipped for immediate operation
Filter Filter

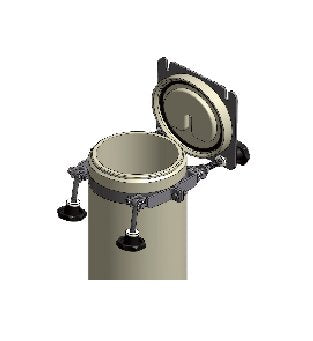

The filter chamber is constructed of solid PP.Stainless steel bolts with hand wheels hold the solid polypropylene cover in place. An air release diaphragm valve is provided.A stainless steel pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Base is PP with stainless steel channel support structure and PP feet. Casters are available upon request.
Sealed Housed Filter Element Sealed Housed Filter Element
Exclusive Mefiag sealed housed filter element chamber system is constructed from solid polypropylene. System ensures that 100% of the solution from the process tank goes to the center of the filter element to eliminate bypass.
Specifications Approximate Crated Net Weight
400 lbs
Specifications Approximate Height
45.5 "
Specifications Approximate Length
31.5 "
Specifications Approximate Width
25.6 "
Specifications Connections Suction And Discharge
See Drawing
Specifications Filter Media
(1) 6" Ã x 20" L PP Pleated Element - #42510020;
Specifications Filtration Surface Area
27 ft²
Specifications Flanged Inlet
2 "
Specifications Flanged Outlet
1-1/2 "
Specifications Flow Rate Filtering Capacity
4500 gph
Specifications High Performance Pleated Element

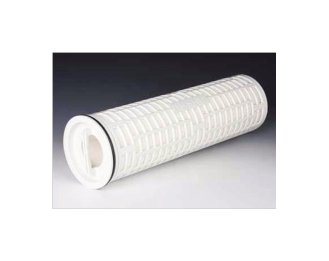

Solids are contained within the filter element100 pure polypropylene10 micron standard27 square feet of filtration areaGreater dirt holding capacityInside-out flow
Specifications Hose Barbs Inlet
2-1/2 "
Specifications Hose Barbs Outlet
2 "
Specifications Manufacturer
Mefiag
Specifications Motor Starter
The motor starter is mounted in corrosion resistant water tight NEMA 4X enclosure.
Specifications Note
For inlet and outlet connections, reference the dimensions
Specifications Optional Magnetic Drive Pump
Optional polypropylene magnetic drive pump Model PM is furnished with 3HP TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. Self-priming Model PMSP pump is also available.
Specifications Piping Valves And Connections
Piping, valves, and connections are all hard pipe PP.
Specifications Pump
Model CRS polypropylene centrifugal pump is equipped with TEFC flanged mounted motor. Mechanical seal is Mefiag CRS-25B with silicon carbide faces. Pump shaft is stainless steel with other shafts available.
Specifications Scope Of Supply
Filter chamber (Polypropylene) 6"Ã pleated filter = 27 sq. ft. of surface areaMefiag CRS-110-PP mechanical seal pump with 3 HP 3500 RPM motor and silicon carbide seal standardLot of PP plumbing and valves (does not include plumbing to and from filter system). Chamber bleed-off and drain to have hose barb fittingsPolypropylene base plate with feetNEMA 4X motor starterPressure gauge
Specifications Tefc Motor
3 hp
Specifications Threaded Inlet
2 "
Specifications Threaded Outlet
1-1/2 "
