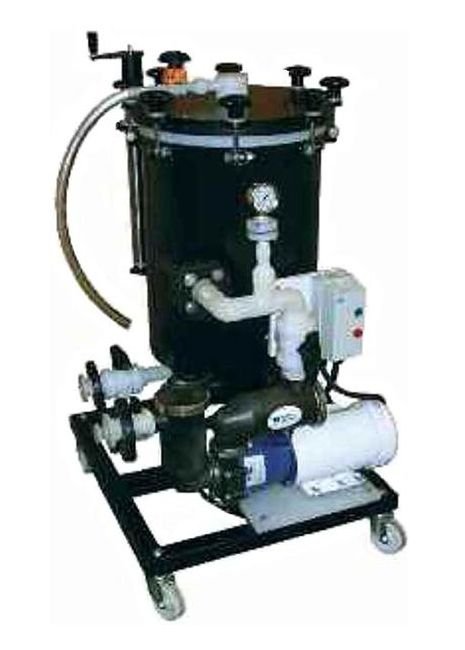

The Mefiag PVDF Chromic Acid Disc Filtration System is a high-efficiency filtration solution designed for processes involving chromic acid. With PVDF construction, PVDF self-priming magnetic drive pump, and reusable media, this system is ideal for applications requiring temperatures up to 190°F. Its innovative design allows for easy maintenance and operation, making it a reliable choice for plating tanks from 1,000 to 3,300 gallons.
Product Specifications
Features And Benefits Features And Benefits
PVDF construction withstands highly acidic environments PVDF self-priming magnetic drive pump with silicone carbide bearings is standard Reusable media 100 GPH per sq/ft of surface area Suitable for chromic acid Filter assembly can be removed in its entirety Temperatures to 190°F (90°C) Pre-coated flow rate to 9000 GPH Large sludge holding capacity Low disposal cost High efficiency Specific gravities to 1.5 Shipped ready for immediate operation Powder coated steel frame with casters for easy handling NEMA 4 water tight, corrosion resistant starter Mechanical cover lifting device for easy access to filter pack (not available on the 2500 Series)
Filter Filter

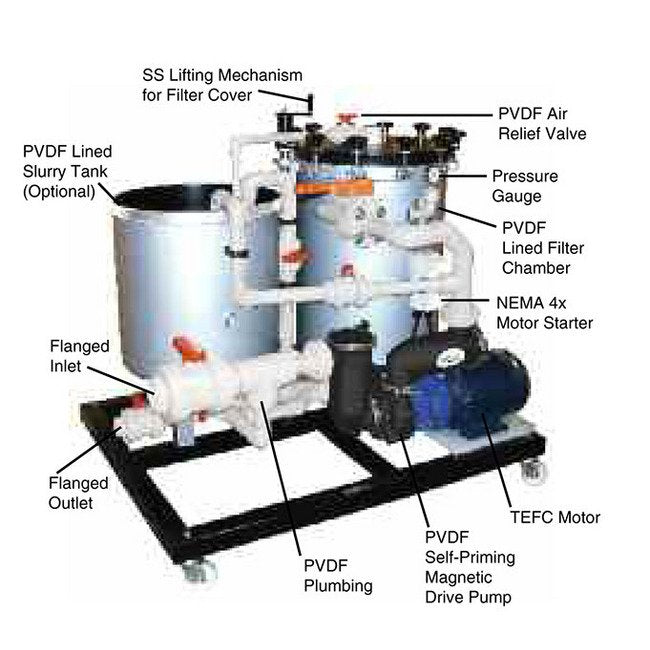

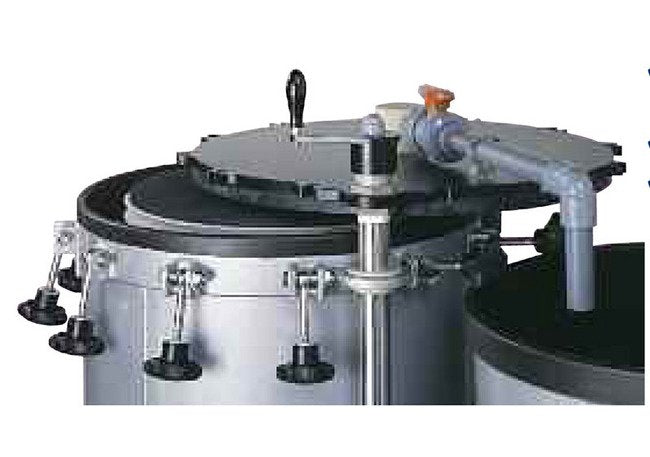

Filter chambers are constructed of mild steel with a PVDF lining on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with hand wheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Reusable filter media suited for the application is placed between the rigid PVDF filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron polyester is standard.All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Pvdf Pump Options Pvdf Pump Options
A PVDF self-priming magnetic drive pump Model KMSP is standard. PVDF mechanical seal pump is available. High purity silicon carbide bearings and Viton O-rings are standard on magnetic drive pumps. Silicon carbide with Viton O-ring provided with mechanical seal pump. The NEMA 4x motor starter is housed in a liquid tight enclosure.
Specifications Approximate Crated Net Weight
975 lbs
Specifications Approximate Height
53 "
Specifications Approximate Length
39 "
Specifications Approximate Width
32 "
Specifications Filter Media Diameter
19 "
Specifications Filtration Surface Area
62 ft
Specifications Flanged Connections Discharge
1-1/2 in Outlet
Specifications Flanged Connections Suction
2 in Inlet
Specifications Manufacturer
Mefiag
Specifications Number Of Filter Media
35
Specifications Piping Valves And Connections
Piping, valves, and connections are all hard pipe PVDF.
Specifications Precoated Flow Rate Filtering Capacity
6,500 gph
Specifications Tefc Motor
7.5 hp
