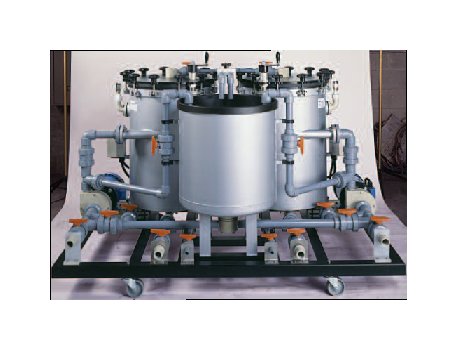

Mefiag Series 13000-LSD-SY Horizontal Disc Filtration System
Mefiag Series 13000-LSD-SY Horizontal Disc Filtration System
SKU:FIL-25ab06
High-performance Mefiag Horizontal Disc Filtration System for efficient institutional filtration.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Mefiag Series 13000-LSD-SY Horizontal Disc Filtration System
$18,999.00
Quantity: 1
Claim Your Seller Account
Mefiag Series 13000-LSD-SY Horizontal Disc Filtration System
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mefiag Series 13000-LSD-SY Horizontal Disc Filtration System is a high-performance solution designed for efficient filtration in institutional and industrial settings. With a precoated flow rate of 13,000 gph and a large sludge holding capacity, this system provides optimal bath turnover rates. Featuring corrosion-resistant construction and a wide range of flow rates, it can withstand severe applications. The system also includes a mechanical lifting device for easy maintenance access, NEMA 4 water-tight starter, and a choice of filter media for tailored filtration needs.
Product Specifications
Features Features
Horizontal disc technology for greater surface area and maximum efficiency.Large sludge holding capacityLow disposal cost.Wider range of flow rates for optimum bath turnover rates.Corrosion resistant construction for use in most severe applications.Temperatures to 190ºF(90ºC).Mechanical lifting device for easy access to filter pack.All polypropylene pump.CRS mechanical seal with silicon carbide faces.Powder coated steel frame with casters for easy handling.Choice of cellulose, carbon/cellulose, and reusable polypropylene media.NEMA 4 water tight, corrosion resistant starter.Optional lifting device for easy pack removal
Filter Filter

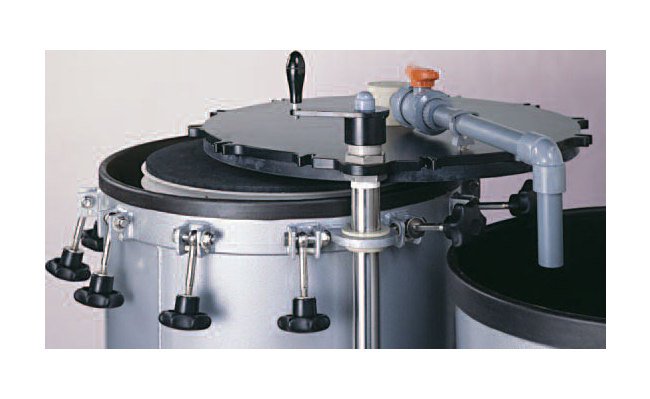

Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard. All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all CPVC construction. Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Pump Pump
Polypropylene centrifugal pumps are equipped with TEFC, flange mounted motors. Mechanical seal is MEFIAG CRS-25/B with silicon carbide faces. Pump shaft is stainless steel. The motor starter is mounted in corrosion resistant, water tight NEMA 4 enclosure. The 15,000-LS Series, Fybroc fiberglass centrifugal pumps are standard. Mechanical seal options are single CRS- 35/B with silicon carbide faces or double water flush.
Slurry Tank Specifications Slurry Tank Specifications
Slurry tanks are mild steel construction with an interior of hard rubber (3 mm) and an exterior of corrosion resistant paint (2 coats). They are used to facilitate pre-coating and addition of activated carbon (if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media or maintenance.Pre-coating provides superior filtration and extends the lifeof the filter media.
Specifications Filter Media Diameter
19 "
Specifications Filtration Surface Area
124 ft²
Specifications Height
55 "
Specifications Hose Connections Suction Discharge
2 " | 2-1/2 "
Specifications Hose Length Suction And Discharge
10 ft (Two of Each)
Specifications Length
90 "
Specifications Manufacturer
Mefiag
Specifications Motor
5 HP TEFC (Two Motors)
Specifications Number Of Filter Media
70
Specifications Open Pumping Capacity
14,400 gph
Specifications Precoated Flow Rate Filtering Capacity
13,000 gph
Specifications Pump Options
CRS Pump with Mechanical Seal - Standard | PPM - Magnetic End Suction Pump- Adder | PPQ - Magnetic Self-Priming Pump - Adder
Specifications Sludge Holding Capacity
5.94 ft³
Specifications Slurry Tank Option
WITH SLURRY TANK - Standard
Specifications Weight
1900 lbs
Specifications Width
55 "
Vd Lid Assembly Vd Lid Assembly
VD Lid assembly is used to tighten down the disc stack verses the cover. (Optional)
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
