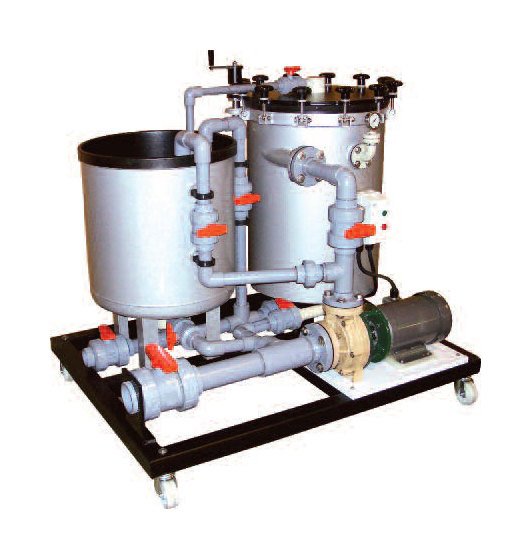

The Mefiag Series 15000-HFS Horizontal Disc Filtration System is designed to meet the rigorous filtration needs of industrial applications. With a filtering capacity of 15,000 gph and a filtration surface area of 150 ft², this system ensures efficient removal of impurities. Featuring a mild steel construction with hard rubber lining and corrosion-resistant paint, it offers durability and longevity. The system is equipped with a 10 HP Fybroc Series 1530 motor and Fybroc fiberglass centrifugal pump for reliable operation. Compliant with industry standards, this filtration system is a powerhouse for demanding filtration tasks.
Product Specifications
Features Features

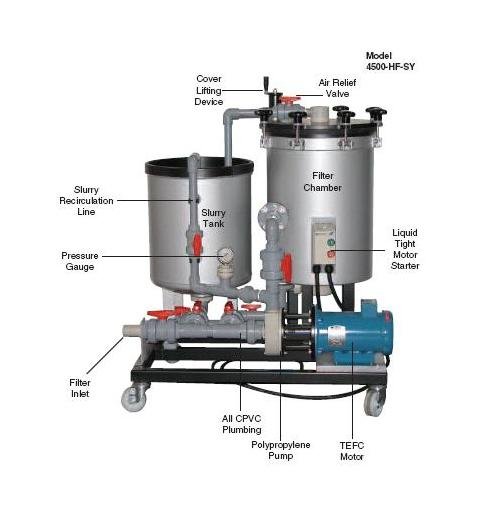

Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes. An air release valve positioned on the cover, is also used as the return line during pre-coating.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard.All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Filter Filter
Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes. An air release valve positioned on the cover, is also used as the return line during pre-coating.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard.All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all CPVC construction.Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Pump Pump

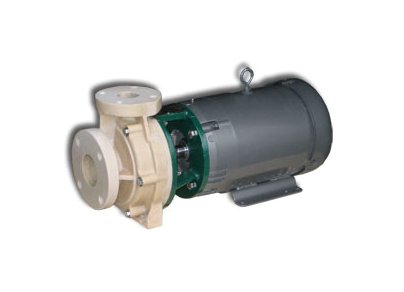

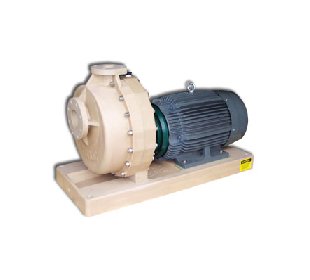

Fybroc fiberglass centrifugal pumps are standard. Mechanical seal options are single CRS- 35/B with silicon carbide faces or double water flush.
Slurry Tank Specifications Slurry Tank Specifications
Slurry tanks are mild steel construction with an interior of hard rubber (3 mm) and an exterior of corrosion resistant paint (2 coats). They are used to facilitate pre-coating and addition of activated carbon (if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media or maintenance. Pre-coating provides superior filtration and extends the life of the filter media.
Specifications Filter Media Diameter
22 "
Specifications Filtration Surface Area
150 ft²
Specifications Height
79 "
Specifications Length
59 "
Specifications Motor Tefc
10 HP Fybroc Series 1530
Specifications Number Of Filter Media
60
Specifications Open Pumping Capacity
18,000 gph
Specifications Precoated Flow Rate Filtering Capacity
15,000 gph
Specifications Pump Options
FYBROC 1530 Fiberglass Pump - Standard
Specifications Sludge Holding Capacity
2.72 ft³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications System Connections Discharge
3" NPT (Female)
Specifications System Connections Suction
3" NPT (Female)
Specifications Weight
1300 lbs
Specifications Width
44 "

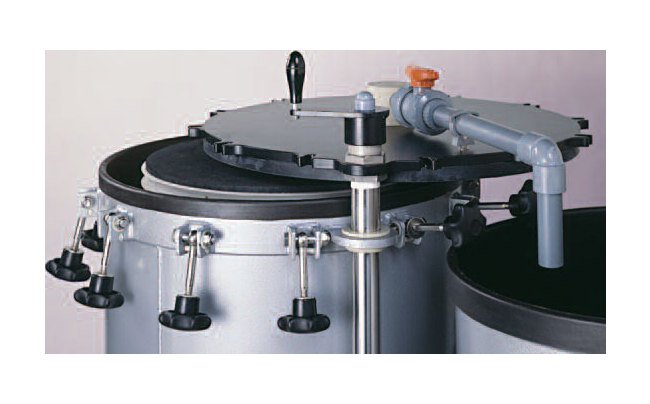

Vd Lid Assembly Vd Lid Assembly
VD Lid assembly is used to tighten down the disc stack verses the cover. (Standard)
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
