Mefiag Series 18000-HFD-SY Horizontal Disc Filtration System
Mefiag Series 18000-HFD-SY Horizontal Disc Filtration System
SKU:FIL-8ab6d5
Efficient and durable filtration system meeting industrial standards for institutional buyers.
Regular price
$13,499.00
Regular price
Sale price
$13,499.00
Unit price
per
Initiate Order
Mefiag Series 18000-HFD-SY Horizontal Disc Filtration System
$13,499.00
Quantity: 1
Claim Your Seller Account
Mefiag Series 18000-HFD-SY Horizontal Disc Filtration System
$13,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

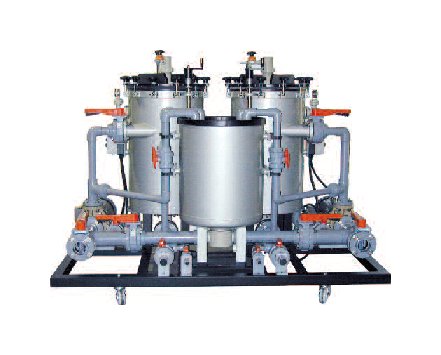

The Mefiag Series 18000-HFD-SY Horizontal Disc Filtration System is designed to meet the stringent filtration needs of both industrial and governmental institutions. With a pre-coated flow rate of 18,000 gph, a large sludge holding capacity, and superior corrosion resistance, this system ensures efficient and effective filtration. It features a durable FRP pump with mechanical seals, a choice of filter media materials, and a powder-coated steel frame for easy handling. With compliance to industry standards and sturdy construction, this filtration system is a reliable choice for demanding applications.
Product Specifications
Features Features
Flow rates to 18,000 GPHHorizontal disc technologyMaximum surface area (1 sq. ft. per 100 GPH!)Large sludge holding capacitySuperior corrosion resistanceFRP pump with choice of mechanical sealsTemperature to 190ºF (90ºC)Low disposal costChoice of cellulose, carbon/cellulose or reusable polypropylene filter mediaPowder coated steel frame with casters for easy handlingNEMA 4 water tight, corrosion resistant starterMechanical cover lifting device for easy access to filter packBottom plate and lifting rod for quick change of disc stack standard
Filter Filter

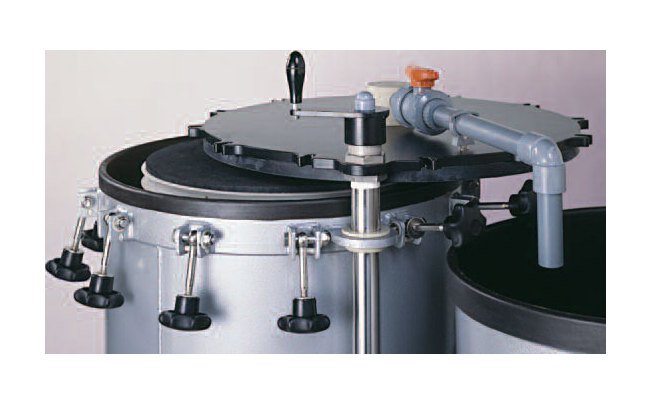

Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes. An air release valve positioned on the cover, is also used as the return line during pre-coating.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard.All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all CPVC construction.Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Pump Pump

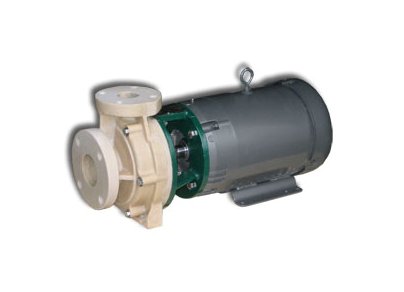

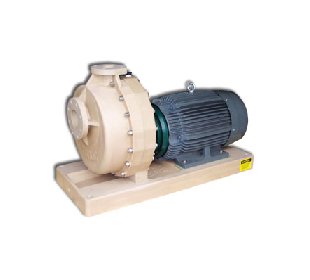

Fybroc fiberglass centrifugal pumps are standard. Mechanical seal options are single CRS- 35/B with silicon carbide faces or double water flush.
Slurry Tank Specifications Slurry Tank Specifications
Slurry tanks are mild steel construction with an interior of hard rubber (3 mm) and an exterior of corrosion resistant paint (2 coats). They are used to facilitate pre-coating and addition of activated carbon (if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media or maintenance. Pre-coating provides superior filtration and extends the life of the filter media.
Specifications Filter Media Diameter
19 "
Specifications Filtration Surface Area
178 ft²
Specifications Height
55 "
Specifications Length
90 "
Specifications Motor Tefc
5 HP Fybroc Series 1530 (Two Motors)
Specifications Number Of Filter Media
100
Specifications Open Pumping Capacity
26,000 gph
Specifications Precoated Flow Rate Filtering Capacity
18,000 gph
Specifications Pump Options
FYBROC 1530 Fiberglass Pump - Standard
Specifications Sludge Holding Capacity
4.77 ft³
Specifications Slurry Tank Option
WITH SLURRY TANK - Standard
Specifications System Connections Discharge
(2) 2" NPT (Female)
Specifications System Connections Suction
(2) 3" NPT (Female)
Specifications Weight
2100 lbs
Specifications Width
55 "
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
