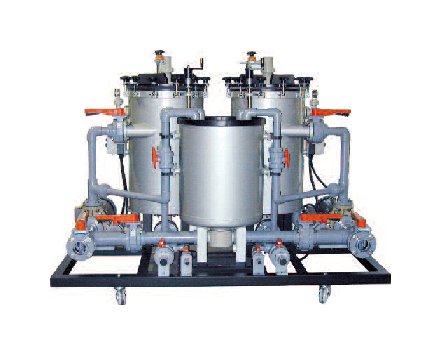

Mefiag Series 30000-HFD-SY Horizontal Disc Filtration System
Mefiag Series 30000-HFD-SY Horizontal Disc Filtration System
SKU:FIL-17604b
High-capacity horizontal disc filtration system with 30,000 gph flow rate and corrosion resistance for reliable performance.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Mefiag Series 30000-HFD-SY Horizontal Disc Filtration System
$12,999.99
Quantity: 1
Claim Your Seller Account
Mefiag Series 30000-HFD-SY Horizontal Disc Filtration System
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mefiag Series 30000-HFD-SY Horizontal Disc Filtration System is designed for high-capacity filtering needs, boasting a pre-coated flow rate of 30,000 gph and a filtration surface area of 300 ft². With a sludge holding capacity of 5.46 ft³, this system features cutting-edge horizontal disc technology for superior performance. Its corrosion-resistant construction, FRP pump, and choice of filter media make it a reliable choice for demanding applications. The system's compliance with industry standards ensures reliability and efficiency for both consumer and institutional buyers.
Product Specifications
Features Features
Flow rates to 30,000 GPHHorizontal disc technologyMaximum surface area (1 sq. ft. per 100 GPH!)Large sludge holding capacitySuperior corrosion resistanceFRP pump with choice of mechanical sealsTemperature to 190ºF (90ºC)Low disposal costChoice of cellulose, carbon/cellulose or reusable polypropylene filter mediaPowder coated steel frame with casters for easy handlingNEMA 4 water tight, corrosion resistant starterMechanical cover lifting device for easy access to filter packBottom plate and lifting rod for quick change of disc stack standard
Filter Filter
Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes. An air release valve positioned on the cover, is also used as the return line during pre-coating.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard.All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all CPVC construction.Suction of the pump is piped to permit flow from the solution tank, slurry tank, and the filter chamber.
Pump Pump

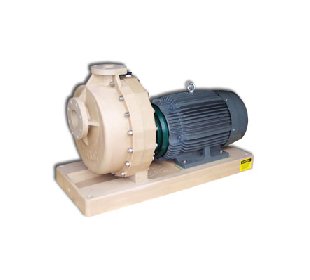

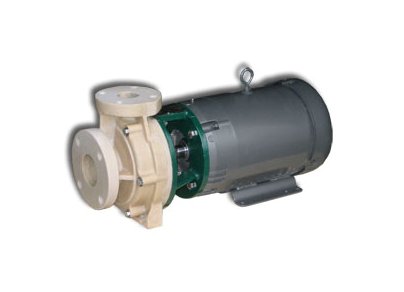

Fybroc fiberglass centrifugal pumps are standard. Mechanical seal options are single CRS- 35/B with silicon carbide faces or double water flush.
Slurry Tank Specifications Slurry Tank Specifications
Slurry tanks are mild steel construction with an interior of hard rubber (3 mm) and an exterior of corrosion resistant paint (2 coats). They are used to facilitate pre-coating and addition of activated carbon (if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media or maintenance. Pre-coating provides superior filtration and extends the life of the filter media.
Specifications Filter Media Diameter
22 "
Specifications Filtration Surface Area
300 ft²
Specifications Height
59 "
Specifications Length
104 "
Specifications Motor Tefc
10 HP Fybroc Series 1530 (Two Motors)
Specifications Number Of Filter Media
120
Specifications Open Pumping Capacity
36,000 gph
Specifications Precoated Flow Rate Filtering Capacity
30,000 gph
Specifications Pump Options
FYBROC 1530 Fiberglass Pump - Standard
Specifications Sludge Holding Capacity
5.46 ft³
Specifications Slurry Tank Option
WITH SLURRY TANK - Standard
Specifications System Connections Discharge
(2) 3" NPT (Female)
Specifications System Connections Suction
(2) 3" NPT (Female)
Specifications Weight
2400 lbs
Specifications Width
71 "

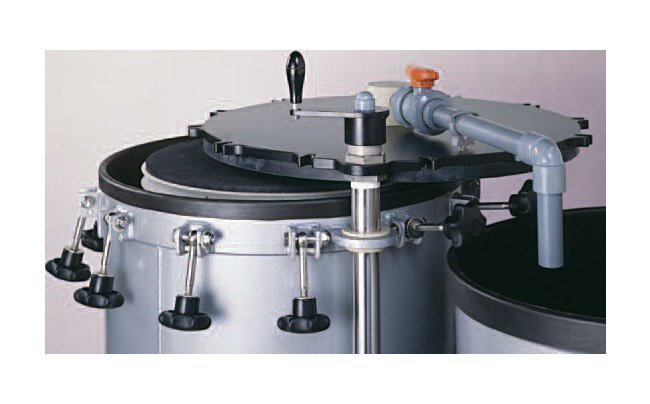

Vd Lid Assembly Vd Lid Assembly
VD Lid assembly is used to tighten down the disc stack verses the cover. (Standard)
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
