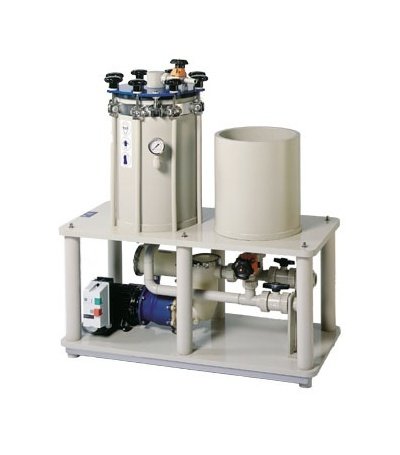

The Mefiag Series 4500-PPQ Horizontal Disc Filtration System is designed for high-efficiency filtration of nickel, copper, and zinc electrolytes. With a filtration surface area of 44 ft² and a sludge holding capacity of 92 in³, this system offers pre-coated flow rates up to 4,500 gph. Featuring all-polypropylene construction, a self-priming magnetic drive pump, and the innovative "Unitized Pack" disc assembly, this system ensures superior performance and easy maintenance. Ideal for plating tanks from 400 to 1,000 gallons, it operates at temperatures up to 180°F and meets stringent industry standards.
Product Specifications
Features And Benefits Features And Benefits
All polypropylene construction Self-priming magnetic drive pump "Unitized Pack" disc assembly Large sludge holding capacity Low disposal cost High efficiency Pre-coated flow rates to 4500 gph Temperatures to 180°F(82°C)
Filter Filter
The filter chamber is constructed of all polypropylene with bottom inlet and bottom discharge. Discharge is o-ring sealed. A powder coated support plate provides added strength. Chamberâs have side mounted inlet/outlet connections for closer mounting to the tank.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. An air release diaphragm valve is provided.A stainless steel pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Base is polypropylene with stainless steel channel structure and polypropylene feet. Casters are available upon request.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Self Priming Magnetic Drive Pump Self Priming Magnetic Drive Pum
A polypropylene, self-priming magnetic drive pump Model PMSP is furnished with a TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. The magnetic switch motor starter is housed in a liquid tight enclosure.
Slurry Tank Specifications Slurry Tank Specifications
The slurry tank is all polypropylene construction and is furnished with Model PPQ-SY units. Slurry tanks are used to facilitate pre-coating, addition of carbon (if required), and solution makeup. These are sized to store the complete capacity of the filter chamber during changing of the media or maintenance. Inlet/outlet connections are located at the end of the mounting base.
Specifications Approximate Crated Weight
670 lbs
Specifications Approximate Height
60 "
Specifications Approximate Length
43 "
Specifications Approximate Width
22 "
Specifications Filter Media Diameter
14 "
Specifications Filtration Surface Area
44 ft²
Specifications Hose Connection Discharge
1-1/2 in Outlet
Specifications Hose Connection Suction
2 in Inlet
Specifications Hose Length
20 ft
Specifications Manufacturer
Mefiag
Specifications Motor Tefc
3 hp
Specifications Number Of Filter Media
44
Specifications Open Pumping Capacity
5,400 gph
Specifications Precoated Flow Rate Filtering Capacity
4,500 gph
Specifications Pump Options
PPQ - Magnetic Self-Priming Pump - Standard | PPS - Mechanical Seal CRS-40-PP - No Extra Charge
Specifications Sludge Holding Capacity
92 in³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder

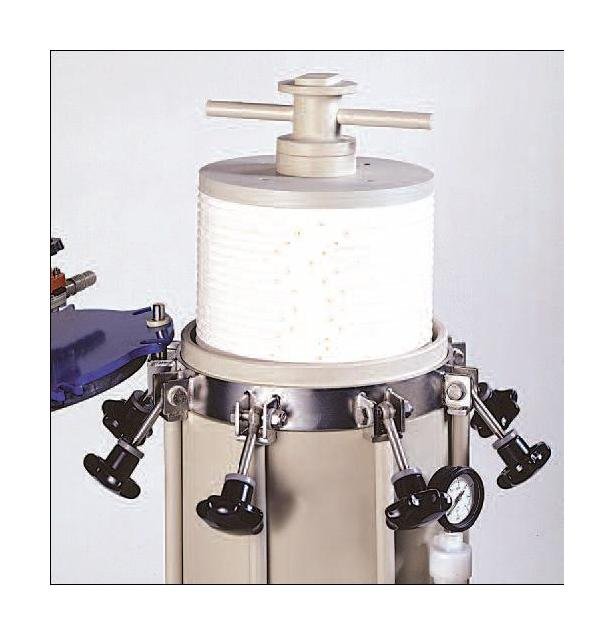

Unitized Pack Unitized Pack
A polypropylene, self-priming magnetic drive pump Model PMSP is furnished with a TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. The magnetic switch motor starter is housed in a liquid tight enclosure.
