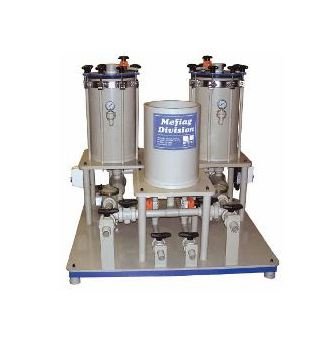

The Mefiag Series 9000 Horizontal Disc Filtration System offers a high-capacity, efficient solution for filtration needs. With a pre-coated flow rate of 9,000 gph and a self-priming magnetic drive pump, this system ensures reliable performance. Constructed with all polypropylene materials, it features a large sludge holding capacity and low disposal costs. Ideal for temperatures up to 180°F, this system meets institutional standards for quality and efficiency.
Product Specifications
Features And Benefits Features And Benefits
All polypropylene construction Self-priming magnetic drive pump "Unitized Pack" disc assembly Large sludge holding capacity Low disposal cost High efficiency Pre-coated flow rates to 9000 gph Temperatures to 180°F(82°C)
Filter Filter
The filter chamber is constructed of all polypropylene with bottom inlet and bottom discharge. Discharge is o-ring sealed. A powder coated support plate provides added strength. Chamberâs have side mounted inlet/outlet connections for closer mounting to the tank.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. An air release diaphragm valve is provided.A stainless steel pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Base is polypropylene with stainless steel channel structure and polypropylene feet. Casters are available upon request.
Piping Valves And Connections Piping Valves And Connections
Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Self Priming Magnetic Drive Pump Self Priming Magnetic Drive Pum
A polypropylene, self-priming magnetic drive pump Model PMSP is furnished with a TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. The magnetic switch motor starter is housed in a liquid tight enclosure.
Slurry Tank Specifications Slurry Tank Specifications
The slurry tank is all polypropylene construction and is furnished with Model PPQD-SY units. Slurry tanks are used to facilitate pre-coating, addition of carbon (if required), and solution makeup. These are sized to store the complete capacity of the filter chamber during changing of the media or maintenance. Inlet/outlet connections are located at the end of the mounting base.
Specifications Approximate Crated Weight
1300 lbs
Specifications Filter Media Diameter
14 "
Specifications Filtration Surface Area
88 ft²
Specifications Hose Connection Discharge
1-1/2 in Outlet
Specifications Hose Connection Suction
2 in Inlet
Specifications Hose Length
20 ft
Specifications Manufacturer
Mefiag
Specifications Motor Tefc
3 hp (Two Motors)
Specifications Number Of Filter Media
88
Specifications Open Pumping Capacity
9,600 gph
Specifications Precoated Flow Rate Filtering Capacity
9,000 gph
Specifications Pump Options
PPQ - Magnetic Self-Priming Pump - Standard | PPS - Mechanical Seal CRS-40-PP - No Extra Charge
Specifications Sludge Holding Capacity
1.84 in³
Specifications Slurry Tank Option
WITH SLURRY TANK - Standard
Unitized Pack Unitized Pack
A polypropylene, self-priming magnetic drive pump Model PMSP is furnished with a TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. The magnetic switch motor starter is housed in a liquid tight enclosure.
