Mefiag V-Series Oil Absorption Filters
Mefiag V-Series Oil Absorption Filters
SKU:FIL-e591eb
Efficiently remove oil and grease with Mefiag V-Series Oil Absorption Filters. Polypropylene construction ensures superior corrosion resistance. High oil absorbing capacity for longer degreasing bath lifetimes.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Mefiag V-Series Oil Absorption Filters
$3,999.99
Quantity: 1
Claim Your Seller Account
Mefiag V-Series Oil Absorption Filters
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

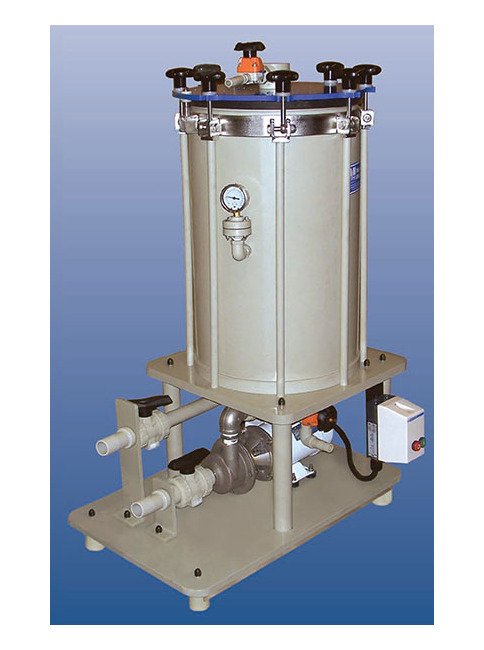

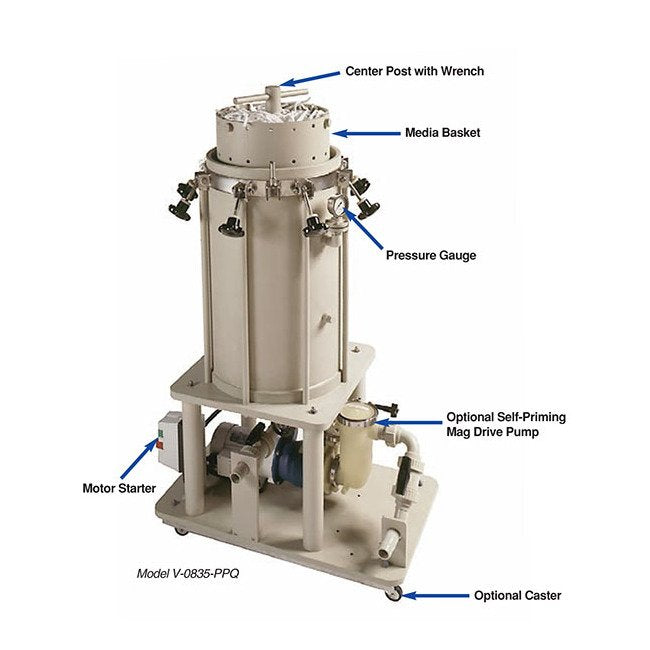

The Mefiag V-Series Oil Absorption Filters, available in models V-0810, V-0820, V-0835, and V-0860, are expertly engineered to remove oil and grease from various liquids such as cleaning solutions and wastewater. Made of durable polypropylene, these filtration systems ensure superior corrosion resistance. With a specialized perforated basket design, these filters optimize contact between the filter material and the liquid for efficient oil absorption. Equipped with a polypropylene slurry tank option and featuring hydrophobic meltdown polypropylene media, these filters offer a high capacity of 1:8-12 lbs, leading to extended degreasing bath lifetimes.
Product Specifications
Filter Filter
Polypropylene materials are used for the filter chamber, basket, piping and base. The powder coated cover uses EPDM packing and seals. Eyebolts are stainless steel with plastic hand wheels.Absorptive capacity of the media is 1:8-12. (This means that 1 lb. of oil absorbing filter material can absorb 8 to 12 lbs. of grease and dirt resulting in much longer lifetime of your degreasing baths).Bypass is prevented by means of an O-ring seal on the center post at the bottom of the filter chamber.
Media Specifications Media Specifications

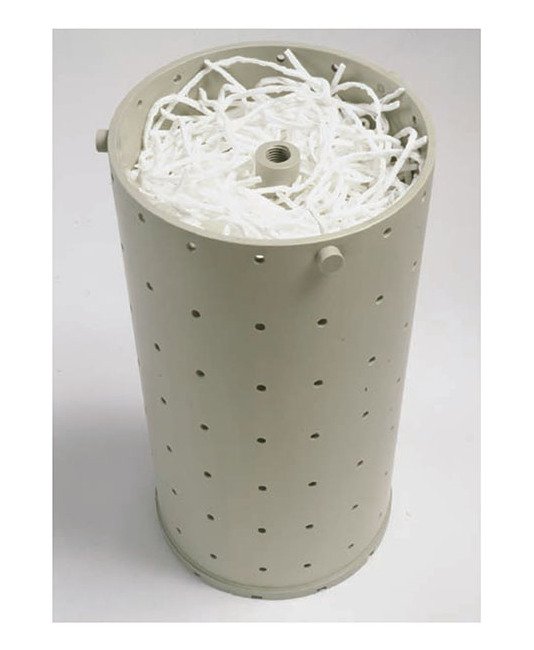

Mefiag Oil Media (Spaghetti) is Hydrophobic meltdown polypropylene media having best oil absorbing characteristics along with large surface area. Mefiag's oil absorbing media is available in 1, 2, 2.5 or 5 lb. bags for easy change out.
Optional Slurry Tank Optional Slurry Tank
The optional slurry tank is all polypropylene, sized to hold the full liquid capacity of the filter chamber. Slurry tanks offer these advantages: Reduce the risk of running the pump dryFacilitate the make-up and addition of chemicals to the treatment tankProvide for transfer of solution to make the changing of media easier
Specifications Approximate Height
46 "
Specifications Approximate Length
31 "
Specifications Approximate Width
16 "
Specifications Capacity
5 gpm
Specifications Manufacturer
Mefiag
Specifications Media
1.0 lbs
Specifications Piping
V-Series systems utilize all polypropylene piping and fittings with ball and diaphragm valves.
Specifications Pump
V-Series systems are provided with SS vertical or CRS - PP centrifugal pump with 1 HP motor being standard.
Specifications Pump Options
PPH - SS Horizontal Pump - Adder | PPI - SS Vertical Pump - Standard | PPM - Magnetic End Suction Pump- Adder | PPQ - Magnetic Self-Priming Pump - Adder | PPS - CRS Centrifugal Pump w/mech seal - Standard
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications Tefc Motor
1 hp
Specifications Weight
750 lbs
