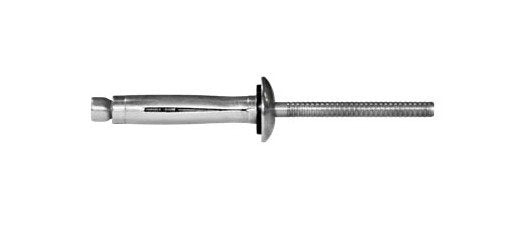

Mega Bulb 22.0mm Aluminum Rivet - Multi-Grip Fastener
Mega Bulb 22.0mm Aluminum Rivet - Multi-Grip Fastener
SKU:MEG-a6d4f9
High-performance 22.0mm aluminum rivet for secure joint formation in vehicles. Neoprene washer included.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Mega Bulb 22.0mm Aluminum Rivet - Multi-Grip Fastener
$49.99
Quantity: 1
Claim Your Seller Account
Mega Bulb 22.0mm Aluminum Rivet - Multi-Grip Fastener
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

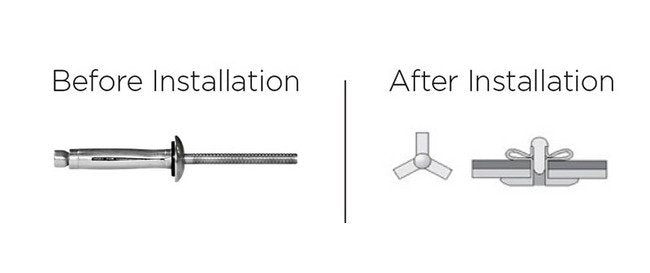

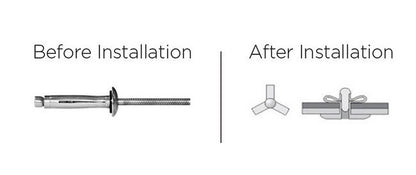

Enhance your vehicle's structural integrity with the Mega Bulb 22.0mm Aluminum Rivet. Made from high-quality Aluminum Alloy ALmg 5.0, this rivet offers a secure joint formation with its split tail design. With a Nominal Shear Force of 316 kgf and Nominal Tensile Force of 203 kgf, it ensures durability and reliability. Ideal for various components, it includes a Neoprene washer for added protection.
Product Specifications
Nominal Dimensions Body Length
22.0 mm | 0.866 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.15 to 5.35 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
11.3 mm | 0.445 in
Nominal Dimensions Head Thickness
2.15 mm | 0.085 in
Nominal Dimensions Mandrel Diameter
2.6 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.3 mm | 0.051 in
Nominal Forces Nominal Shear Force
316 kgf | 695 lbf
Nominal Forces Nominal Tensile Force
203 kgf | 447 lbf
Note Note
Available with Neoprene washer
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 5.0 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1000
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
