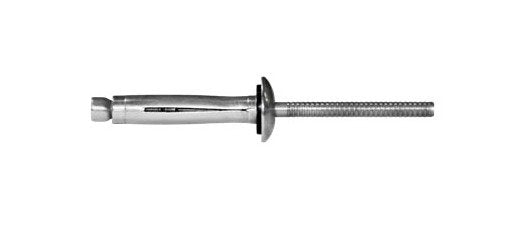

Mega Bulb 24.5mm Aluminum Rivet

Name: Mega Bulb 24.5mm Aluminum Rivet
Brand: Ornit USA
SKU: MEG-fa76cb
Price: 49.99 USD
Availability: OutOfStock

SKU:MEG-fa76cb

Secure multi-grip Aluminum Rivet with split tail for durable joints. Meets institutional standards.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Mega Bulb 24.5mm Aluminum Rivet by Ornit is a high-quality, multi-grip fastener designed for secure joints in various components. Made of Aluminum Alloy ALmg 5.0, it ensures durability and reliability. With a split tail and a large blind side area, this rivet offers exceptional performance. It meets stringent institutional procurement standards, making it ideal for vehicle assembly and other industrial applications.

Product Specifications

Nominal Dimensions Body Length

24.5 mm | 0.965 in

Nominal Dimensions Diameter

4.8 mm | 3/16 in

Nominal Dimensions Drillhole Size

5.15 to 5.35 mm | 0.196 to 0.208 in

Nominal Dimensions Head Diameter

11.3 mm | 0.445 in

Nominal Dimensions Head Thickness

2.15 mm | 0.085 in

Nominal Dimensions Mandrel Diameter

2.6 mm | 0.103 in

Nominal Dimensions Maximum Grip Range

9.5 mm | 0.374 in

Nominal Dimensions Minimum Grip Range

4.8 mm | 0.189 in

Nominal Forces Nominal Shear Force

316 kgf | 695 lbf

Nominal Forces Nominal Tensile Force

203 kgf | 447 lbf

Note Note

Available with Neoprene washer

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 5.0 or Equivalent

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

1000

Technical Specs Mandrel Finish

Natural

Technical Specs Mandrel Material

Aluminum Alloy 7075 or Equivalent

Mega Bulb 24.5mm Aluminum Rivet
