Mega-Orlock 6.8 Series Triple Locking Rivet
Mega-Orlock 6.8 Series Triple Locking Rivet
SKU:MEG-6b98d1
Enhance chassis strength with Mega-Orlock® 6.8 Series Triple Locking Rivet. Patented triple-locking system for superior performance. Ideal for rail transport applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Mega-Orlock 6.8 Series Triple Locking Rivet
$149.99
Quantity: 1
Claim Your Seller Account
Mega-Orlock 6.8 Series Triple Locking Rivet
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

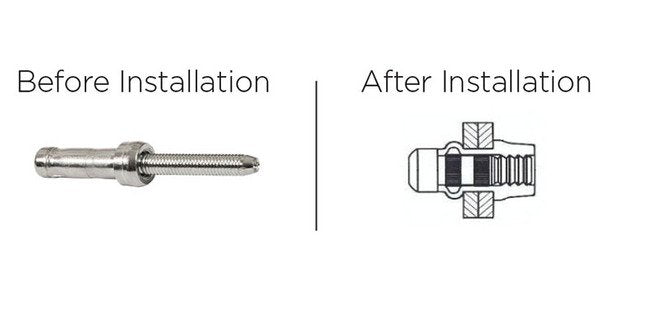

The Mega-Orlock® 6.8 Series 21.0mm Body Length Triple Locking System Head Rivet by Mega-Orlock® | Ornit provides unparalleled strength for chassis assembly. With a patented triple-locking system and ultra-high shear & tensile forces, this rivet ensures exceptional performance and durability. Crafted from low carbon steel with zinc-plated chromium VI-free passivation, it meets the most rigorous industry standards, making it ideal for rail transport applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Rail Transport Application
Rail Transport - TrainsThe Mega Orlock® fastener, Ornit's latest innovation, features a patented triple-locking system, designed to provide ultra-high shear and tensile forces. This unique product helps to reduce stock inventories.
Nominal Dimensions Body Length
21.0 mm | 0.827 in
Nominal Dimensions Diameter
8.6 mm | 5/16 in
Nominal Dimensions Drillhole Size
8.9 to 9.3 mm | 0.350 to 0.366 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
6.9 mm | 0.272 in
Nominal Dimensions Mandrel Diameter
5.8 mm | 0.228 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
8.0 mm | 0.315 in
Nominal Forces Nominal Shear Force
3200 kgf | 7056 lbf
Nominal Forces Nominal Tensile Force
2160 kgf | 4763 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Mega-Orlock® | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Triple Locking System
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
