Mega-Orlock 6.8 Triple Locking Rivet
Mega-Orlock 6.8 Triple Locking Rivet
SKU:MEG-3a2452
Unmatched strength: Mega-Orlock 6.8 Triple Locking Rivet for high-stress chassis assembly in rail transport. Ultra-durable with patented locking system.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Mega-Orlock 6.8 Triple Locking Rivet
$189.99
Quantity: 1
Claim Your Seller Account
Mega-Orlock 6.8 Triple Locking Rivet
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

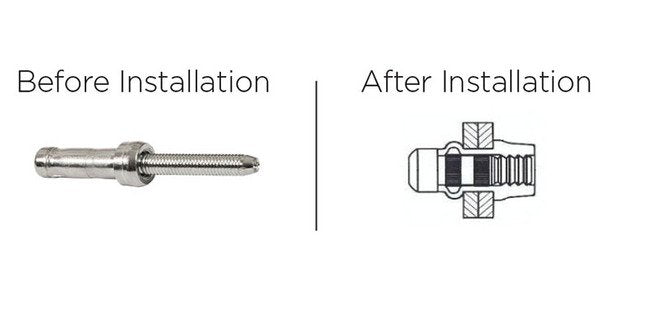

Experience unparalleled strength and durability with the Mega-Orlock 6.8 Series Triple Locking Rivet. Engineered with a patented triple-locking system, this rivet offers ultra-high shear and tensile forces, making it ideal for chassis assembly in demanding applications like rail transport. Constructed with low carbon steel and zinc plated chromium VI free passivation, it ensures long-lasting performance and corrosion resistance. With a body length of 24.0mm and impressive grip range, this rivet guarantees secure fastening and reduced stock inventories.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Rail Transport Application
Rail Transport - TrainsThe Mega Orlock® fastener, Ornit's latest innovation, features a patented triple-locking system, designed to provide ultra-high shear and tensile forces. This unique product helps to reduce stock inventories.
Nominal Dimensions Body Length
24.0 mm | 0.945 in
Nominal Dimensions Diameter
8.6 mm | 5/16 in
Nominal Dimensions Drillhole Size
8.9 to 9.3 mm | 0.350 to 0.366 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
6.9 mm | 0.272 in
Nominal Dimensions Mandrel Diameter
5.8 mm | 0.228 in
Nominal Dimensions Maximum Grip Range
14.3 mm | 0.563 in
Nominal Dimensions Minimum Grip Range
11.1 mm | 0.437 in
Nominal Forces Nominal Shear Force
3200 kgf | 7056 lbf
Nominal Forces Nominal Tensile Force
2160 kgf | 4763 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Mega-Orlock® | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Triple Locking System
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
