Mega-Orlock® 6.8 Triple-Locking Head Rivet

Mega-Orlock® 6.8 Triple-Locking Head Rivet

MEG-a951e4

Explore the Mega-Orlock® 6.8 Triple-Locking Head Rivet for ultra-high strength chassis assembly. Patented design, low carbon steel body, and corrosion-resistant finish.

$49.99
$49.99
Sale

Initiate Order

Mega-Orlock® 6.8 Triple-Locking Head Rivet

Mega-Orlock® 6.8 Triple-Locking Head Rivet

$49.99

Quantity: 1

Claim Your Seller Account

Mega-Orlock® 6.8 Triple-Locking Head Rivet

Mega-Orlock® 6.8 Triple-Locking Head Rivet

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

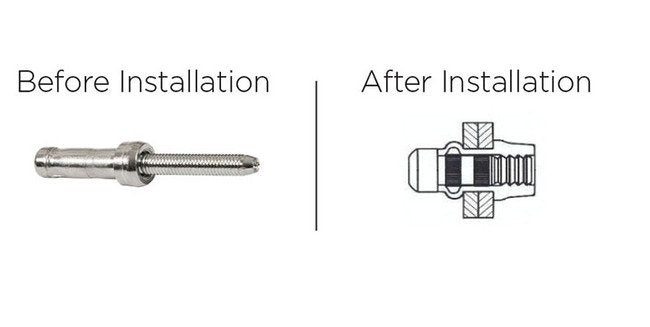

The Mega-Orlock® 6.8 Triple-Locking Head Rivet is a cutting-edge solution designed by Ornit for high-strength chassis assembly needs. Featuring a patented triple-locking system, this rivet ensures ultra-high shear and tensile forces. With a body made of low carbon steel and a zinc-plated chromium VI free passivation finish, it offers exceptional durability and corrosion resistance. The 22.5mm body length and precise dimensions make it perfect for various applications, including rail transport. Reduce stock inventories with this innovative rivet that meets stringent industry standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Rail Transport Application
Rail Transport - TrainsThe Mega Orlock® fastener, Ornit's latest innovation, features a patented triple-locking system, designed to provide ultra-high shear and tensile forces. This unique product helps to reduce stock inventories.
Nominal Dimensions Body Length
22.5 mm | 0.886 in
Nominal Dimensions Diameter
6.8 mm | 1/4 in
Nominal Dimensions Drillhole Size
7.03 to 7.43 mm | 0.277 to 0.292 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
5.60 mm | 0.220 in
Nominal Dimensions Mandrel Diameter
4.5 mm | 0.178 in
Nominal Dimensions Maximum Grip Range
15.1 mm | 0.594 in
Nominal Dimensions Minimum Grip Range
10.4 mm | 0.409 in
Nominal Forces Nominal Shear Force
2315 kgf | 5100 lbf
Nominal Forces Nominal Tensile Force
1475 kgf | 3250 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Mega-Orlock® | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Triple Locking System
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
