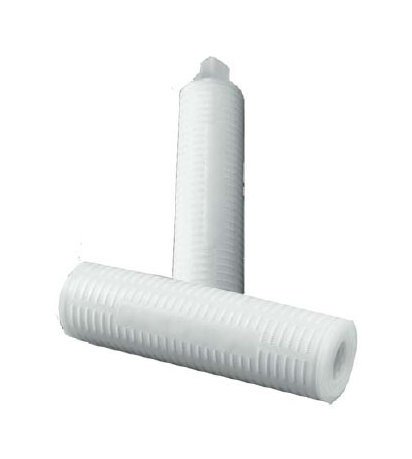

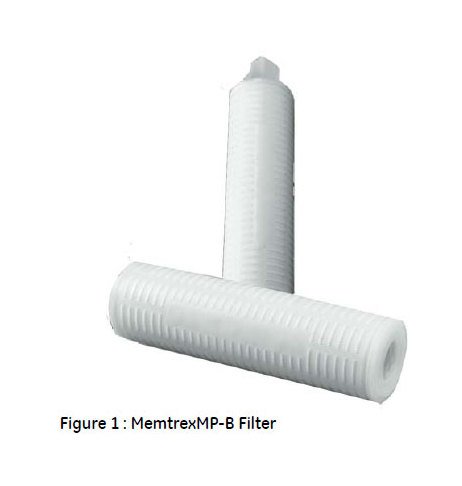

Memtrex MP-B (MMP-B) filters (Figure 1) offer a PES membrane specifically designed for beverage applications. MMP-B cartridge filters exhibit the low protein-binding, high flow rates and high through-puts that are crucial for today's demanding beverage process. Every filter is 100% integrity tested. As industry standards rise and new precautions are taken to ensure product purity, you can rely on GE Water & Process Technologies MMP-B filters to provide reliable filtration for all your beverage applications-bottled water, beer, wine, liquor, fruit juices, and fountain drinks.The MMP-B filter is just one example of our strong commitment to the beverage industry. Our complete portfolio includes filters for every stage of processing, and we offer custom solutions for your unique applications. GE is your complete source for filters, crossflow membranes, housings, and other filtration equipment.
Product Specifications
Additional Information 0
Memtrex MP-B filters may be autoclaved or in situ steam sterilized (up to 257ºF [125ºC] 30-minute cycles) for a maximum accumulated exposure of 10 hours. Alternatively, the filters may be sanitized with compatible chemical agents.GE certifies that the materials contained in its Memtrex MP-B pleated filters meet US FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact GE technical services. Memtrex MP-B filters meet the test criteria for USP Class VI-121ºC Plastics.Aqueous extracts from Memtrex MP-B filters contain less than 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues. GE Filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.

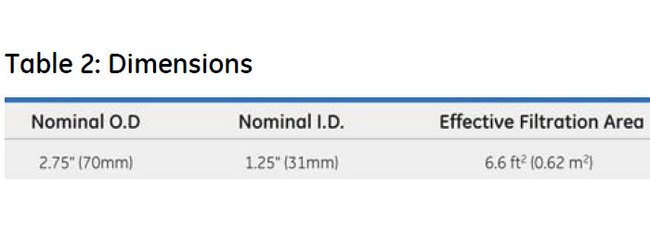

Dimensions Effective Filtration Area
7 ft² | 1 m²
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0

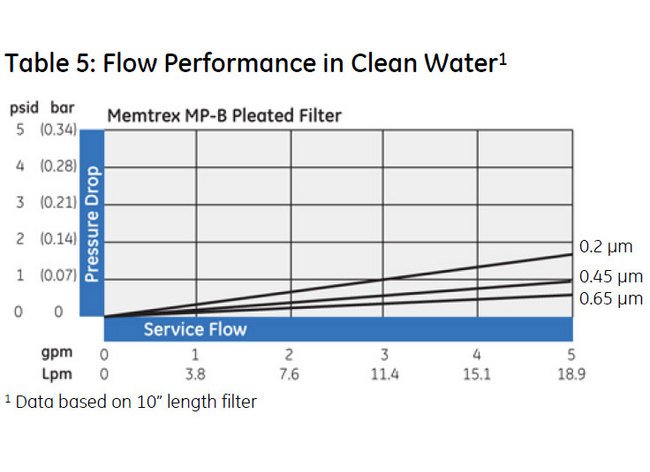

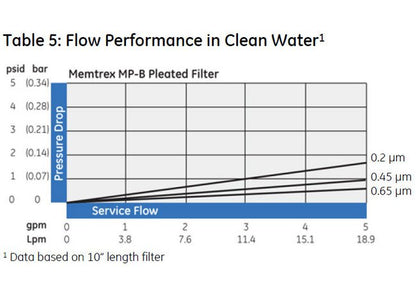

Memtrex MP-B filters are available the following absolute pore size micron ratings: 0.2, 0.45 and 0.65 µm. Tables 1, 2, 3, 4 and 5 show further details on materials of construction, dimensions, operational limits, integrity testing and flow performance.

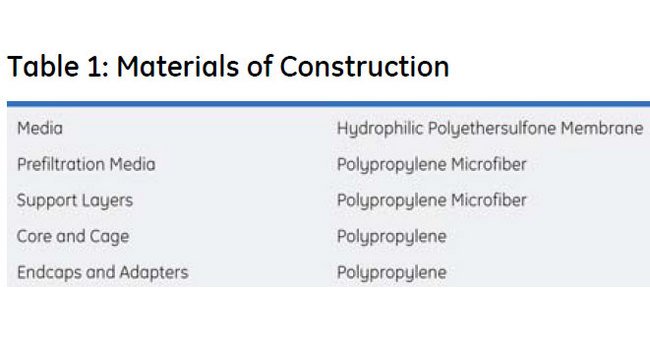

MATERIALS OF CONSTRUCTION CORE AND CAGE
Polypropylene
Materials Of Construction Endcaps And Adapters
Polypropylene
Materials Of Construction Media Material
Hydrophilic Polyethersulfone Membrane
Materials Of Construction Prefiltration Media Material
Polypropylene Microfiber
Materials Of Construction Support Layers
Polypropylene Microfiber

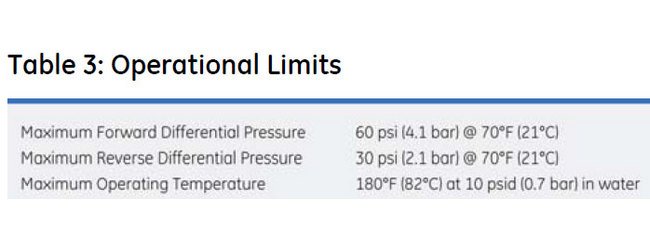

Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 10 Psid 07 B
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psi | 2.1 bar
Specifications Absolute Micron Rating
0.45 µm
Specifications Elastomer Material
Buna-N | EPOM | Silicone | Viton
Specifications End 1 Adapter
226 O-Ring
Specifications End 2 Adapter
213 O-Ring
Specifications Grade
Beverage

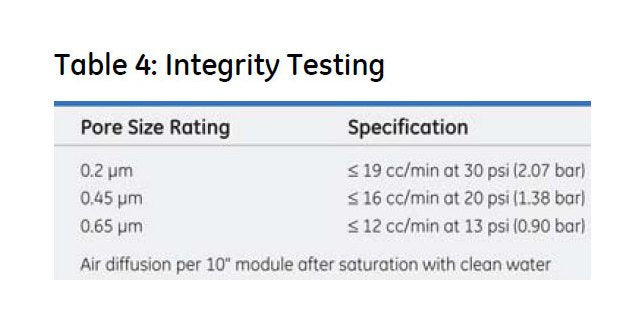

Specifications Integrity Testing
≤16 cc/min at 20 psi | ≤16 cc/min at 1.38 bar
Specifications Nominal Cartridge Length
10 in | 25.4 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries.
Specifications Type
MMP
Applications 0
Memtrex-MP-B filters are specifically designed for beverage filtration. Typical applications include final filtration of:WineBeerFruit JuicesBottled Water
